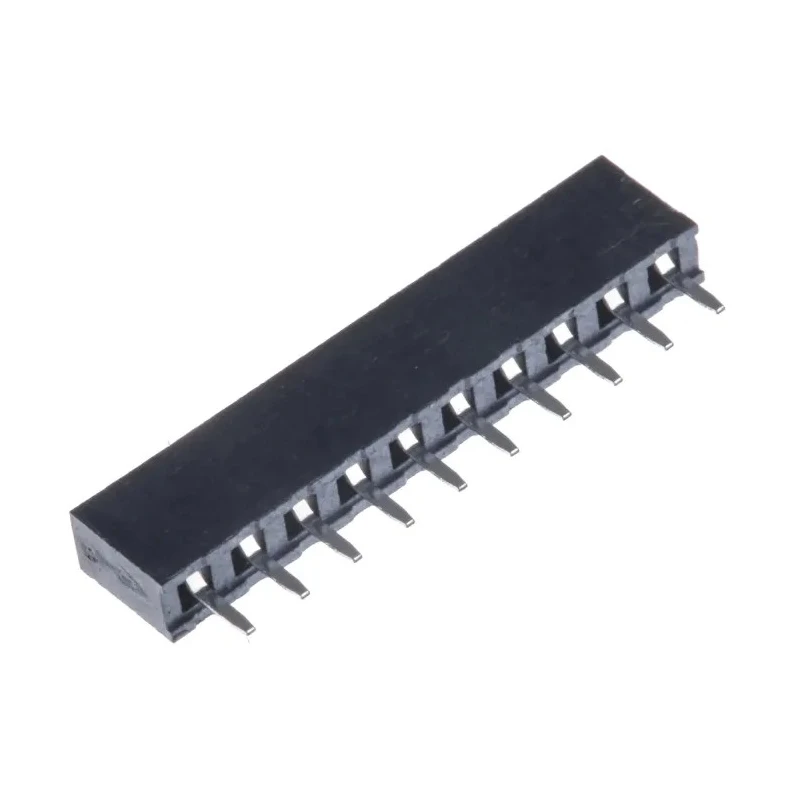

HARWIN M22 Series Straight Through Hole PCB Socket, 10-Contact, 1 Row, 2 mm Pitch, 12A Current, 500V M22-7131042
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | HARWIN |
| Orientation | Straight |
| Current | 12A |
| Model | M22-7131042 |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | M22 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- The connector features a fine 2 mm pitch for increased PCB density and height restrictions.
- Made with high temperature Liquid Crystal Polymer housings that are UL94V-0 compliant.
- Gold plated dual beam bronze contacts provide excellent electrical connection and reliability.
- Supports up to 12A current and 500V voltage rating.
- Designed for through-hole mounting with solder termination and straight orientation.
- Operates reliably between -25°C to 105°C temperature range.
- Suitable for embedded PCs, motherboards, industrial monitoring, consumer electronics, and communication devices.
- Supports up to 300 mating operations ensuring long service life.
Product Description
HARWIN M22-7131042 is a high-quality straight through hole PCB Socket with 10 contacts arranged in a single row, featuring a 2 mm pitch designed specifically for board-to-board connector systems. This connector offers a compact and robust solution for increasing PCB density and addressing height limitation challenges in electronic assemblies.
The housing is constructed from UL94V-0 rated liquid crystal polymer, providing high temperature resistance and compatibility with standard reflow soldering processes. The socket contacts are made of bronze with hard gold plating, ensuring superior electrical conductivity and resistance to wear.
Rated for a current of up to 12A per contact and voltage up to 500V, this connector performs reliably across a wide temperature range from -25°C to 105°C, meeting the demands of diverse industrial and commercial applications including consumer electronics, communication equipment, drives, controls, and embedded computing platforms.
The mechanism featuring dual beam contacts allows for up to 300 mating cycles, enhancing the connector's durability and lifecycle. Its through-hole solder termination and straight orientation make it suitable for traditional PCB assembly techniques requiring strong mechanical and electrical integrity.
Fine 2 mm pitch optimizes PCB space utilization. UL94V-0 high temperature liquid crystal polymer housings. Gold plated bronze dual beam contacts improve connection quality. High current (12A) and voltage (500V) ratings. Through-hole, straight orientation, solder termination.
Wide operating temperature range: -25°C to 105°C. Up to 300 mating operations for durability. Ideal for industrial, commercial, and consumer electronics applications.
This product is an industry-standard M22 series PCB Socket highly recommended for use in electronics manufacturing, industrial monitoring systems, and various embedded computing modules where reliability and compactness are critical.
Explore more electronics components and connectors in the EnvMart collection for your industrial and commercial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a voltage rating of 500V.
It supports a maximum current of 12A per contact.
This connector features a solder termination type.
The contacts are arranged with a pitch size of 2 mm.
The housing is made from liquid crystal polymer, and the contacts are bronze with gold plating.
It operates reliably within a temperature range of -25°C to 105°C.
This model features 10 contacts arranged in a single row.
It has a straight orientation for through-hole mounting.
It is designed to support up to 300 mating operations.
It is suitable for embedded PCs, motherboards, industrial monitoring, consumer electronics, and communication devices.
The HARWIN M22-7131042 is manufactured in India.
It is designed for board-to-board connector systems.
