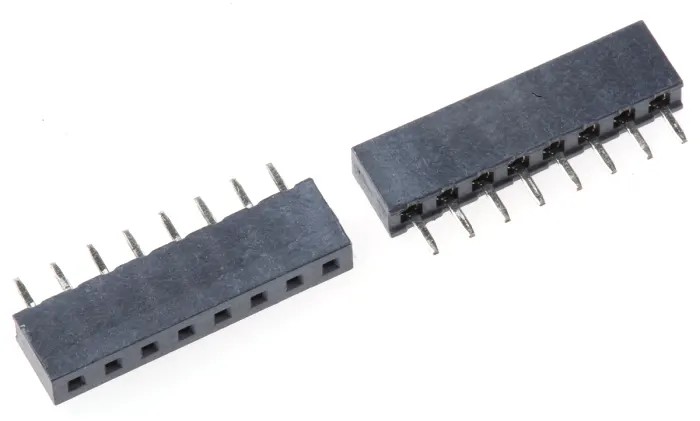

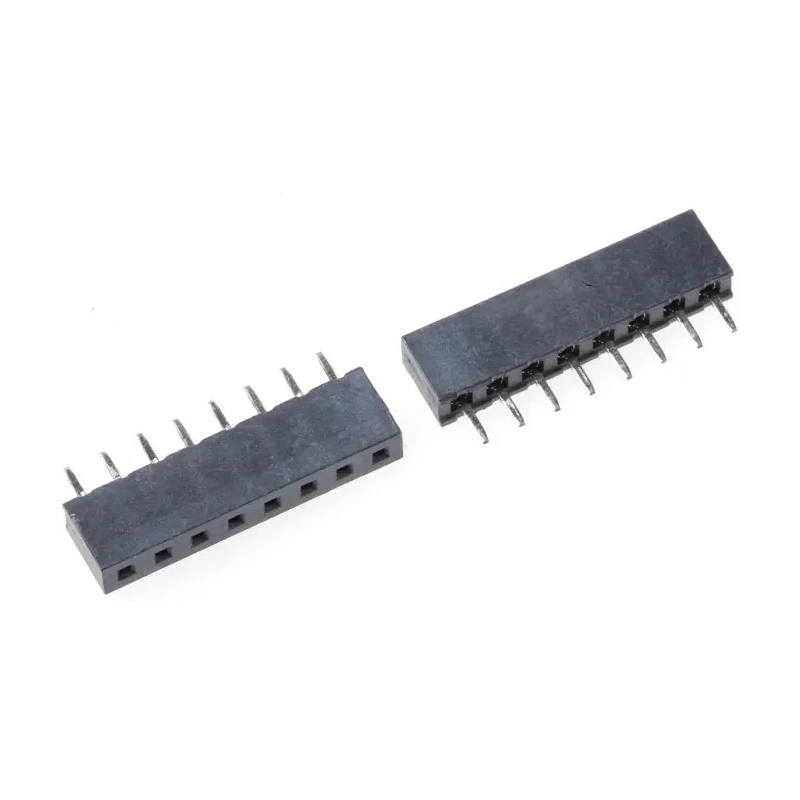

HARWIN M22 Series Straight Through Hole PCB Socket 8-Contact 1 Row 2 mm Pitch Solder M22-7130842
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | HARWIN |
| Orientation | Straight |
| Current | 12A |
| Model | M22-7130842 |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | M22 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 8 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- The socket features a compact design with high temperature thermoplastic housings for durability.
- It supports a current rating of up to 12A per contact for reliable power handling.
- Gold-plated bronze contacts provide excellent electrical connection and corrosion resistance.
- The connector is constructed with liquid crystal polymer housing rated UL94V-0 for high temperature resistance.
- Suitable for operating temperatures from -25°C to 105°C, ensuring performance in harsh environments.
- The connector is designed for through hole mounting, ensuring secure installation on printed circuit boards.
- Its single row configuration with an 8-contact layout supports increased PCB density and height restrictions.
- This series supports up to 300 mating cycles, providing long-term reliability.
Product Description
HARWIN M22-7130842 PCB Socket is a high-quality, straight through hole connector engineered for industrial, electronics manufacturing, and embedded systems applications. It features an 8-contact, 1-row design with a fine 2 mm pitch ideal for dense PCB layouts and board-to-board connections.
The connector housing is made from UL94V-0 rated Liquid Crystal Polymer, providing excellent thermal stability during reflow soldering processes and operational durability up to 105°C. The bronze contacts are gold plated and dual beam, enhancing electrical reliability and enabling up to 300 mating cycles without degradation.
Designed for a current rating of 12A per contact and a voltage rating of 500V, this socket is well suited for power and signal applications in consumer electronics, communications equipment, industrial control systems, and personal computing devices. Its female contact gender and solder termination type provide versatile interfacing options in complex assemblies.
The straight orientation and through hole mounting type ensure secure PCB attachment and reliable mechanical performance, meeting the demands of high-density embedded motherboard designs and large electronic systems.
The socket supports fine 2 mm pitch for compact design. High temperature thermoplastic housing ensures durability. Gold plated bronze dual beam contacts enhance electrical connection. Suitable for operating temperature range of -25°C to 105°C.
Rated for 12A current and 500V voltage for varied applications. Through hole mounting provides strong PCB retention. Designed for up to 300 mating operations. Industry standard M22 series for board-to-board connections.
This connector series is widely used across industrial, communications, consumer electronics, and computing sectors. Its reliable design makes it suitable for manufacturing, electronics assembly, laboratory instrumentation, and automation systems.
