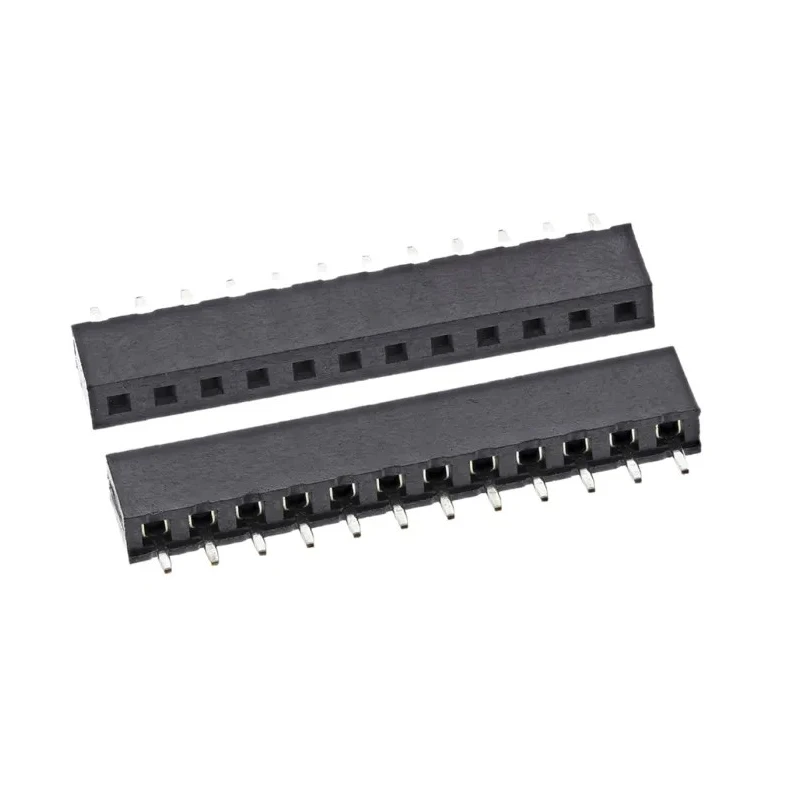

HARWIN M22 Series Straight Through Hole PCB Socket, 12-Contact, 1 Row, 2 mm Pitch, 12A Current, 500V Rated M22-7131242

HARWIN M22-7131242 is a premium quality straight through hole PCB socket connector with 12 female contacts arranged in a single row with a precise 2 mm pitch. This connector is engineered for board-to-board electrical connections requiring reliable and compact interconnect solutions.

The socket housing is made from UL94V-0 rated liquid crystal polymer, providing exceptional resistance to high temperatures and enabling standard reflow soldering processes. The bronze contacts are gold-plated with a dual-beam design to ensure robust electrical connectivity and long service life.

This PCB Socket supports a continuous current of 12 amperes per contact and a maximum voltage rating of 500 volts, making it suitable for demanding electronic systems. It is designed for through hole mount applications and can endure operating temperatures between -25°C and 105°C, accommodating a wide range of industrial and commercial use cases.

With up to 300 mating cycles, this socket guarantees durability and performance over long-term usage. Applications include embedded computers, motherboards, industrial monitoring equipment, communication devices, and consumer electronics, where space-saving and reliable electrical connections are paramount.

Liquid crystal polymer housing rated UL94V-0 for high temperature resistance. Gold-plated bronze female contacts for enhanced conductivity and durability. 12 contacts arranged in a single row with 2 mm pitch. Current rating up to 12A and voltage rating of 500V.

Through hole mount type ensuring secure PCB attachment. Operational temperature range from -25°C to 105°C. Compact design for high-density PCB layouts. Suitable for industrial, consumer electronics, and communication applications.

Up to 300 mating operations ensure long service life. Explore more connectors and PCB components at EnvMart for your electronics manufacturing and prototyping needs.
