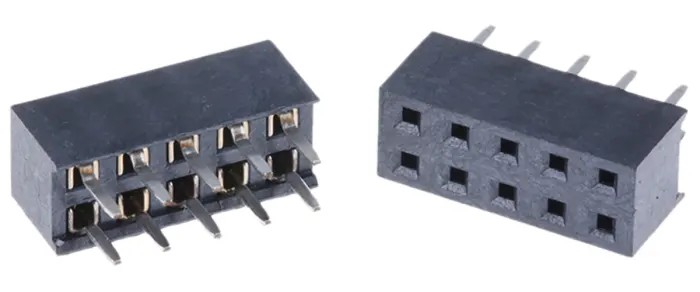

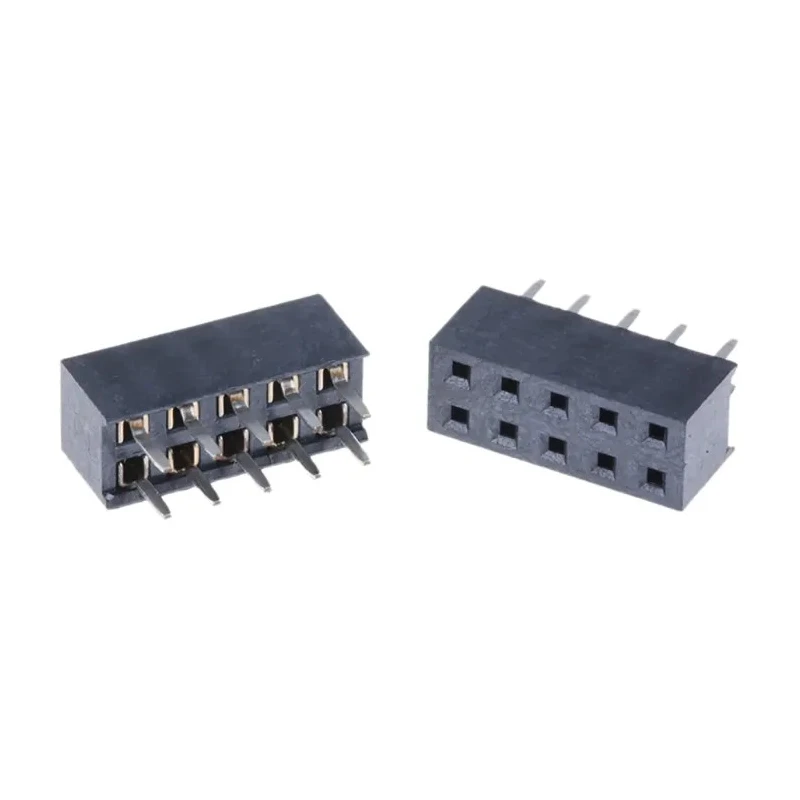

HARWIN M22 Series Straight Through Hole PCB Socket, 10-Contact, 2 Row, 2 mm Pitch, 12A Current, 500V, Liquid M22-7140542

HARWIN M22-7140542 PCB Socket is a high-quality, straight through hole connector featuring 10 contacts arranged in 2 rows with a 2 mm pitch. It is engineered for board-to-board applications requiring reliable electrical performance with a current rating of 12A and voltage rating of 500V. The socket's housing is made from UL94V-0 rated Liquid Crystal Polymer, providing excellent thermal resistance up to 105°C and compatibility with reflow soldering processes.

The female contacts are manufactured from bronze and plated with gold, utilizing a dual beam design that enhances electrical connectivity and extends service life for up to 300 mating cycles. This PCB socket supports through-hole mounting with solder termination, ensuring robust mechanical and electrical connections.

This connector series is ideal for use in embedded PCs, motherboards, communication devices, industrial control systems, and consumer electronics, making it versatile across multiple industrial and commercial applications. Operating temperature ranges from -25°C to 105°C, enabling use in diverse environmental conditions.

The M22 series provides a compact footprint compatible with high-density PCB layouts and height-restricted designs. While the product meets fundamental standards for PCB connectors, no specific certifications are attached.

Features a fine 2 mm pitch for high-density PCB designs. Compact, high temperature liquid crystal polymer housing rated UL94V-0. Dual beam gold plated contacts for improved electrical connection and reliability. Supports up to 300 mating operations for long durability.

Solder termination suitable for through-hole mounting applications. Designed for operating temperatures from -25°C to 105°C. Board-to-board connector system with female bronze contacts. Suitable for consumer electronics, industrial monitoring, and embedded systems.

Complies with industry standards for PCB sockets without additional certifications. Highly reliable contact plating and material ensuring consistent performance.

This product is part of EnvMart’s PCB Sockets category, ideal for professionals seeking dependable connectors for electronic manufacturing, prototyping, and industrial system integration.
