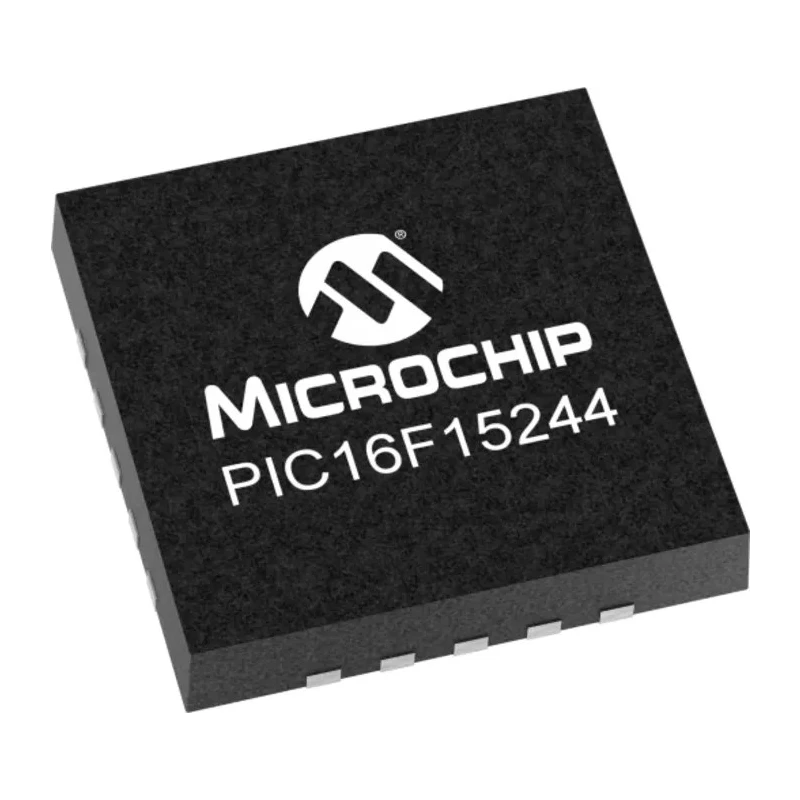

Microchip 8 bit PIC16 Microcontroller 32 MHz 7kB FLASH 20-Pin VQFN PIC16F15244-I/REB

Microchip PIC16F15244-I/REB is an 8 bit PIC microcontroller designed on the PIC16 series platform, delivering up to 32 MHz clock frequency, and equipped with 7kB FLASH program memory and 512-bit RAM. This compact microcontroller in a 20-Pin VQFN package suits a variety of low-power embedded applications in industrial, commercial, and consumer sectors.

The device supports key digital communication interfaces including ICSP, SPI, I2C, and EUSART, providing flexible connectivity for complex designs. It features 18 programmable I/O pins, 5-bit digital-to-analog converters (DACs), and 10-bit analog-to-digital converters (ADCs) enhancing analog and mixed-signal processing capabilities.

Microchip's PIC16F15244-I/REB operates over a wide supply voltage range from 2.5 V to 5.5 V and is rated for industrial temperature operation from -40°C to 85°C ensuring robust performance in harsh environments. Its RISC architecture ensures efficient instruction execution, complemented by integrated peripherals such as 2 timers for advanced timing control, and core independent peripherals enhancing versatility.

The microcontroller package measures 5.33 mm by 5.38 mm with a height of 1.98 mm, allowing for compact PCB layouts. It complies fully with RoHS directives, reflecting Microchip's commitment to environmental standards.

Typical applications include embedded system control, sensor interfacing, industrial automation, consumer electronics, and power management circuits where low power consumption and integrated peripheral functions are critical.

This microcontroller is built on PIC16 series architecture for reliable performance. It is housed in a compact 20-Pin VQFN package suitable for surface mounting. Supports multiple communication interfaces including ICSP, SPI, I2C, and EUSART.

Offers 18 programmable I/Os and 512-bit RAM for versatile embedded designs. Includes 5-bit DACs and 10-bit ADCs for analog signal interfacing. Operates at a supply voltage range from 2.5 V up to 5.5 V. Temperature range from -40°C to 85°C ensures industrial-grade reliability.

Design compliant with RoHS standards for environmental safety. Equipped with 2 timers and a RISC instruction set for efficient processing. Typical dimensions of 5.33 mm length, 5.38 mm width, and 1.98 mm height for compact PCB layouts.
