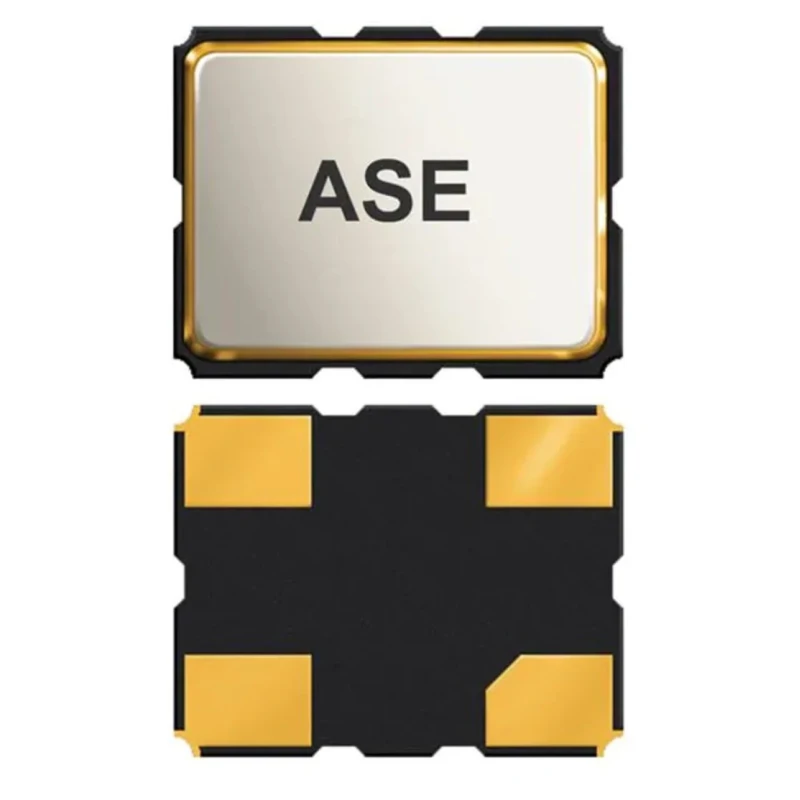

Abracon 27MHz Crystal Oscillator ±50 ppm CMOS 4-Pin Surface Mount ASE-27.000MHZ-LC-T

Name: Abracon 27MHz Crystal Oscillator ±50 ppm CMOS 4-Pin Surface Mount ASE-27.000MHZ-LC-T
Brand: Abracon
SKU: 340942
Price: 1.46 USD
Availability: InStock



Category Crystal Oscillator Brand Abracon Condition New

Specifications

Country of Origin	India
Brand	Abracon
Height	1.2mm
Length	3.2mm
Model	ASE-27.000MHZ-LC-T
Packaging	Tape & Reel
Width	2.5mm
Mount Type	Surface
Series	ASE
Maximum Operating Temperature	85°C
Output Frequency	27MHz
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	4
Maximum Supply Voltage	3.47V
Minimum Supply Voltage	3.14V
Oscillator Type	Crystal Oscillator
Output Level	CMOS

Key Features

Operates at a frequency of 27MHz with high frequency stability of ±50 ppm.
Features a CMOS output level with surface mount package type.
Supports minimum and maximum supply voltages of 3.14V and 3.47V respectively.
Designed to function within an operating temperature range of -40°C to 85°C.
Compact size with dimensions of 3.2mm length, 2.5mm width, and 1.2mm height.
Complies with RoHS standards ensuring environmental safety.
Low current consumption and low RMS jitter suitable for precise timing applications.
Tri-state function and low height make it appropriate for tight PCB layouts.

Product Description

Abracon ASE-27.000MHZ-LC-T 27MHz Crystal Oscillator is a precision SMD component designed for reliable frequency control in various electronic circuits. Featuring a ±50 ppm frequency stability and CMOS output, it operates within a voltage range of 3.14V to 3.47V, ensuring compatibility across diverse power supplies.

Its compact surface mount 4-pin package with dimensions of 3.2mm length, 2.5mm width, and 1.2mm height facilitates integration in space-constrained PCB layouts. The device supports operating temperatures from -40°C up to 85°C, making it suitable for industrial and commercial electronics exposed to wide thermal conditions.

Key characteristics include low RMS jitter of 5ps max and low current consumption, optimized for timing-critical applications such as CCD clocks in VTR cameras, PDAs, and wireless communications equipment. The tri-state function enhances flexibility in enabling or disabling the oscillator output.

The oscillator complies with RoHS and RoHS II directives, evidencing its environmental friendliness by restricting hazardous substances. Packaging on tape and reel streamlines automated PCB assembly processes, enabling efficient manufacturing.

Operates at 27MHz frequency with ±50 ppm stability. Adopts CMOS output level for noise immunity and efficient drive capability. Surface mount 4-pin package supports automated PCB assembly. Extended operating temperature range from -40°C to 85°C for varied environments.

Compact footprint: 3.2mm x 2.5mm x 1.2mm. Low RMS jitter and current consumption enhance performance. Supports tri-state control for versatile operation. Adheres to RoHS environmental compliance. Suitable for CCD clocks, wireless devices, PDAs, and laptop applications.

Supplied in tape and reel packaging for production efficiency.

This Abracon Crystal Oscillator serves critical roles in industrial, electronic manufacturing, communications, and consumer device sectors. It ensures accurate clock generation, signal stability, and compact integration in modern electronics. For further similar high-quality electronic components, explore the Electronics Components category at EnvMart.
