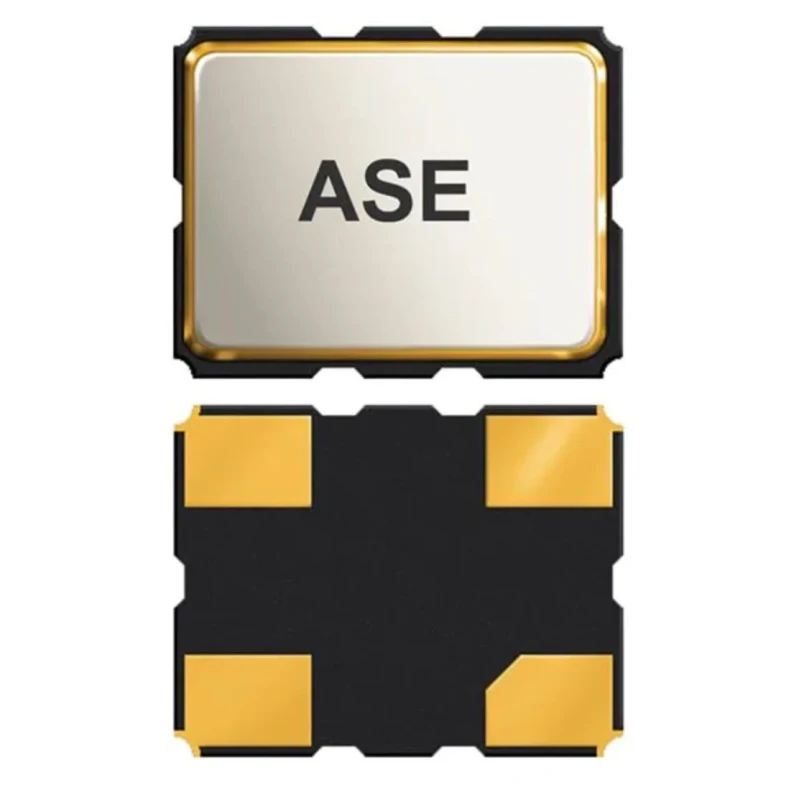

Abracon 27MHz Crystal Oscillator, ±50 ppm CMOS, 4-Pin Surface Mount ASE-27.000MHZ-LC-T

Free Delivery in India | Lowest Global Shipping Charges

Abracon 27MHz Crystal Oscillator, ±50 ppm CMOS, 4-Pin Surface Mount ASE-27.000MHZ-LC-T

Name: Abracon 27MHz Crystal Oscillator, ±50 ppm CMOS, 4-Pin Surface Mount ASE-27.000MHZ-LC-T
Brand: Abracon
SKU: 340938
Price: 1.35 USD
Availability: InStock



Category Crystal Oscillator Brand Abracon Condition New

Specifications

Country of Origin	India
Brand	Abracon
Height	1.2mm
Length	3.2mm
Model	ASE-27.000MHZ-LC-T
Packaging	Tape & Reel
Width	2.5mm
Mount Type	Surface
Series	ASE
Maximum Operating Temperature	85°C
Output Frequency	27MHz
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	4
Maximum Supply Voltage	3.47V
Minimum Supply Voltage	3.14V
Oscillator Type	Crystal Oscillator
Output Level	CMOS

Key Features

Operates with a supply voltage range from 3.14V to 3.47V.
Compact dimensions measuring 3.2mm length, 2.5mm width, and 1.2mm height.
Wide operating temperature range from -40°C to 85°C for reliable performance.
Designed with low current consumption and low RMS jitter suitable for CCD clock, PDA, and wireless applications.
Compliant with RoHS standards ensuring environmental safety.
Features a tri-state function enhancing circuit control.
Packaged in tape and reel for ease of automated assembly.
ASE series designed for SMD mounting and reflow soldering compatibility.

Product Description

Abracon ASE-27.000MHZ-LC-T is a precision 27MHz Crystal Oscillator featuring a CMOS output level and ±50 ppm frequency stability, suitable for various electronics applications. Its compact surface mount package supports modern manufacturing processes and allows for efficient PCB integration.

Operating over a voltage range of 3.14V to 3.47V, this oscillator maintains stable frequency output with a low current consumption profile, making it ideal for battery-powered and portable devices such as PDAs, wireless communication modules, and CCD clocks for VTR cameras.

The oscillator is designed to operate reliably within a broad temperature range from -40°C to 85°C, ensuring consistent performance in varied industrial and commercial environments. The low RMS jitter characteristic supports precision timing in sensitive circuits.

This product is RoHS compliant, reflecting adherence to environmental and safety standards, and is supplied in a tape and reel format to facilitate automated pick-and-place assembly in electronics manufacturing.

The 4-pin surface mount package measures 3.2mm in length, 2.5mm in width, and 1.2mm in height, contributing to compact device designs and space-saving instrumentation. The tri-state function allows for enhanced output control in complex PCB layouts.

Operates on a supply voltage between 3.14V and 3.47V. Frequency stability of ±50 ppm ensures accurate oscillation. RoHS compliant and suitable for SMD reflow soldering. Low current consumption and low RMS jitter. Suitable for industrial, communications, and consumer electronics applications.

Compact surface mount design for space-constrained devices. Wide operating temperature from -40°C to 85°C. Packaged in tape & reel format for automated production.

Ideal for use in industrial controls, wireless communication equipment, computing devices, and consumer electronics, the Abracon ASE series offers reliable performance and easy integration into existing designs.
