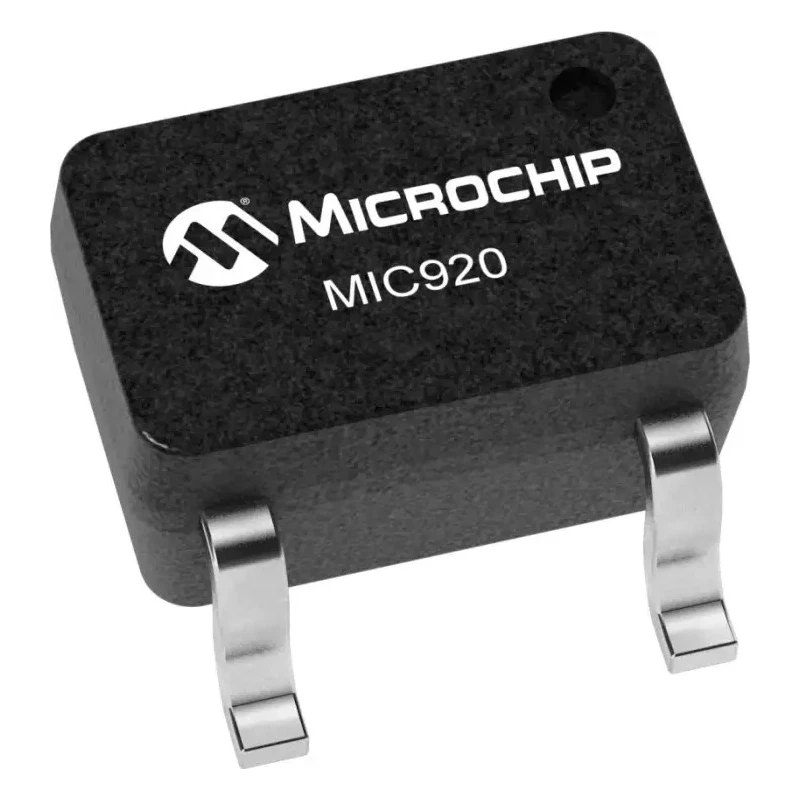

Microchip High-Speed Operational Amplifier 80 MHz Gain Bandwidth, 5-Pin SC-70 Package MIC920YC5-TR

Microchip MIC920YC5-TR is a high-speed operational amplifier featuring an 80 MHz gain bandwidth product and a unity gain stable architecture, housed in a compact 5-pin SC-70 surface mount package. With a typical supply current of just 550 μA and supply voltage range from ±2.5V to ±9V, this amplifier offers a balance of low power consumption and wide dynamic range suitable for a variety of electronic applications.

The device delivers excellent performance for amplifying small signals at high frequencies and is capable of driving capacitive loads without instability. Its high typical slew rate of 3000 V/μs supports fast transient response, making it ideal for precision analog signal processing in communications, instrumentation, test equipment, and other industrial electronics.

Physically compact with dimensions of 1.8mm length, 1.15mm width, and 0.8mm height, the MIC920YC5-TR is well suited for space-constrained PCB layouts. The operational amplifier operates reliably within an industrial temperature range from -40°C to +85°C and features low input bias and offset currents (0.26 μA and 0.04 μA respectively), contributing to high precision and low noise.

This device complies with RoHS standards, ensuring environmentally conscious manufacturing and usage. It is part of the MIC920 series, widely used in electronic components for power and signal amplification applications.

Gain bandwidth product of 80 MHz enables high-speed signal amplification. Unity gain stable design simplifies circuit implementation. Typical supply current of 550 μA ensures low power consumption. Wide supply voltage range from ±2.5V to ±9V supports versatile applications.

Capable of driving any capacitive load with stability. Typical slew rate of 3000 V/μs enhances transient response. Small SC-70 surface-mount package dimensions of 1.8mm x 1.15mm x 0.8mm. Operating temperature range from -40°C to +85°C for industrial reliability.

Low input bias current and offset current for precision performance. Complies with RoHS standards for environmental safety.

This Operational Amplifier suits industrial, laboratory, telecommunications, and precision instrumentation applications, offering robust performance in compact form factors. Discover more high-performance amplifiers in the Electronics & Electricals category on EnvMart for diverse electronic design requirements.
