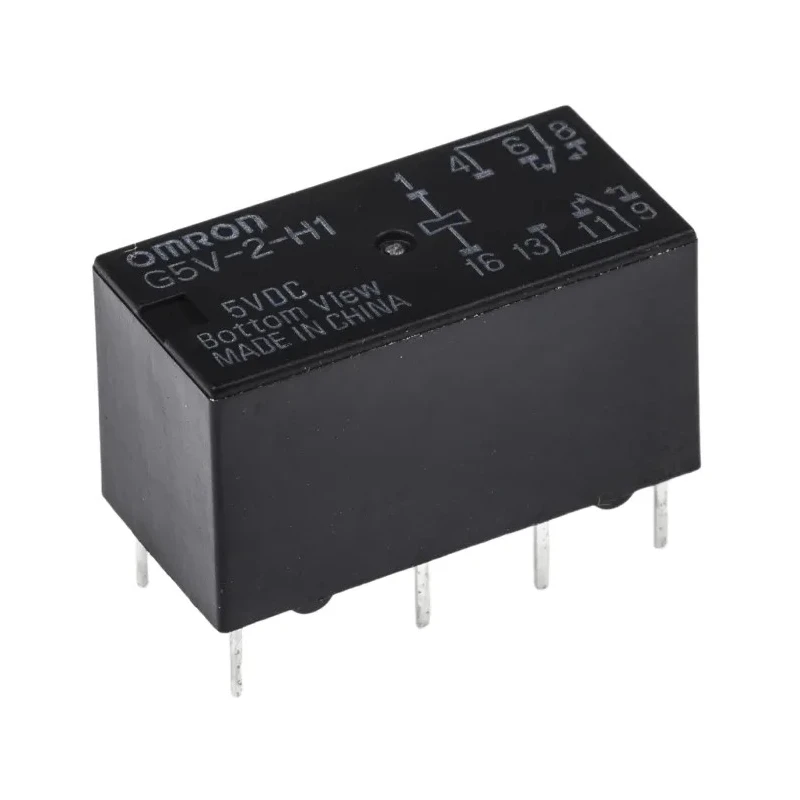

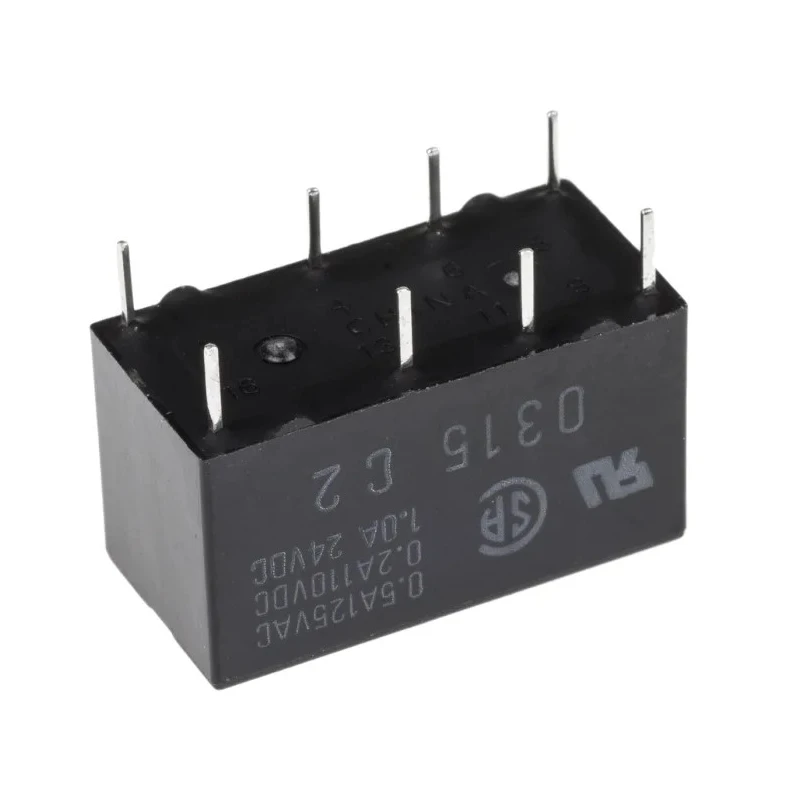

Omron Signal Relay PCB Mount DPDT 5V DC Coil 1A Switching Current G5V-2-H1 DC5
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 11.5mm |
| Length | 20.5mm |
| Model | G5V-2-H1 DC5 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | IM |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -25°C |
| Switching Current | 1A |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Coil Resistance | 166Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 150mW |
Key Features
- Compact signal relay with DPDT contact configuration for versatile switching.
- Operates reliably with a 5V DC coil voltage and 1A switching current capacity.
- Through-hole mount style suitable for printed circuit boards.
- Gold plated contacts ensure high contact reliability and reduced oxidation.
- Wide operating temperature range from -25°C to 70°C for various environments.

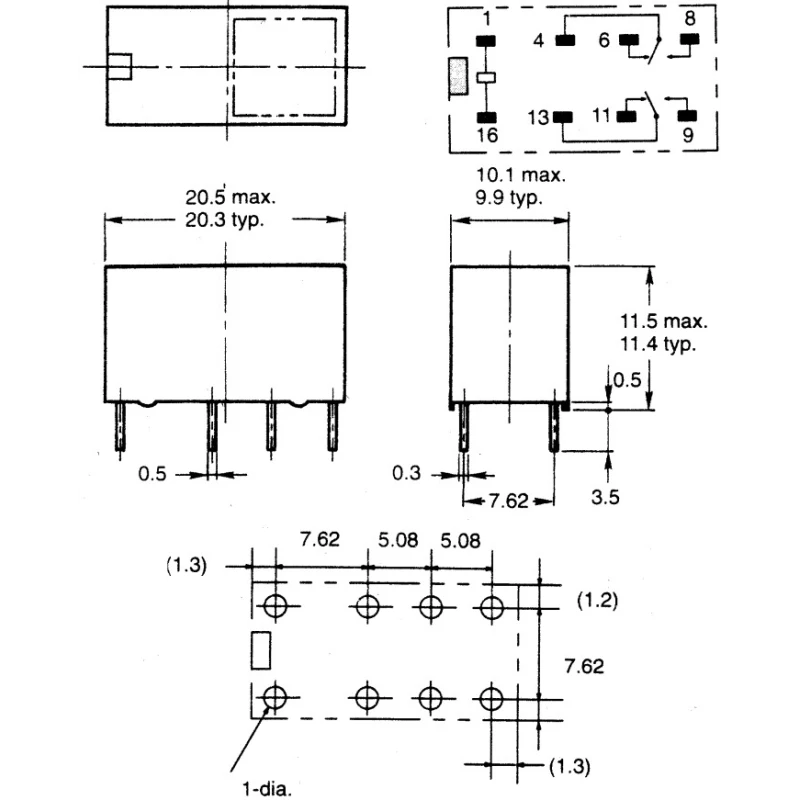

- Small form factor dimensions of 20.5mm length, 10mm width, and 11.5mm height.
- Coil resistance of 166 Ohms and coil power consumption at 150mW.
- Compliant with RoHS standards for environmental safety.
Product Description
Omron G5V-2-H1 DC5 signal relay is a precise PCB mount relay designed for industrial and electronic applications requiring reliable switching with low coil power. Featuring a double pole double throw (DPDT) contact configuration, this relay is actuated by a 5V DC coil and supports a switching current up to 1 ampere. It is built with gold plated contacts and bifurcated crossbar contact system, which enhances contact durability and electrical performance while maintaining high sensitivity.
The relay's compact dimensions of 20.5mm length, 10mm width, and 11.5mm height make it ideal for dense PCB assembly layouts. Its through-hole mounting type is compatible with standard printed circuit boards, facilitating easy integration in electronic devices.
Operating reliably within a wide temperature range of -25°C to 70°C, the G5V-2-H1 DC5 model meets the demands of telecommunication, security systems, computer peripherals, and automation control environments. The coil resistance measured at 166 Ohms and a coil power rating of 150mW ensures energy-efficient operation.
The relay complies with RoHS environmental standards, ensuring it is free from hazardous substances. This product is manufactured in China under the Omron IM series and is widely used in industrial and commercial applications requiring dependable signal relay switching.
Compact signal relay with DPDT contact configuration for versatile switching. Operates reliably with a 5V DC coil voltage and 1A switching current capacity. Through-hole mount style suitable for printed circuit boards. Gold plated contacts ensure high contact reliability and reduced oxidation.
Wide operating temperature range from -25°C to 70°C for various environments. Small form factor dimensions of 20.5mm length, 10mm width, and 11.5mm height. Coil resistance of 166 Ohms and coil power consumption at 150mW.
Compliant with RoHS standards for environmental safety.
This Omron signal relay is suitable for electronics manufacturing, telecommunications equipment, security appliances, computer and peripheral devices, and other industrial control systems.
Explore the extensive range of Signal Relays and electronic components on EnvMart to find ideal solutions for your electronic design and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a switching current capacity of up to 1 ampere.
It operates with a coil voltage of 5V DC.
The relay has dimensions of 20.5mm in length, 10mm in width, and 11.5mm in height.
It features a double pole double throw (DPDT) contact configuration.
This unit uses a through-hole mounting type suitable for printed circuit boards.
The coil resistance is measured at 166 Ohms.
The coil power consumption is rated at 150mW.
It operates reliably within a wide temperature range from -25°C to 70°C.
The contacts are made of gold plated material, which enhances reliability and reduces oxidation.
Yes, it complies with RoHS standards for environmental safety.
This relay is suitable for applications in telecommunications, security systems, computer peripherals, and automation control environments.
The maximum switching voltage is 125V DC and 125V AC.
