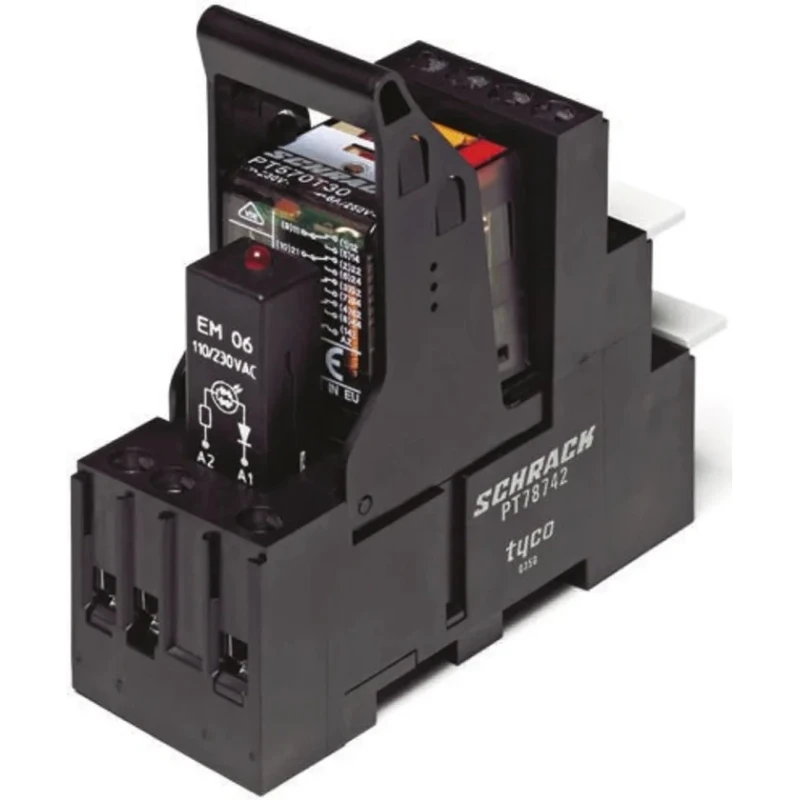

TE Connectivity DIN Rail Power Relay, 115V AC Coil, 6A Switching Current, 4PDT PT5S7SB5 1415366-1

TE Connectivity PT5S7SB5 1415366-1 DIN Rail Power Relay is a robust electrical component designed for reliable switching in industrial, automation, and electrical distribution systems. This power relay operates with a 115V AC coil voltage and supports a switching current of up to 6 amperes, making it suitable for controlling moderate power loads efficiently.

The relay features a 4PDT (Four Pole Double Throw) contact configuration, enabling multiple circuit switching within compact device dimensions of 73.5mm in length, 27mm in width, and 58mm in height. Its silver nickel alloy contacts ensure corrosion resistance and longevity even in demanding environments. Installation is simplified with secure screw terminal connections and DIN rail mounting compatibility.

Designed to operate over a temperature range from -40°C to 70°C, this relay complies with IEC 61810-1 and other relevant standards including RoHS, VDE, and UL, ensuring adherence to international quality and safety benchmarks. It includes mechanical and electrical indicators along with a manual test tab to facilitate diagnostics and maintenance.

Power consumption is optimized with a coil resistance of 4.8kΩ and coil power rating of 1 watt. The relay package includes the relay itself, DIN rail socket, module, retainer, and marking tab for straightforward integration in control panels and assembly lines.

Features a screw terminal type for secure connections. Mounts easily on DIN rails for streamlined installation. Constructed with silver nickel alloy contacts for durability. Operates reliably in temperatures from -40°C to 70°C.

Complies with IEC, RoHS, VDE, and UL standards for quality assurance. Includes manual test tab and mechanical/electrical indicators for operational ease. Dimensions: 73.5mm length, 27mm width, 58mm height for compact form factor.

Coil resistance of 4.8kΩ and coil power of 1W ensures efficient energy use.

This power relay is ideally used in industrial automation, electrical control panels, HVAC systems, manufacturing equipment, and other applications requiring reliable switching and control. Its DIN rail mounting feature makes it well-suited for standardized electrical enclosures and modular assembly setups.
