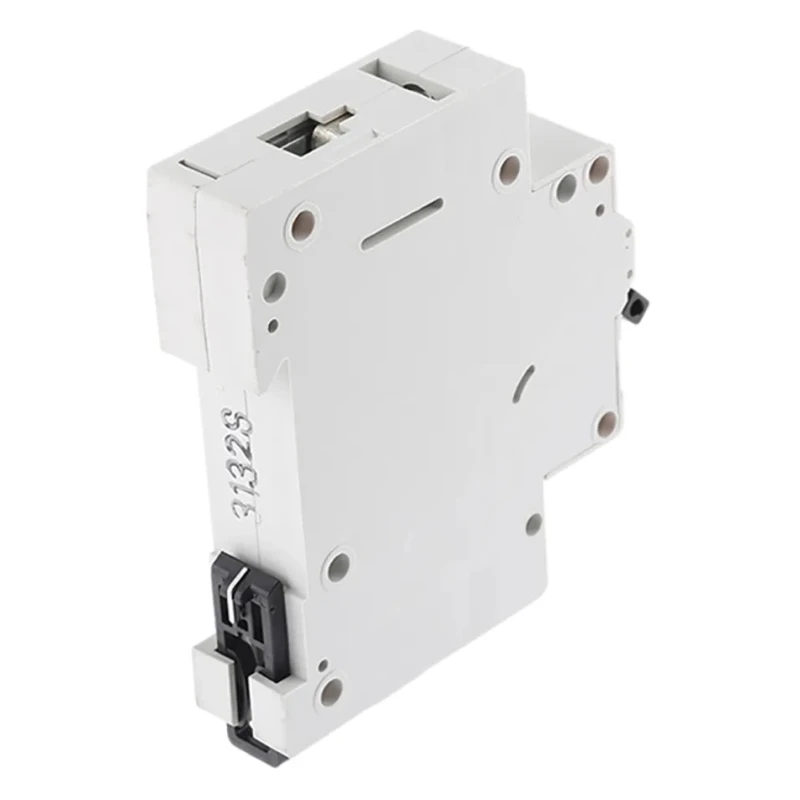

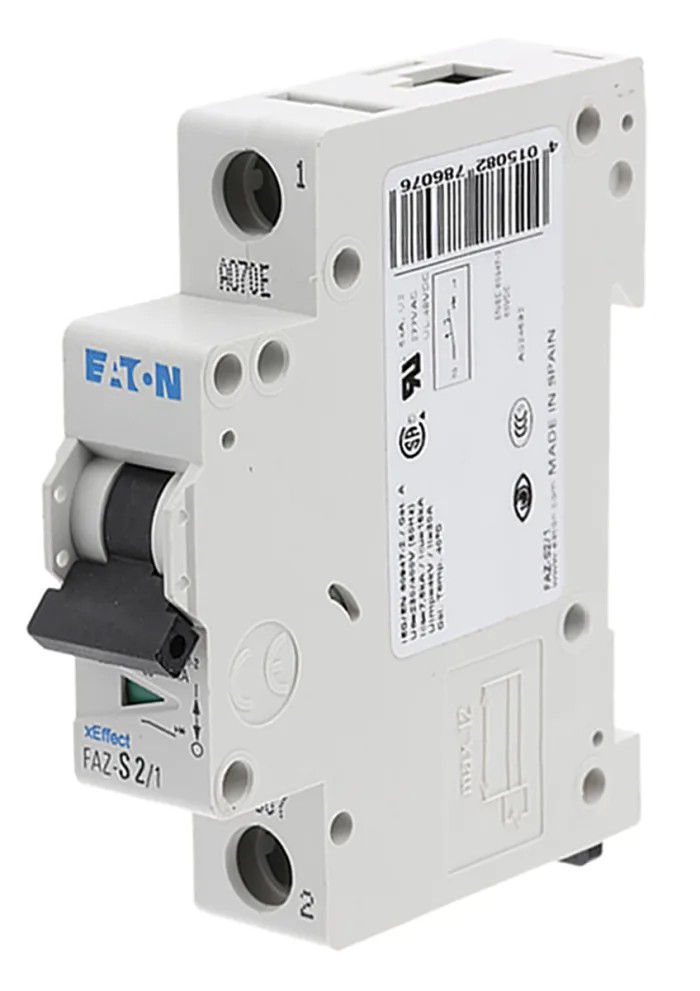

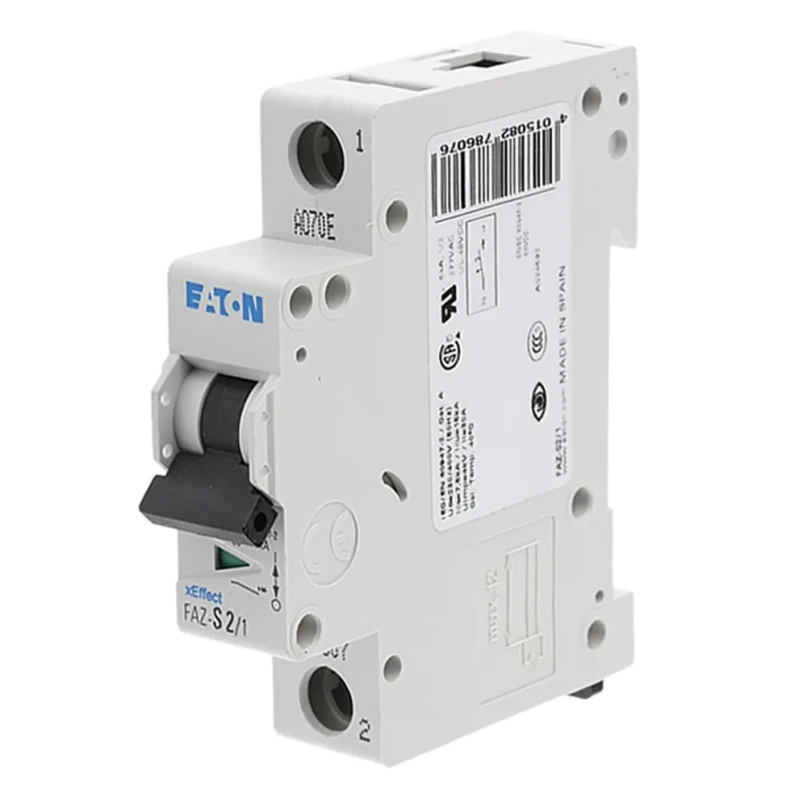

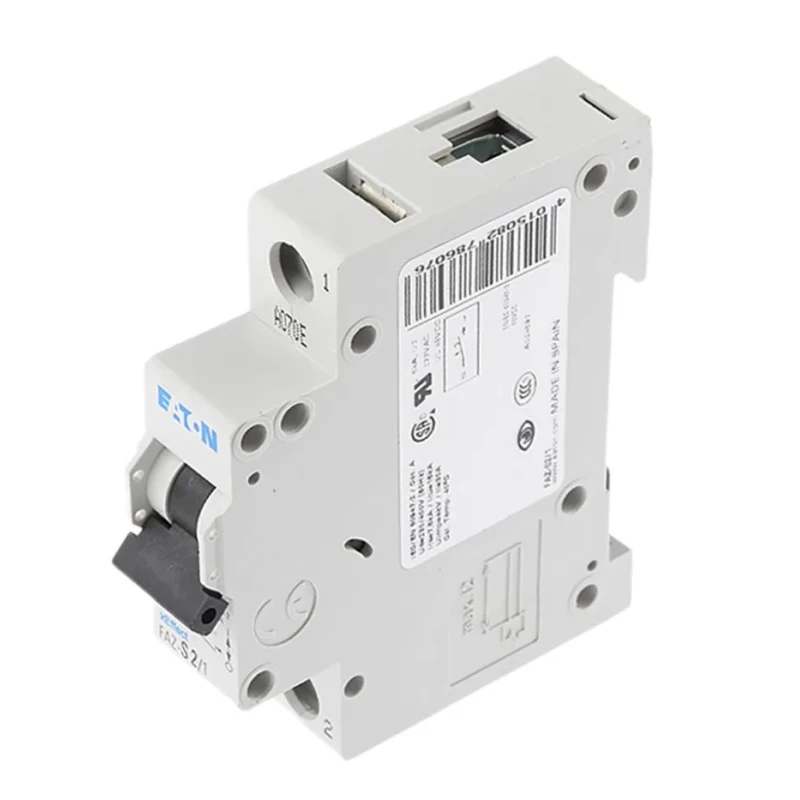

Eaton xEffect Miniature Circuit Breaker 1-Pole 2A 230V AC Thermal Magnetic Tripping 10 kA Breaking Capacity 278607 FAZ-S2/1
Specifications
| Country of Origin | India |
|---|---|
| Range | xEffect |
| Brand | Eaton |
| Model | 278607 FAZ-S2/1 |
| Depth | 74mm |
| IP Rating | IP20 |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Current Rating | 2A |
| Series | xEffect |
| Terminal type | Twin-Purpose Terminal |
| Breaking Capacity | 10kA |
| Number of Poles | 1 |
| Standards/Approvals | IEC/EN 60947-2 |
| Rated AC Voltage | 230V ac |
| Tripping Characteristics | Type S |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Break Time | Instantaneous |
| MCB Module widths | 1P 17.5mm, 2P 35mm and 3P 52.5mm |
| 1 pole type S circuit breaker,6kA 2ABrand | Moeller |
Key Features
- Designed for fast short-circuit interruption to protect electrical circuits effectively.
- Compact 17.5 mm module width saves panel space.
- Compatible with DIN rail mounting for easy installation in electrical panels and distribution boards.
- Provides thermal and electromagnetic trip mechanisms for overload and short-circuit protection.
- Rated for an operating temperature range from -40°C to +75°C for industrial use.
- Features a robust toggle switch with clear indication of contact position.
- Equipped with twin-purpose terminals suitable for busbar stab and wire connection.
- Compliance with IEC/EN 60947-2 standards ensures high safety and quality.
Product Description
The Eaton 278607 FAZ-S2/1 miniature circuit breaker from the xEffect series is a high-quality 1-pole MCB designed for effective protection of electrical circuits up to 2A at 230V AC. This device uses thermal magnetic trip technology to swiftly interrupt short circuits and overloads, thus protecting equipment and wiring from damage.
Its compact and slim 17.5 mm design facilitates efficient use of space in electrical panels and distribution boards. It mounts easily on DIN rails, providing a secure and standard installation method for industrial and commercial electrical systems.
The MCB features a robust toggle switch that clearly shows the switch position, enhancing ease of operation and maintenance. Its twin-purpose terminal connections allow for versatile installation, including connection to busbar stabs or insulated wires. The breaker is rated for a breaking capacity of 10 kA, ensuring reliable interruption of fault currents.
Built to withstand rigorous industrial environments, it operates reliably across a wide temperature range from -40°C to +75°C. The device also provides finger-proof protection adhering to IP20 standards, maximizing user safety during operation.
Designed according to IEC/EN 60947-2 standards, the Eaton FAZ series incorporates trip-free mechanisms to prevent manual override of the breaker handle, ensuring safety and compliance with industrial requirements.
Fast short-circuit interruption for reliable circuit protection. Compact 17.5 mm width saves installation space. Easy DIN rail mounting for secure installation. Thermal magnetic trip mechanism for enhanced safety. Wide operating temperature range from -40°C to +75°C.
Twin-purpose terminals for flexible connection options. 10 kA breaking capacity suitable for standard industrial applications. IP20 finger-proof rating for operator protection. Compliance with IEC/EN 60947-2 industrial safety standards.
This Eaton Miniature Circuit Breaker is ideal for industrial, commercial, and electrical distribution applications where dependable circuit protection is critical. It offers engineers and electricians a trusted solution for control panels, distribution boards, and other electrical installations.
Explore the comprehensive range of Eaton xEffect circuit breakers and components at EnvMart for superior circuit protection equipment.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton 278607 FAZ-S2/1 has a breaking capacity of 10 kA, which allows it to effectively interrupt fault currents in electrical circuits.
This miniature circuit breaker is rated for 230V AC, making it suitable for standard electrical applications.
The dimensions of this model are 17.5 mm in width and 74 mm in depth, allowing for compact installation in electrical panels.
The thermal magnetic tripping mechanism in this circuit breaker provides protection against overloads and short circuits by swiftly interrupting the electrical flow when necessary.
It operates reliably across a wide temperature range from -40°C to +75°C, making it suitable for various industrial environments.
Yes, the Eaton 278607 FAZ-S2/1 is designed for easy installation on DIN rails, ensuring a secure and standard mounting method.
This model features twin-purpose terminals, allowing for flexible connections to either busbar stabs or insulated wires.
It complies with IEC/EN 60947-2 standards, ensuring high safety and quality for industrial applications.
The robust toggle switch provides a clear indication of the contact position, enhancing ease of operation and maintenance for users.
The Eaton 278607 FAZ-S2/1 has Type S tripping characteristics, which are designed for specific overload protection requirements.
This model has an IP20 rating, providing finger-proof protection for operator safety during operation.
The Eaton FAZ-S2/1 is part of the xEffect series, which is known for its compact design and effective circuit protection capabilities.
