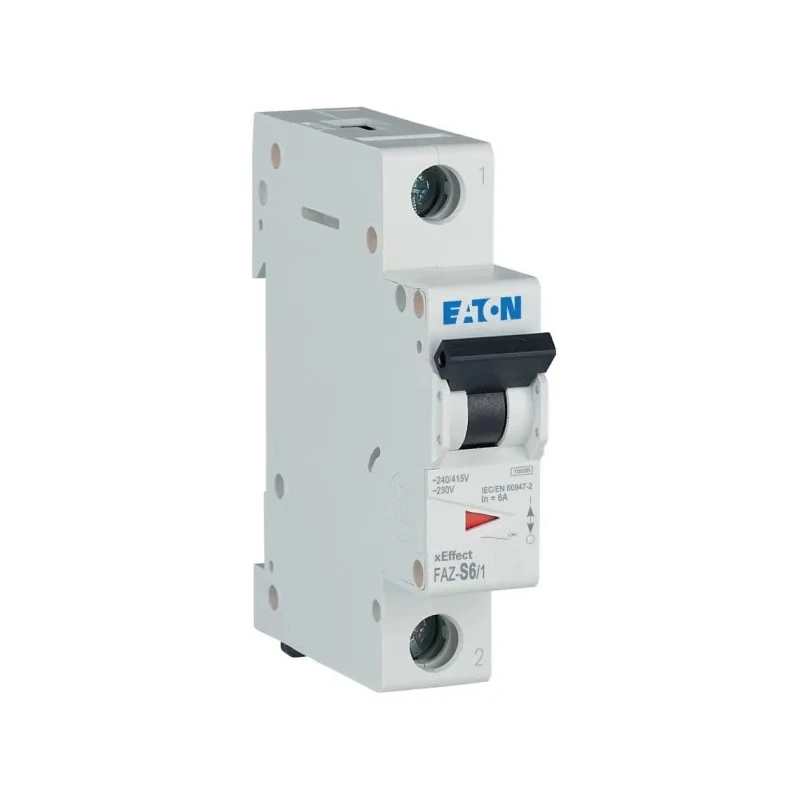

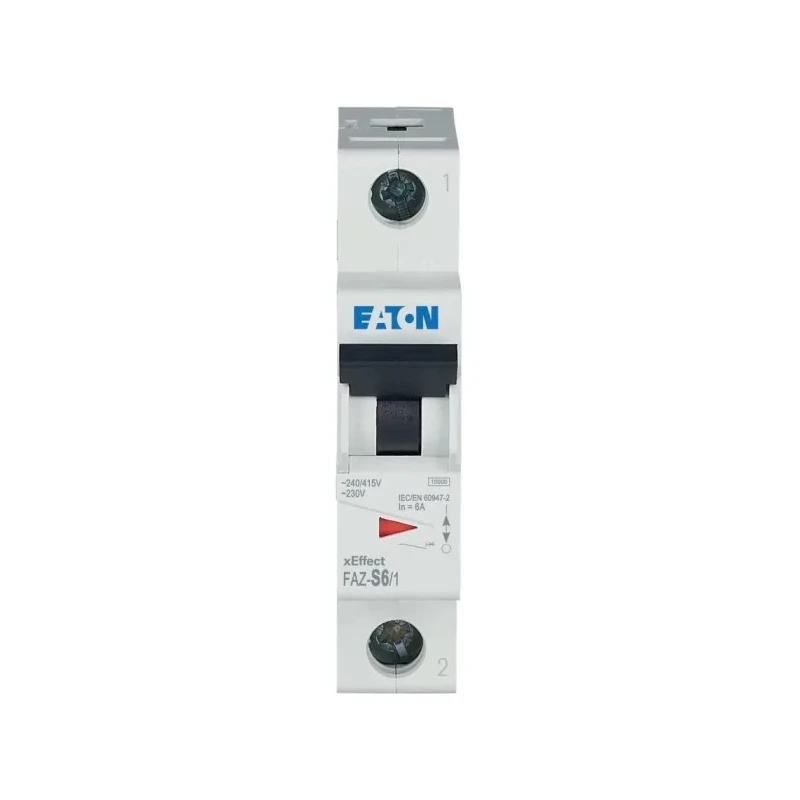

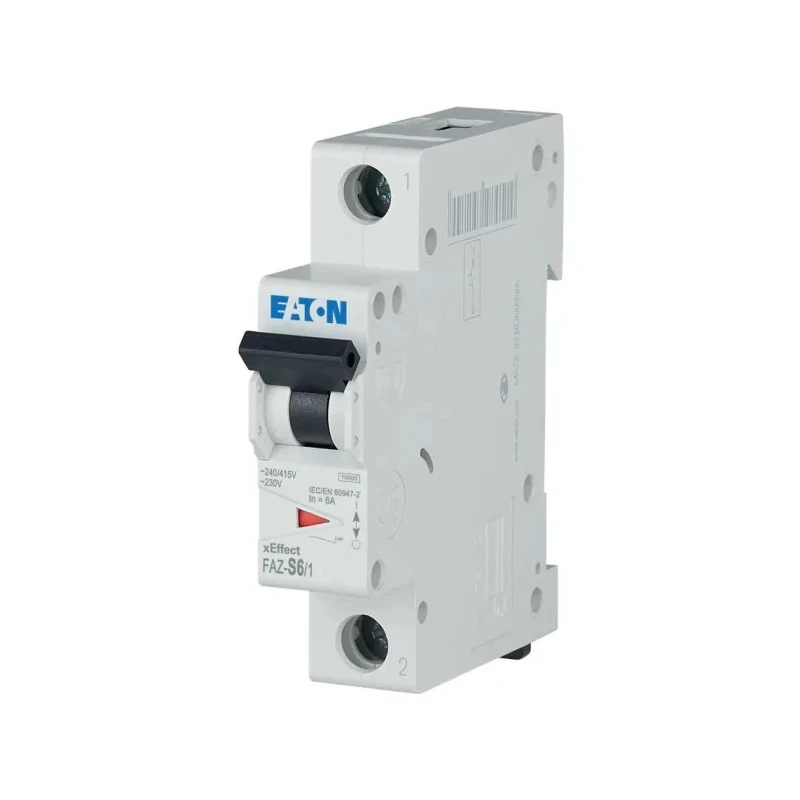

Eaton xEffect Miniature Circuit Breaker, 1-Pole, 6A, Type S, 230V AC, 10 kA Breaking Capacity 278610 FAZ-S6/1
Specifications
| Country of Origin | India |
|---|---|
| Range | xEffect |
| Brand | Eaton |
| Model | 278610 FAZ-S6/1 |
| Depth | 74mm |
| IP Rating | IP20 |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Current Rating | 6A |
| Series | xEffect |
| Terminal type | Twin-Purpose Terminal |
| Breaking Capacity | 10kA |
| Number of Poles | 1 |
| Standards/Approvals | IEC/EN 60947-2 |
| Rated AC Voltage | 230V ac |
| Tripping Characteristics | Type S |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Break Time | Instantaneous |
| 1 pole type S circuit breaker,6kA 6ABrand | Moeller |
Key Features
- Designed for DIN rail mounting with compact dimensions.
- Offers 10 kA breaking capacity for high fault tolerance.
- Features instantaneous break time and thermal magnetic tripping mechanism.
- Equipped with a reset toggle switch for user-friendly operation.
- IP20 protection rating ensures safe use in various installations.
- Compatible with solid-core and multi-wired conductors from 1 mm² to 25 mm².
- Operates efficiently within a temperature range of -25°C to 75°C.
- Conforms to IEC/EN 60947-2 standard for circuit breakers.
Product Description
Eaton 278610 FAZ-S6/1 Miniature Circuit Breaker is a high-performance electrical protection device designed for industrial, commercial, and residential electrical distribution systems. It features a 1-pole configuration with a current rating of 6A and Type S tripping characteristics to ensure selective and reliable circuit protection.
This DIN rail-mounted MCB measures 80mm in length, 74mm depth, and 17.5mm width, making it suitable for compact electrical enclosures while maintaining robust functionality. The device offers a breaking capacity of 10 kA, enabling it to safely interrupt high fault currents, reducing the risk of electrical accidents.
The thermal magnetic tripping mechanism ensures accurate response to overloads and short circuits, while the instantaneous break time provides swift disconnection during fault conditions. The reset toggle switch simplifies manual resetting after a trip, enhancing system maintainability.
Its IP20 ingress protection rating guarantees safe operation in standard electrical installation environments. The MCB supports wiring with both solid-core and multi-wired conductors ranging from 1 mm² to 25 mm², offering considerable flexibility in wiring design.
The device is suitable for branch circuit protection in commercial settings, industrial switchgear applications, and any installation requiring dependable single-pole circuit protection. It operates reliably in ambient temperatures from -25°C to 75°C, accommodating varied environmental conditions.
Designed for DIN rail mounting with compact dimensions. Provides 10 kA breaking capacity for high fault level protection. Thermal magnetic trip unit ensures selective tripping. Resettable toggle switch offers easy operation.
IP20 rated for safe and secure installation. Compatible with solid-core and multi-wired conductors 1 mm² to 25 mm². Operates effectively between -25°C and 75°C ambient temperatures. Conforms to international standard IEC/EN 60947-2.
This product is ideal for use in electrical panels, distribution boards, and switchgear assemblies within industrial, commercial, and residential electrical systems. Eaton's xEffect series is recognized for durability, safety, and compliance with international standards, making it a trusted choice for circuit protection needs.
Explore more products within the Miniature Circuit Breaker category on EnvMart for reliable electrical protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a breaking capacity of 10 kA, allowing it to safely interrupt high fault currents.
The current rating of this miniature circuit breaker is 6A.
This model operates at a rated AC voltage of 230V.
It measures 80mm in length, 74mm in depth, and 17.5mm in width.
It utilizes a thermal magnetic tripping mechanism for accurate response to overloads and short circuits.
The device has an IP20 protection rating, ensuring safe operation in standard electrical installation environments.
It is compatible with solid-core and multi-wired conductors ranging from 1 mm² to 25 mm².
It operates effectively within a temperature range of -25°C to 75°C.
This model is designed for DIN rail mounting, making it suitable for compact electrical enclosures.
It conforms to the IEC/EN 60947-2 standard for circuit breakers.
It features a reset toggle switch for user-friendly operation after a trip.
It is suitable for branch circuit protection in commercial settings, industrial switchgear applications, and residential electrical systems.
