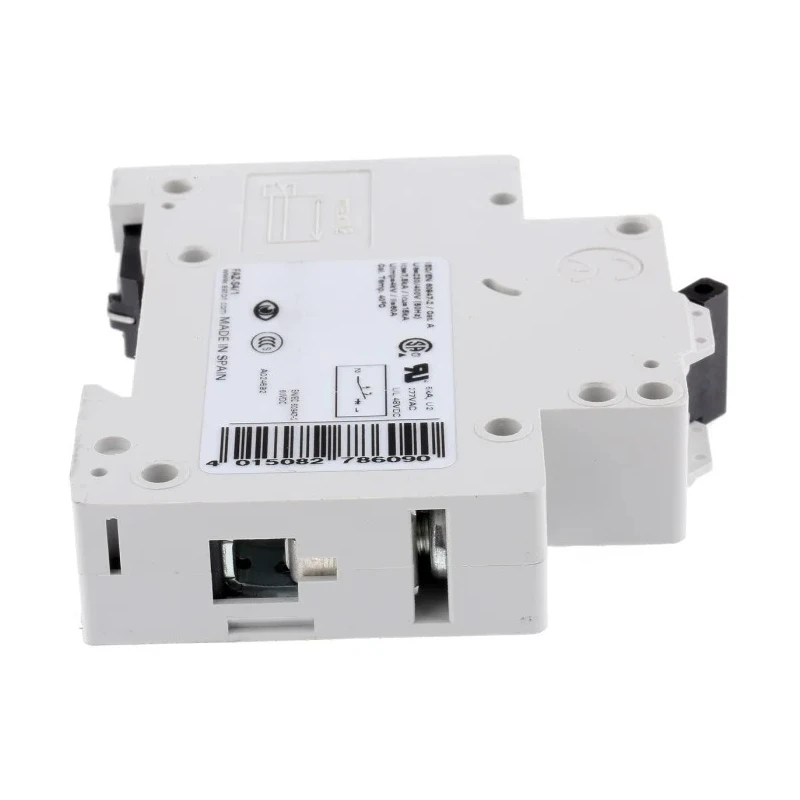

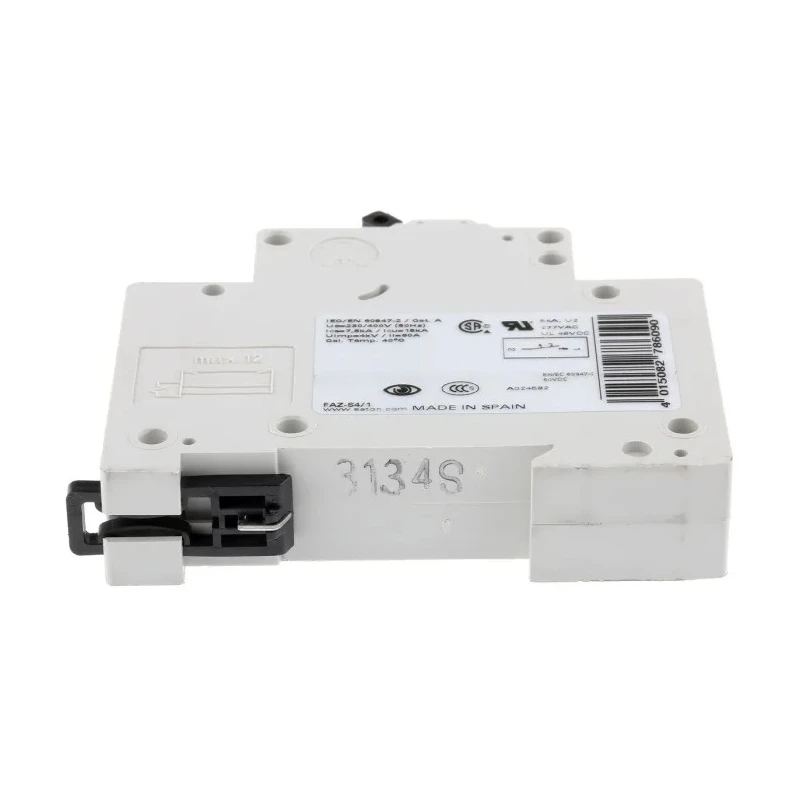

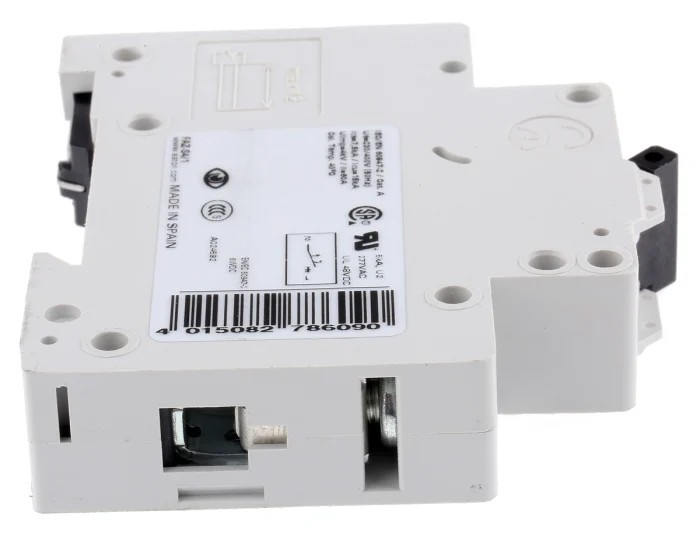

Eaton xEffect Miniature Circuit Breaker, 1-Pole, 4A, Type S, 230V AC, 10 kA Breaking Capacity 278609 FAZ-S4/1
Specifications
| Country of Origin | India |
|---|---|
| Range | xEffect |
| Brand | Eaton |
| Model | 278609 FAZ-S4/1 |
| Depth | 74mm |
| IP Rating | IP20 |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Current Rating | 4A |
| Series | xEffect |
| Terminal type | Twin-Purpose Terminal |
| Breaking Capacity | 10kA |
| Number of Poles | 1 |
| Standards/Approvals | IEC/EN 60947-2 |
| Rated AC Voltage | 230V ac |
| Tripping Characteristics | Type S |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Break Time | Instantaneous |
| MCB Module widths | 1P 17.5mm, 2P 35mm and 3P 52.5mm |
| 1 pole type S circuit breaker,6kA 4ABrand | Moeller |
Key Features
- Designed with fast short-circuit interruption to reduce let-through electrical energy.
- Suitable for control circuits and electrical distribution boards.
- Includes trip-free mechanism and finger-proof safety features.
- DIN Rail mount type with a modular width of 17.5 mm per pole.
- Complies with IEC/EN 60947-2 standards for industrial use.
- Twin-purpose terminal ensures versatile connection options.
- Rated current range includes 0.16 A to 63 A with switching capacity up to 15 kA.
- Toggle switch reset actuator with instantaneous break time.
Product Description
Eaton 278609 FAZ-S4/1 Miniature Circuit Breaker (MCB), 1-Pole, 4A, Type S, rated at 230V AC and 10 kA breaking capacity provides effective short-circuit and overload protection for electrical installations.
Part of Eaton's xEffect range, the FAZ series includes current limiting design to reduce damage risks by limiting electrical energy let-through during faults, making it ideal for industrial, commercial, and residential electrical distribution systems.
This MCB is DIN Rail mountable with a compact 17.5 mm width, suitable for space-saving panel installations. The device features thermal-magnetic tripping mechanism for accurate overload and short circuit protection combined with a toggle switch for ease of operation.
Its robust design includes finger-proof terminals and a trip-free mechanism that prevents the breaker from being held in the ON position to ensure enhanced safety. The product is compliant with IEC/EN 60947-2 standards for low voltage circuit breakers.
Typical applications include control circuits, electrical distribution boards in industrial plants, manufacturing facilities, commercial buildings, and housing complexes. It offers reliable protection ensuring the longevity and safety of electrical circuits by preventing overload and short circuits.
Fast short-circuit interruption with current limiting design. Thermal and electromagnetic release for precise tripping. DIN Rail mount for easy installation. Compact 17.5 mm width per pole for panel space efficiency. Trip-free mechanism and finger-proof terminals for safety.
Conforms to IEC/EN 60947-2 industrial standards. Twin-purpose terminals allow flexible wiring options. Toggle switch actuator for manual resetting.
Set includes one Miniature Circuit Breaker unit with all implied accessories for DIN Rail mounting. Eaton's xEffect range provides robust protection solutions balancing performance and safety for electrical distribution applications.
Explore further options in circuit breakers, control equipment, and electrical protection devices at EnvMart's Electronics & Electricals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The breaking capacity of this miniature circuit breaker is 10 kA.
This model has a rated current of 4A.
It is rated for 230V AC.
The width of this circuit breaker is 17.5 mm per pole.
It uses a thermal magnetic tripping mechanism.
This unit is designed for DIN Rail mounting.
It includes a trip-free mechanism and finger-proof terminals for enhanced safety.
It complies with IEC/EN 60947-2 standards for low voltage circuit breakers.
The depth of this model is 74 mm.
It features twin-purpose terminals for versatile connection options.
It is suitable for control circuits and electrical distribution boards in industrial, commercial, and residential settings.
The break time is instantaneous.
