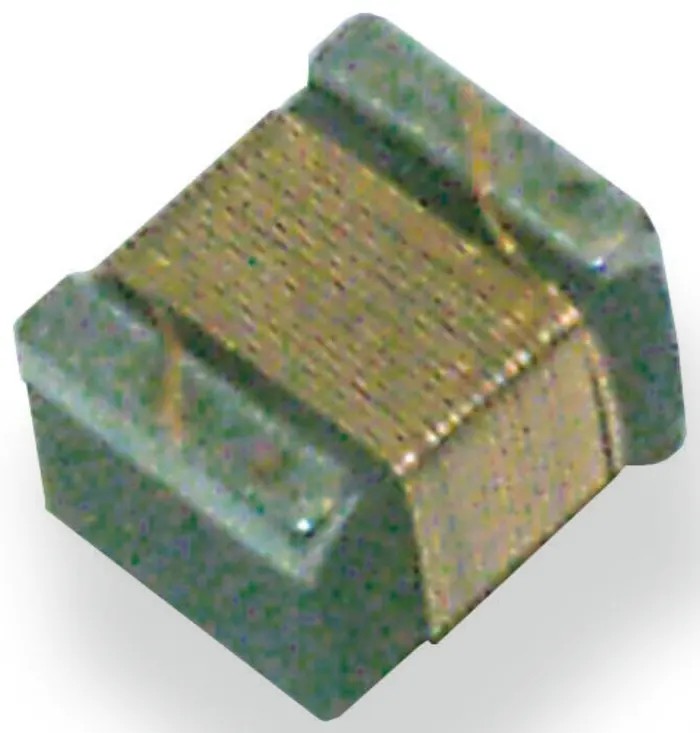

TE Connectivity 0805 Unshielded Wirewound Surface Mount Inductor, Ferrite Core, 150 nH ±5% 400 mA Idc Q:50 36502AR15JTDG

TE Connectivity 36502AR15JTDG is a high-quality 0805 unshielded wirewound surface mount inductor designed with a ferrite core, offering an inductance of 150 nH with a tolerance of ±5%.

It supports a maximum DC current of 400 mA, making it suitable for various electronic applications requiring reliable inductance performance.

The component features an 0805 package size with compact dimensions: length 2.29 mm, height 1.52 mm, and depth 1.73 mm, ideal for high-density PCB layouts in industrial, commercial, and consumer electronics.

This inductor exhibits a maximum DC resistance of 560 mΩ and a minimum quality factor of 50, ensuring efficient energy storage and minimal power loss. Operating temperature ranges from -40°C to 125°C, it complies with RoHS standards, confirming its environmental safety and sustainability.

The high self-resonant frequency of 920 MHz makes it suitable for high-frequency circuits, including RF and power electronics. The termination style is solder, and the inductor construction is wirewound with a moulded ferrite core to enhance magnetic properties and durability.

It is supplied on a reel to facilitate automated assembly and improve production efficiency. This product is manufactured in Taiwan, Province Of China, ensuring quality manufacturing standards. This inductor has a maximum DC current rating of 400 mA.

The inductor package size is 0805 with a length of 2.29 mm, height of 1.52 mm, and depth of 1.73 mm. It has a maximum DC resistance of 560 mΩ and a minimum quality factor of 50. The product operates over a temperature range from -40°C to 125°C and is RoHS compliant.

The inductor boasts a high self-resonant frequency of 920 MHz, ensuring performance in high frequency applications. The termination style is solder and the construction is wirewound with a moulded ferrite core. It has two pins and is supplied in reel packaging for ease of assembly.

Country of origin is Taiwan, Province Of China.

TE Connectivity components like the 36502AR15JTDG series surface mount inductors are commonly used in electronics manufacturing, automotive electronics, telecommunications, and power management systems. This inductor offers precision, reliability, and compatibility with modern high-density PCB assemblies.
