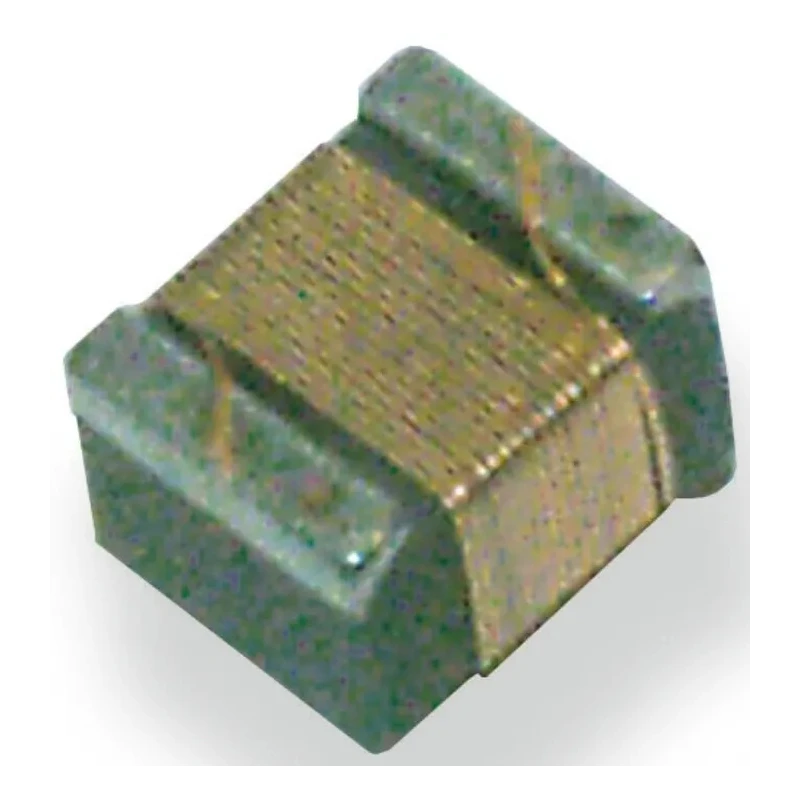

TE Connectivity 0805 Unshielded Wirewound Surface Mount Inductor 1 μH ±5% 170 mA Idc Q:20 36502A1R0JTDG
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TE Connectivity |
| Height | 1.52mm |
| Length | 2.29mm |
| Model | 36502A1R0JTDG |
| Depth | 1.73mm |
| Packaging | Reel |
| Series | 3650 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 1μH |
| Standards/Approvals | RoHS |
| Package/Case | 0805 |
| Maximum DC Current | 170mA |
| Pin Count | 2 |
| Maximum DC Resistance | 2.5Ω |
| Inductance Tolerance | ±5 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 100MHz |
| Minimum Quality Factor | 20 |
| Inductor Construction | Wirewound |
Key Features
- Wirewound construction with a ferrite core enhances magnetic performance.
- Maximum DC current rating of 170 mA supports low current applications.
- Package size 0805 with compact dimensions length 2.29 mm, height 1.52 mm, and depth 1.73 mm.
- High quality factor minimum 20 ensures low power loss and high efficiency.
- RoHS compliant and moulded for durability and reliability.
- Maximum DC resistance is 2.5 Ω, maintaining effective current flow.
- Maximum operating temperature range from -40°C to 125°C suitable for harsh environments.
- Termination style is solder, compatible with surface mount technology (SMT) assembly.
Product Description
TE Connectivity 36502A1R0JTDG is an 0805 unshielded wirewound surface mount inductor featuring a ferrite core and a precise inductance of 1 μH with a tolerance of ±5%. This component supports a maximum DC current of 170 mA and is designed for high quality factor applications with a minimum Q of 20, ensuring excellent performance in signal filtering, energy storage, and electromagnetic interference suppression.
The compact 0805 package size measures 2.29 mm in length, 1.52 mm in height, and 1.73 mm in depth, making it ideal for space-constrained printed circuit boards. The inductor is moulded for mechanical protection and durability, and it provides a maximum self-resonant frequency of 100 MHz, supporting high frequency operation without degradation.
Manufactured with a ferrite core and wirewound construction, this inductor offers low DC resistance of 2.5 Ω and reliable solder termination style for standard surface mount assembly processes. It operates reliably across a wide temperature range from -40°C to 125°C, suitable for industrial, consumer electronics, telecommunications, and automotive circuit designs that require RoHS compliance for environmental safety.
This product is supplied on a reel packaging format facilitating automated placement on PCBs, improving manufacturing efficiency and yield rates. It matches the 3650 series from TE Connectivity, known for quality and consistency in passive components.
Industrial and electronics engineers can depend on this inductor for use in power management circuits, filtering, voltage regulation, and electromagnetic noise suppression within various electronic devices and modules.
Wirewound construction with ferrite core for optimal magnetic properties. Compact 0805 surface mount package suitable for high-density PCB layouts. Excellent quality factor and high-frequency operation up to 100 MHz. Wide operating temperature range from -40°C to 125°C.
RoHS compliant ensuring environmentally safe product standards. Explore comprehensive ranges of Surface Mount Inductors and passive components at EnvMart for advanced electronics manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 1 μH with a tolerance of ±5%.
The maximum DC current rating for this inductor is 170 mA, making it suitable for low current applications.
The dimensions of the 0805 package are 2.29 mm in length, 1.52 mm in height, and 1.73 mm in depth.
It operates within a temperature range from -40°C to 125°C, suitable for harsh environments.
This inductor has a minimum quality factor of 20, ensuring low power loss and high efficiency.
The termination style is solder, which is compatible with standard surface mount technology (SMT) assembly processes.
The maximum DC resistance is 2.5 Ω, which helps maintain effective current flow.
The maximum self-resonant frequency is 100 MHz, supporting high frequency operation.
This product is manufactured in Taiwan.
It is suitable for applications in power management circuits, filtering, voltage regulation, and electromagnetic noise suppression.
Yes, this inductor is RoHS compliant, ensuring it meets environmental safety standards.
This inductor is supplied on a reel, facilitating automated placement on printed circuit boards (PCBs).
