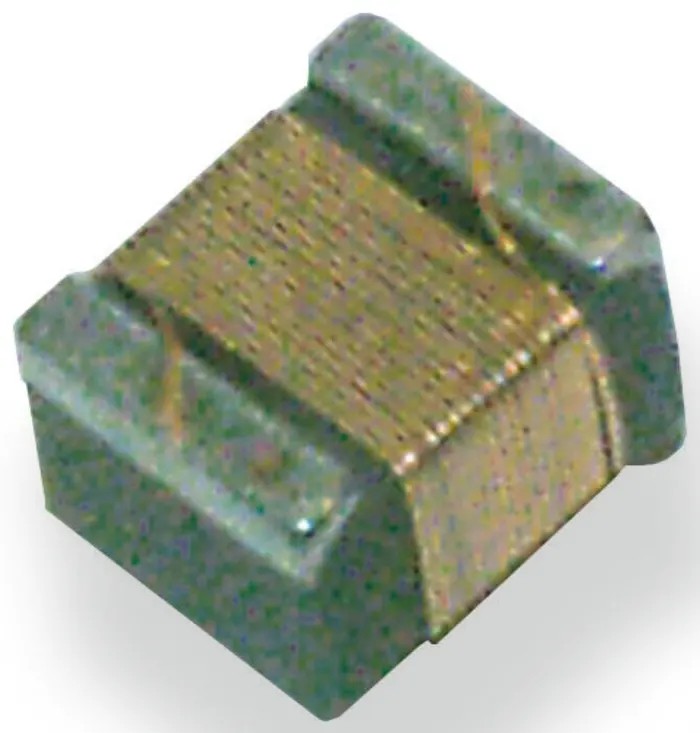

TE Connectivity 0603 Unshielded Wirewound Surface Mount Inductor, 100 nH ±5 % 400 mA Idc, Ferrite Core, Q:34 36501JR10JTDG
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 1.02mm |
| Length | 1.8mm |
| Model | 36501JR10JTDG |
| Depth | 1.12mm |
| Packaging | Reel |
| Series | 3650 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 100nH |
| Standards/Approvals | RoHS |
| Package/Case | 0603 |
| Maximum DC Current | 400mA |
| Pin Count | 2 |
| Maximum DC Resistance | 580mΩ |
| Inductance Tolerance | ±5 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 1.4GHz |
| Minimum Quality Factor | 34 |
| Inductor Construction | Wirewound |
| Murata, LQG18H, 0603 Wirewound Surface Mount Inductor 100 nH ±5 % 300 mA Idc Q | 12Brand: Murata |
Key Features
- Constructed with a ferrite core for enhanced magnetic performance.
- Package size is 0603 with a compact length of 1.8 mm for space-saving PCB integration.
- Supports a maximum self-resonant frequency of 1.4 GHz ensuring high-frequency applicability.
- Features a high quality factor (Q) of 34, providing efficient inductance with minimum losses.
- Operating temperature ranges from -40°C to 125°C, suitable for various demanding environments.
- Termination style is solder, compatible with standard PCB assembly processes.
- RoHS compliant ensuring environmental safety standards.
- Wirewound construction ensures reliability and stable electrical characteristics.
Product Description
TE Connectivity 36501JR10JTDG is a high-performance unshielded wirewound surface mount inductor designed with a ferrite core and packaged in the 0603 case size. It features 100 nH inductance with ±5 % tolerance, making it ideal for precision electronic applications. With a maximum DC current rating of 400 mA, this inductor supports demanding circuit requirements.
The component supports a wide operating temperature range from -40°C to 125°C, making it suitable for industrial, automotive, telecommunications, and consumer electronic applications. Its high quality factor (Q) of 34 ensures minimal energy loss and efficient filtering in high-frequency circuits.
Constructed with wirewound technology, the inductor offers excellent electrical performance and stability. The compact dimensions of length 1.8 mm, height 1.02 mm, and depth 1.12 mm facilitate easy integration on dense printed circuit boards. The termination style is solder, compatible with standard surface mount technology assembly.
This RoHS-compliant inductor has a maximum DC resistance of 580 milliohms, limiting power losses and improving energy efficiency in the circuit. The maximum self-resonant frequency of 1.4 GHz suits high-frequency electronic designs, including RF and signal integrity applications.
Ferrite core enhances magnetic efficiency and stability. 0603 package for compact PCB layouts. Wirewound construction provides stable inductance values. Operating temperature range from -40°C to 125°C ensures reliability in harsh conditions.
RoHS compliant for environmentally safe manufacturing. Maximum DC current 400 mA for moderate load circuits. High quality factor Q=34 for low signal attenuation. Low DC resistance of 580 mΩ minimizes power dissipation.
This surface mount inductor is ideal for industrial electronic assemblies, telecommunications equipment, consumer electronics, and automotive circuits requiring reliable inductors with stable performance across a wide temperature and frequency range. Its small 0603 size also allows designers to optimize board real estate efficiently.
Explore more Surface Mount Inductors and components from TE Connectivity at EnvMart for professional-grade electronic solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 100 nH with a tolerance of ±5%.
It supports a maximum DC current rating of 400 mA, making it suitable for moderate load circuits.
The maximum self-resonant frequency is 1.4 GHz, allowing for high-frequency applications.
The inductor has a length of 1.8 mm, a height of 1.02 mm, and a depth of 1.12 mm.
It operates within a temperature range of -40°C to 125°C, suitable for various demanding environments.
This unit is constructed with a ferrite core, enhancing its magnetic performance.
The termination style is solder, which is compatible with standard PCB assembly processes.
It features a high quality factor (Q) of 34, providing efficient inductance with minimal losses.
Yes, this model is RoHS compliant, ensuring it meets environmental safety standards.
The maximum DC resistance is 580 milliohms, which helps limit power losses in the circuit.
It is suitable for industrial electronic assemblies, telecommunications equipment, consumer electronics, and automotive circuits.
It is packaged in a reel, facilitating easy handling and assembly.
