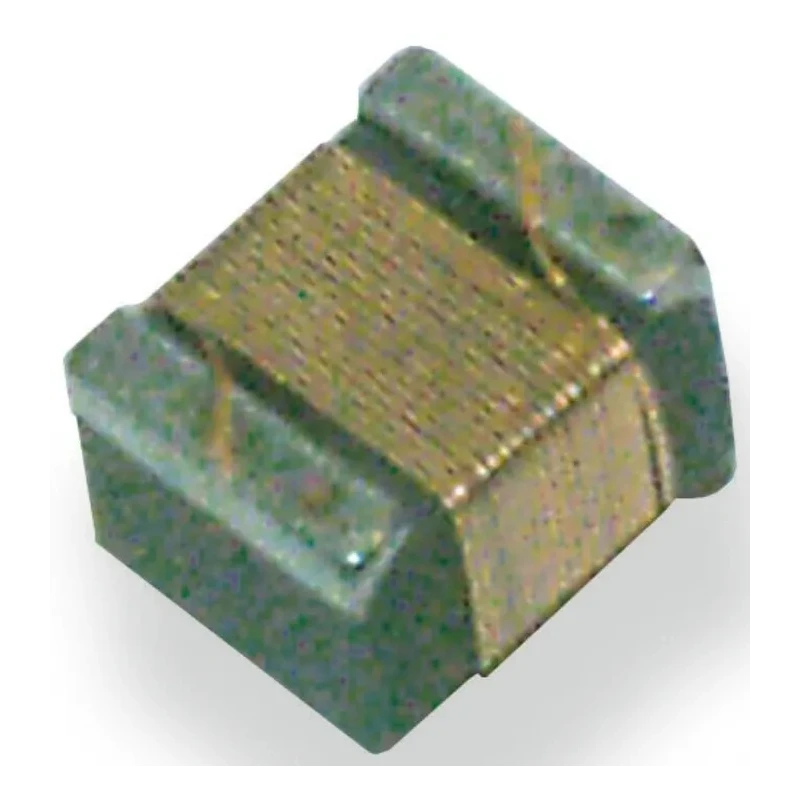

TE Connectivity 0805 Unshielded Wirewound Surface Mount Inductor with Ferrite Core 120 nH ±5% 400 mA DC 36502AR12JTDG

TE Connectivity 36502AR12JTDG is a high-performance 0805 unshielded wirewound surface mount inductor with a ferrite core, precisely rated at 120 nH inductance with ±5% tolerance. Supporting a maximum DC current of 400 mA, it is designed to deliver stable inductance values for electronic and power applications.

This surface mount inductor features a wirewound construction, which provides excellent electrical characteristics and low losses. The compact 0805 package size with dimensions 2.29mm length, 1.52mm height, and 1.73mm depth makes it suitable for dense PCB layouts. The ferrite core material enhances magnetic permeability and contributes to the device’s high self-resonant frequency of 1.1 GHz, making it ideal for high-frequency circuits.

With a minimum quality factor of 50, the inductor ensures efficient operation and reduced energy dissipation. The maximum DC resistance is 510 milliohms, minimizing power loss during operation. The device supports an operating temperature range from -40°C to 125°C, allowing reliable performance in demanding industrial environments.

The termination style is solder, suitable for surface mount technology (SMT) assembly processes. The product is supplied in a reel package, which facilitates automated assembly and enhances production efficiency. Molded construction adds mechanical robustness to withstand handling and operational stresses.

TE Connectivity 36502AR12JTDG complies with RoHS standards, confirming its adherence to environmental and safety regulations. The product is manufactured in Taiwan, Province of China, renowned for precision electronic component manufacturing.

Wirewound construction enhances electrical performance and reliability. Ferrite core provides high permeability and stability. High self-resonant frequency suited for RF and power electronics. Wide operating temperature range enables diverse industrial applications.

Compact 0805 package fits densely packed PCBs. Low DC resistance reduces power losses. Solder termination ensures easy PCB mounting. Reel packaging supports automated manufacturing. RoHS compliant for environmental safety.

Molded design adds mechanical durability.

This surface mount inductor from TE Connectivity is widely applicable in power electronics, automotive systems, telecommunications, consumer electronics, and industrial equipment. Its combination of size, performance, and durability makes it ideal for designers seeking reliable inductors for PCB assembly and high-frequency circuits.
