TE Connectivity 0805 Unshielded Wirewound Surface Mount Inductor with Ferrite Core, 120 nH ±5 %, 400 mA Idc 36502AR12JTDG

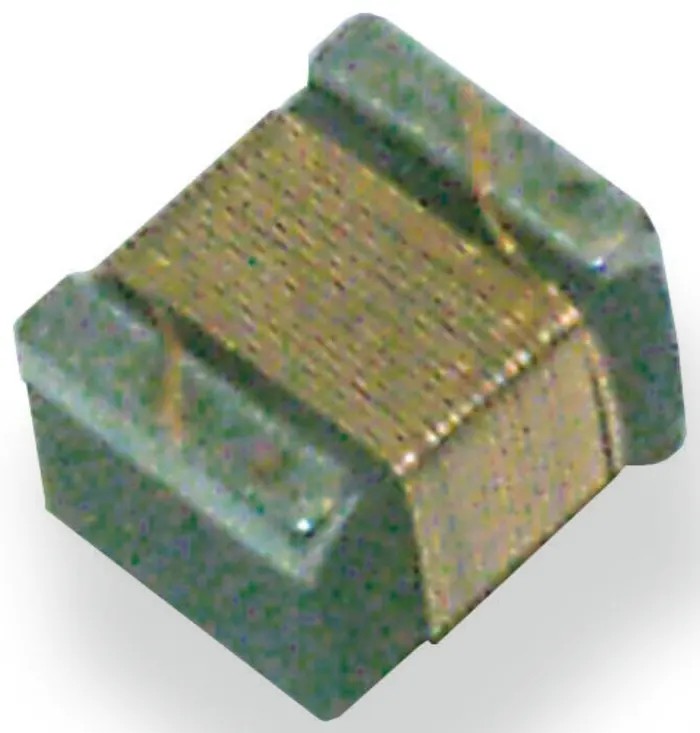

TE Connectivity 36502AR12JTDG is an 0805 form factor unshielded wirewound surface mount inductor with a ferrite core, designed for precise inductance of 120 nH with ±5 % tolerance. It is engineered to handle a maximum DC current of 400 mA, making it suitable for various electronic applications requiring reliable inductance and current capacity.

The inductor features wirewound construction providing a high quality factor (minimum Q of 50) and a maximum self-resonant frequency of 1.1 GHz, making it efficient for high-frequency surface mount technology devices. The ferrite core improves magnetic properties ensuring stability and consistency across operating temperatures ranging from -40°C to 125°C.

With dimensions of 2.29 mm length, 1.52 mm height, and 1.73 mm depth, this 2-pin component uses solder termination style for secure and effective PCB installation. The maximum DC resistance of 510 mΩ aids in minimizing power losses while maintaining performance.

This inductor is molded and RoHS compliant, indicating suitability for environmentally conscious manufacturing. The product is packaged on reels for seamless use in automated assembly lines and is sourced from Taiwan, Province Of China.

Designed for surface mount PCB applications with stable inductance. High quality factor ensures minimal signal loss in circuits. Robust thermal rating from -40°C to 125°C supports diverse environments. Low DC resistance enhances power efficiency in electronic designs.

Compliant with RoHS standards for environmental safety. Packaged on reels to facilitate high volume manufacturing automation.

Ideal for industrial, telecommunications, and consumer electronics applications, this TE Connectivity surface mount inductor ensures dependable performance in compact PCB designs. Explore more components in the Surface Mount Inductors category for your electronics design requirements on EnvMart.
