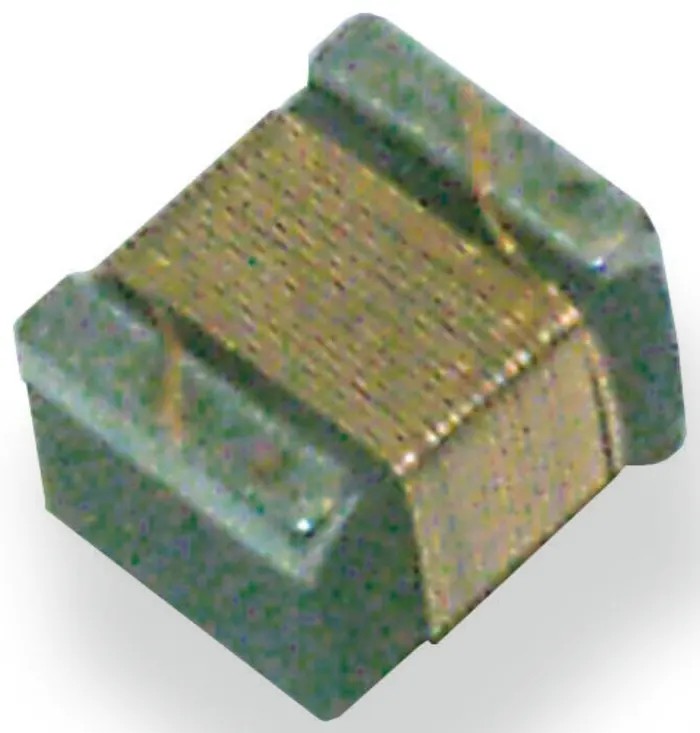

TE Connectivity Wirewound Surface Mount Inductor 100 nH ±5% 400 mA Idc 1.4 GHz Q34 0603 36501JR10JTDG
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 1.02mm |
| Length | 1.8mm |
| Model | 36501JR10JTDG |
| Depth | 1.12mm |
| Packaging | Reel |
| Series | 3650 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 100nH |
| Standards/Approvals | RoHS |
| Package/Case | 0603 |
| Maximum DC Current | 400mA |
| Pin Count | 2 |
| Maximum DC Resistance | 580mΩ |
| Inductance Tolerance | ±5 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 1.4GHz |
| Minimum Quality Factor | 34 |
| Inductor Construction | Wirewound |
Key Features
- Constructed with a ferrite core for enhanced magnetic properties.
- Supports maximum DC current of 400 mA for stable performance.
- 0603 package size with dimensions of 1.8 mm length, 1.02 mm height, and 1.12 mm depth.
- Offers high quality factor of 34 and self-resonant frequency up to 1.4 GHz.
- Designed for surface mount technology with solder termination style.
- RoHS compliant ensuring environmentally friendly standards.
- Operating temperature range from -40°C to 125°C for reliable use in various conditions.
- Wirewound construction provides precise inductance and excellent electrical characteristics.
Product Description
TE Connectivity 36501JR10JTDG wirewound Surface Mount Inductor delivers 100 nH inductance with ±5% tolerance, making it ideal for high-frequency electronic circuits and power applications. This component features a ferrite core, which offers superior magnetic properties to maintain consistent inductance and reduce losses.
The inductor supports a maximum DC current of 400 mA, enabling efficient performance in demanding environments. Its 0603 package case measures 1.8 mm in length, 1.02 mm in height, and 1.12 mm in depth, allowing for compact PCB layouts and integration in space-constrained assemblies.
Boasting a high quality factor (Q) of 34, this inductor ensures minimal energy loss at its maximum self-resonant frequency of 1.4 GHz. The wirewound construction technique guarantees precision and stability across operating conditions from -40°C up to 125°C. The termination style is solder, facilitating reliable connections on printed circuit boards.
Compliance with RoHS standards attests to its environmental safety, suitable for commercial, industrial, and automotive electronics applications where durability and performance are critical. This makes the 36501JR10JTDG inductor an excellent choice for power supplies, RF circuits, and signal processing equipment.
The product is supplied on reels, optimizing automated manufacturing processes and improving production efficiency. Its design benefits embedded systems requiring compact, high-performance passive components.
Constructed with a ferrite core for enhanced magnetic properties. Supports maximum DC current of 400 mA for stable performance. 0603 package size with precise dimensions for compact PCB usage. High quality factor of 34 ensures efficient energy handling.
Wirewound design provides consistent inductance levels. RoHS compliant for environmental and safety standards. Wide operating temperature range suitable for diverse applications. Explore more TE Connectivity inductors and related electronics components at EnvMart for your industrial, laboratory, and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model offers an inductance value of 100 nH with a tolerance of ±5%.
It supports a maximum DC current of 400 mA, ensuring stable performance in various applications.
The dimensions of the 0603 package are 1.8 mm in length, 1.02 mm in height, and 1.12 mm in depth.
The maximum self-resonant frequency is 1.4 GHz, allowing for efficient performance in high-frequency applications.
It features a wirewound construction, which provides precise inductance and excellent electrical characteristics.
The operating temperature range is from -40°C to 125°C, making it suitable for diverse environmental conditions.
It uses a solder termination style, facilitating reliable connections on printed circuit boards.
Yes, it is RoHS compliant, ensuring it meets environmental safety standards.
This model boasts a minimum quality factor of 34, indicating efficient energy handling.
The core material is ferrite, which enhances its magnetic properties.
It is supplied on reels, optimizing automated manufacturing processes and improving production efficiency.
The maximum DC resistance is 580 mΩ, which contributes to its performance efficiency.
