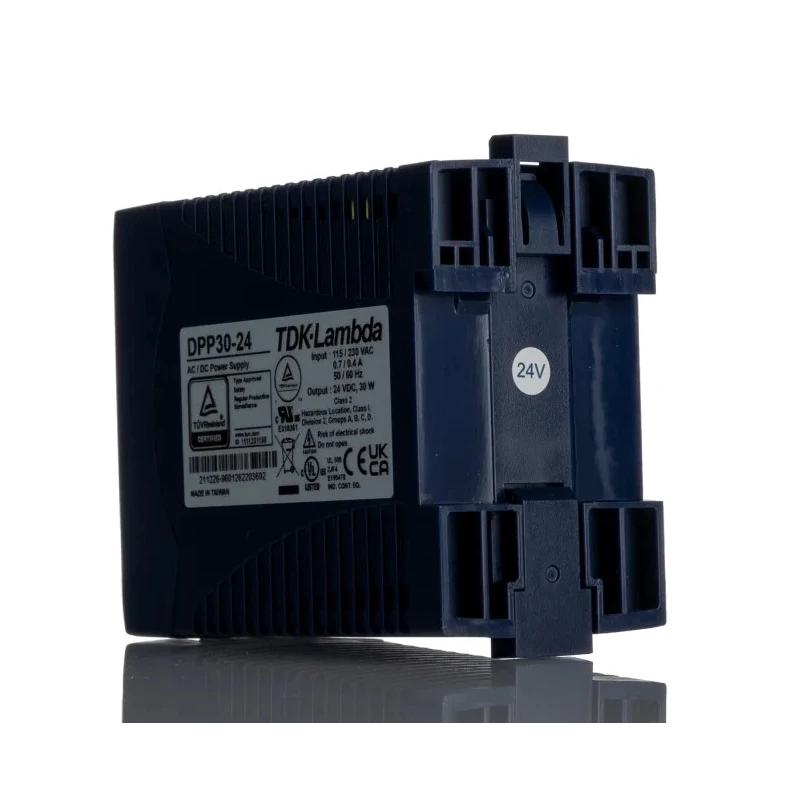

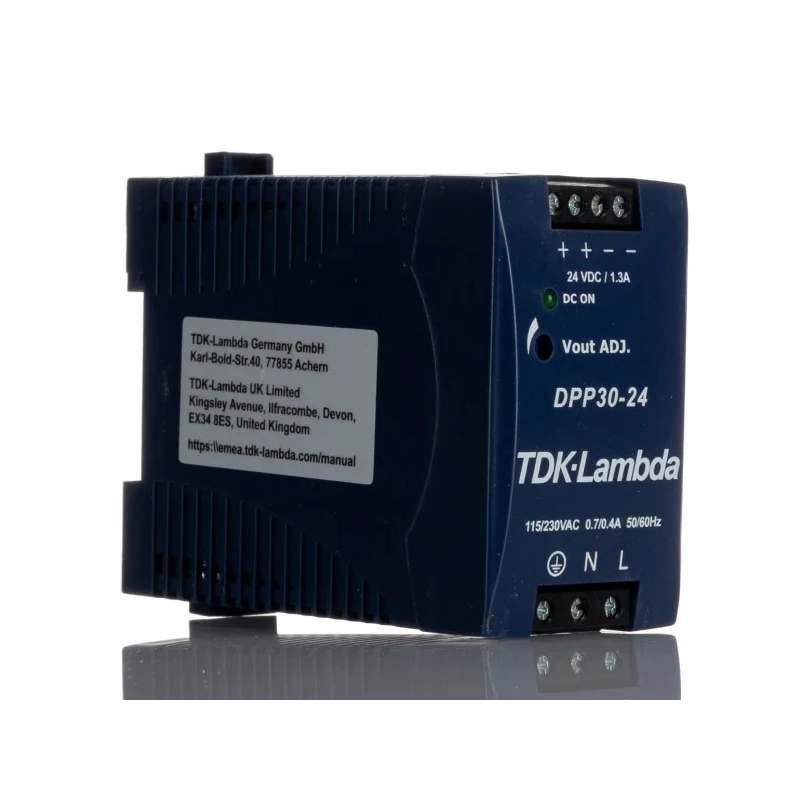

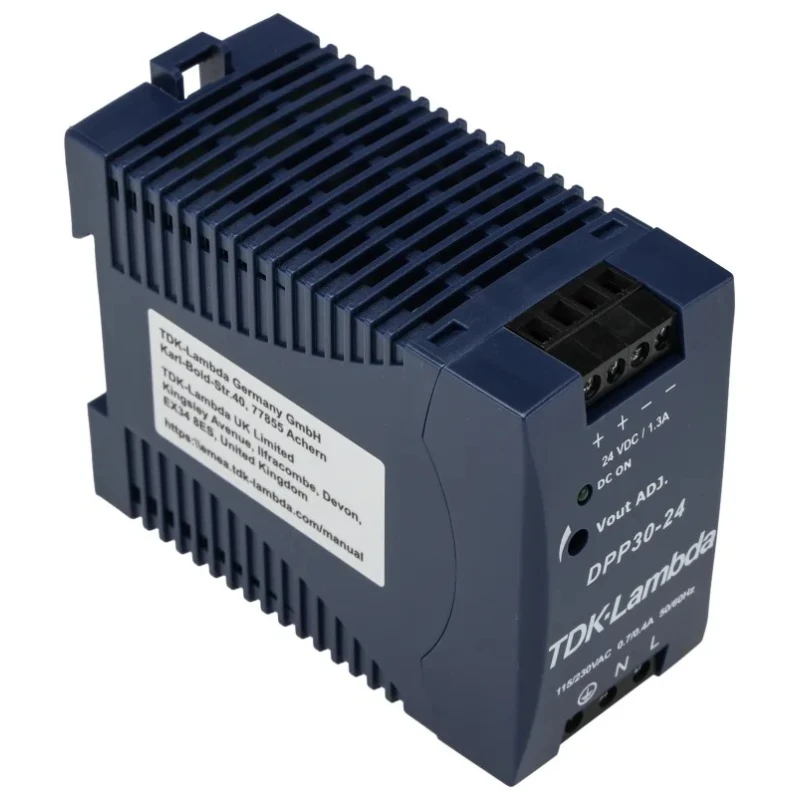

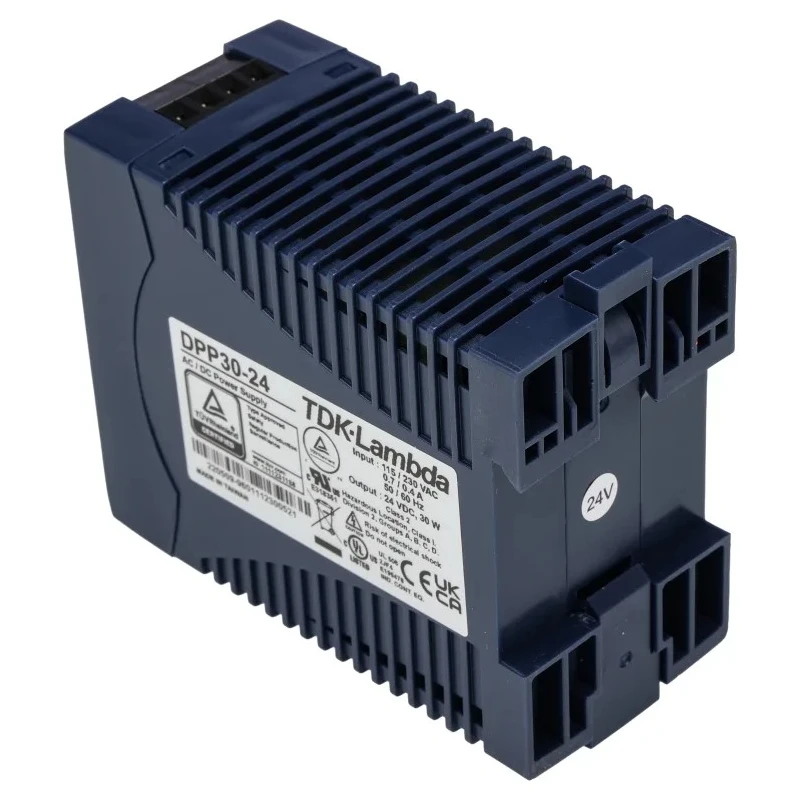

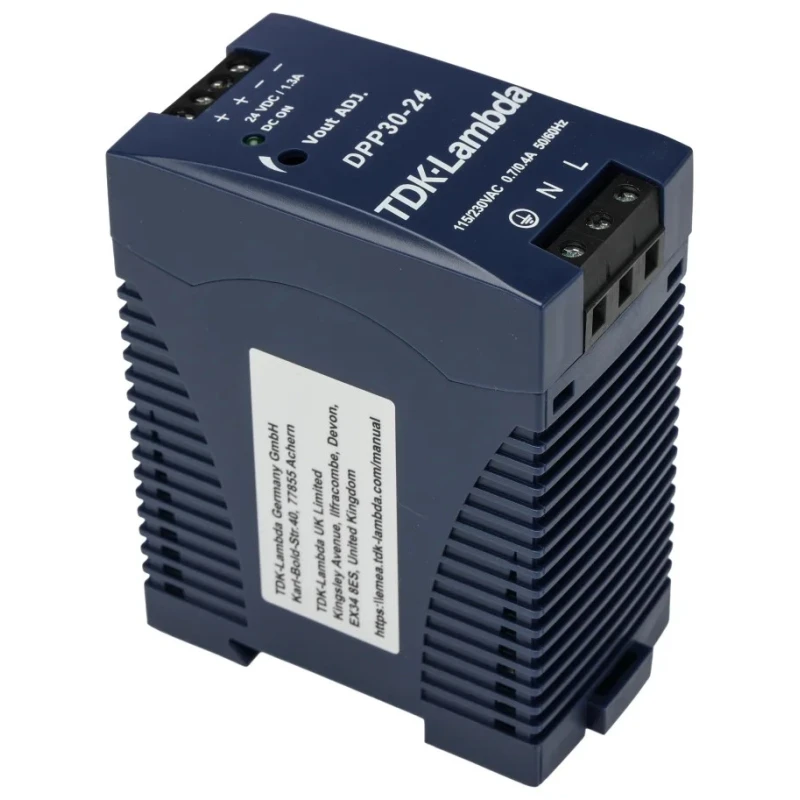

TDK-Lambda Switched Mode DIN Rail Power Supply 264V AC/DC Input 24V DC 1.3A Output 30W DPP30-24

TDK-Lambda DPP30-24 is a switched mode DIN rail power supply providing a robust 24V DC output at 1.3A current with a 30W power rating. It accepts a wide universal single-phase AC input from 85V up to 264V AC, accommodating industrial electrical environments. The output voltage is adjustable between 22.5V DC and 28.5V DC to suit different load requirements. Featuring compact dimensions of 75mm height, 45mm width, and 91mm depth, this power supply is designed for easy snap-on mounting onto standard DIN rails.

Engineered with high efficiency of 87%, the device minimizes power losses and heat dissipation, supporting environmentally friendly operation. The unit operates silently with convection cooling and includes an LED indicator for real-time status feedback. Its operating temperature range from -10°C to 71°C ensures dependable functioning across diverse industrial settings.

The DPP30-24 incorporates active power factor correction (PFC) and load sharing capabilities, enhancing power quality and system stability in automation and control applications. Although it is not certified for hazardous areas and does not carry additional approvals, it complies with CE and UL standards for safe usage.

Typical industrial applications include factory automation systems, industrial process control, test and measurement devices, and general industrial electronic power requirements. The compact, robust construction enables integration into control panels and electrical enclosures seamlessly.

Set contains a single TDK-Lambda DPP series switched mode DIN rail power supply module model DPP30-24 for efficient and reliable industrial power solutions. Compact DIN rail mount design ensures easy integration in control panels.

Wide input voltage range from 85V AC to 264V AC supports universal single-phase supply. Adjustable output voltage between 22.5 VDC to 28.5 VDC for flexible applications. High efficiency up to 87% reduces energy consumption and heat generation.

Convection cooled with LED indicator for operational status monitoring. Operating temperature range from -10°C to 71°C for reliable performance. Offers excellent load sharing and active power factor correction for better power quality.

Suitable for factory automation, industrial controls, process control, and test measurement. Explore the Electronics & Electricals category at EnvMart for more power supply options from TDK-Lambda and trusted industrial brands.
