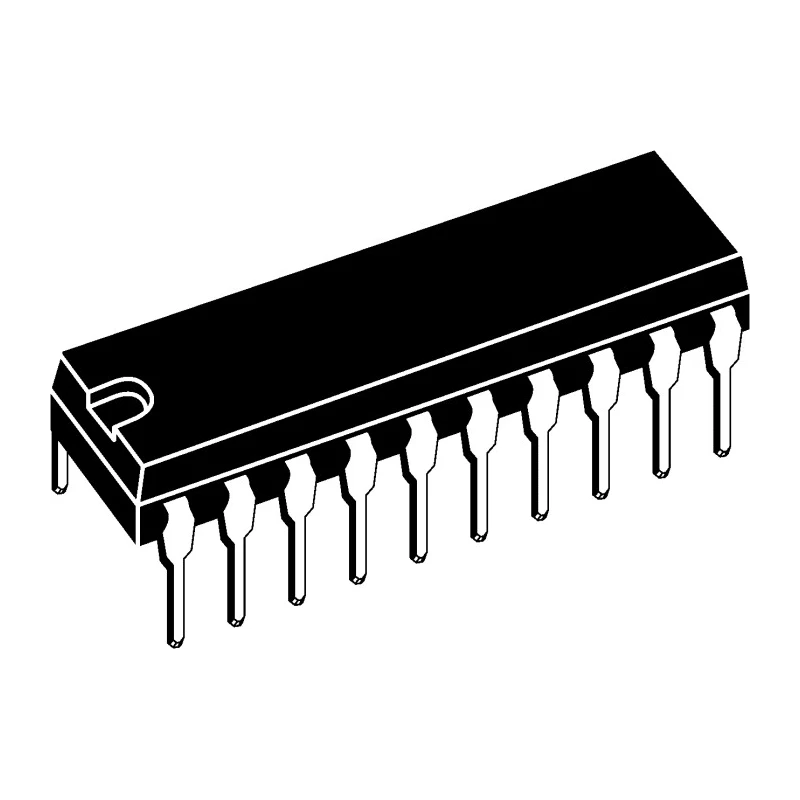

Analog Devices Digital to Analogue Converter 12 bit, Resistor String, R-2R Architecture, Parallel Interface AD7548JNZ
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 12 bit |
| Brand | Analog Devices |
| Height | 3.6mm |
| Length | 27.1mm |
| Model | AD7548JNZ |
| Width | 6.4mm |
| Mount Type | Through Hole |
| Settling Time | 1.5μs |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Interface Type | Parallel |
| Architecture | Resistor String, R-2R |
| Pin Count | 20 |
| Maximum Supply Voltage | 15V |
| Minimum Supply Voltage | 5V |
| AD7548JN, 12-Bit General Purpose DAC Parallel, 20-Pin PDIPBrand | Analog Devices |
Key Features
- Single channel configuration capable of 12-bit resolution.
- 20-pin PDIP package suitable for through-hole mounting.
- Operating voltage range from 5V minimum to 15V maximum.
- Fast settling time of 1.5 microseconds for high-speed conversions.
- Wide operating temperature range from -40°C to 85°C.
- Compact dimensions of 27.1 mm length, 6.4 mm width, and 3.6 mm height.
- External voltage reference required for precise voltage control.
- No automotive or specific industry standards certifications applied.
Product Description
Analog Devices AD7548JNZ is a high-precision digital to analogue converter (DAC) designed for industrial and electronic component applications. This 12-bit DAC utilizes a resistor string and R-2R architecture to ensure accurate digital-to-analog conversions with a parallel interface for efficient data transfer.
The device comes in a 20-pin PDIP package, intended for through-hole mounting, with compact physical dimensions of 27.1 mm length, 6.4 mm width, and 3.6 mm height. It supports a minimum supply voltage of 5V and can operate up to 15V, allowing integration into a variety of power systems.
The fast settling time of 1.5 microseconds supports rapid response in control and signal processing applications. It operates reliably across a wide temperature range from -40°C to 85°C, making it suitable for demanding environments in industrial, laboratory, manufacturing, and electronics development settings.
This DAC requires an external voltage reference to achieve precise output voltage control and does not conform to specific automotive standards or approvals, emphasizing its general-purpose electronic component nature.
Single channel 12-bit resolution for accurate digital to analog conversion. Through-hole PDIP package designed for easy mounting and integration. Wide voltage supply range from 5V to 15V for diverse applications. Fast settling time of 1.5 microseconds enhances system responsiveness.
Operating temperature range from -40°C to 85°C supports harsh environments. Compact physical dimensions aid in space-constrained PCB designs. External voltage reference needed for customized output voltage accuracy. No automotive standard compliance, suitable for general electronic use.
This product is ideal for use in electronics manufacturing, industrial automation, laboratory instrumentation, and embedded system designs requiring precise digital to analog conversion. It is an essential component for engineers and designers working with analog signals and data acquisition systems.
Explore more Digital to Analogue Converters and related semiconductor components in EnvMart's comprehensive Electronics & Electricals category for efficient procurement and reliable sourcing.
