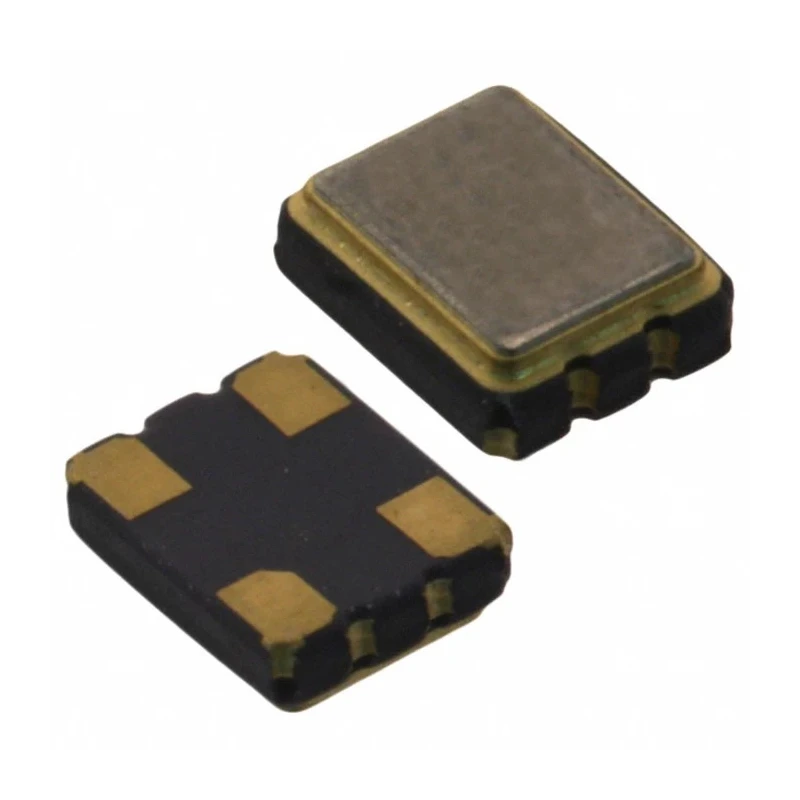

Renesas Electronics 20MHz XO Oscillator ±25 ppm LVCMOS 4-Pin Surface Mount XLH736020.000000I
Specifications
| Country of Origin | India |
|---|---|
| Brand | Renesas Electronics |
| Operating Temperature | -20°C to +70°C |
| Height | 1.3mm |
| Length | 7mm |
| Model | XLH736020.000000I |
| Width | 5mm |
| Mount Type | Surface |
| Series | XL |
| Maximum Operating Temperature | 70°C |
| Output Frequency | 20MHz |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -20°C |
| Supply Voltage | 2.5V or 3.3V |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | -0.5V |
| Oscillator Type | XO |
| Output Level | LVCMOS |
| Output Types | LVDS, LVPECL, LVCMOS |
Key Features
- Operates at output frequency of 20MHz.
- LVCMOS output level compatible with modern electronics.
- Compact 4-pin surface mount package measuring 7 x 5 x 1.3 mm.
- Wide operating temperature range from -20°C to +70°C.
- Supply voltage options of 2.5V or 3.3V for versatile power compatibility.
- Complies with RoHS standards for environmental safety.
- Low phase jitter ranging typically between 750 to 890 fs over 12 kHz to 20 MHz bandwidth.
- Suitable for applications requiring ultra-precision clock signals such as industrial, communication, and consumer electronics.
Product Description
Renesas Electronics XLH736020.000000I is a 20MHz XO crystal oscillator featuring ±25 ppm frequency stability with LVCMOS output in a compact 4-pin surface mount package. Designed for reliability and precision, this oscillator operates within a supply voltage range of 2.5V or 3.3V and performs reliably over an industrial temperature range of -20°C to +70°C.
The XL series from Renesas incorporates proprietary ASIC technology to deliver ultra-precision timing with typical phase jitter between 750 to 890 femtoseconds over a 12 kHz to 20 MHz bandwidth, making it suitable for high-performance electronic systems.
This unit is RoHS compliant and measures 7mm in length, 5mm in width, and 1.3mm in height, providing a compact footprint ideal for modern PCB layouts requiring surface mount devices.
Output types supported include LVDS, LVPECL, and LVCMOS, with this model specifically offering LVCMOS output, perfect for digital logic applications. Common use cases include industrial automation, communications equipment, instrumentation, computing, and other embedded systems requiring stable and accurate clock signals.
Operates at 20MHz output frequency with ±25 ppm frequency stability. Compact 4-pin surface mount package optimized for PCB space efficiency. Industrial operating temperature range from -20°C to +70°C. Low phase noise and jitter characteristics enable precise timing.
RoHS compliant ensuring reduced environmental impact. Supply voltage compatibility of 2.5V or 3.3V. Explore more electronic components and Oscillators in the EnvMart Electronics Components category for your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The oscillator operates at an output frequency of 20MHz.
It operates within an industrial temperature range of -20°C to +70°C.
This model is compatible with supply voltages of 2.5V or 3.3V.
The package measures 7mm in length, 5mm in width, and 1.3mm in height.
It provides LVCMOS output, and also supports LVDS and LVPECL output types.
The typical phase jitter ranges between 750 to 890 femtoseconds over a bandwidth of 12 kHz to 20 MHz.
This model complies with RoHS standards for environmental safety.
It features a 4-pin configuration.
It is classified as a crystal oscillator (XO).
It is suitable for applications in industrial automation, communications equipment, instrumentation, and computing.
The maximum supply voltage is 5V, with a minimum of -0.5V.
This oscillator is part of the XL series from Renesas Electronics.
