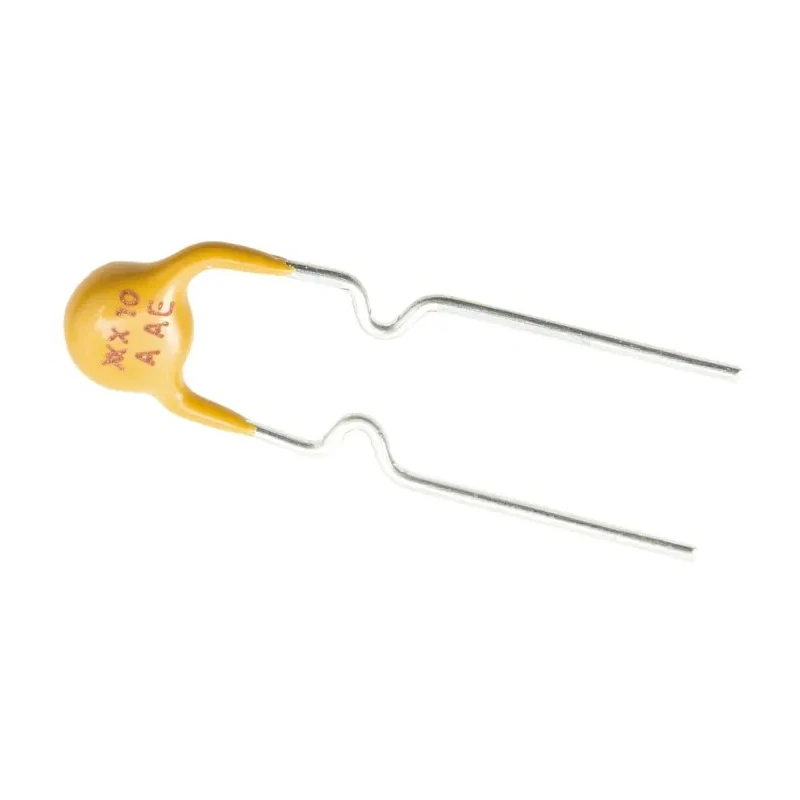

Littelfuse Resettable Fuse 0.1 A, 60 V, Radial Lead RXEF010

The Littelfuse RXEF010 resettable fuse is a PolySwitch™ RXE Series device designed for protection of electrical and electronic circuits against excessive currents up to a hold current of 0.1 A and voltage rating of 60 V. Featuring a radial lead orientation, this fuse provides a fast response with a typical time to trip of 4 seconds at fault condition, safeguarding sensitive components reliably.

With compact measurements of 7.4 mm length, 11.6 mm height, and 3 mm width, it integrates easily into circuit boards and electronic assemblies. The fuse exhibits a low resistance characteristic (minimum resistance 2.5 Ω to maximum 7.5 Ω) while dissipating up to 0.38 W of power, enabling efficient current limiting and thermal management.

Certified to meet CSA, TUV, RoHS, CQC, and UL approvals, the RXEF010 ensures compliance with global safety standards. It operates safely within a temperature range from -40°C to 60°C, making it suitable for demanding industrial, automotive, and telecommunications applications.

This resettable fuse reset automatically thousands of times without the need for replacement, thus minimizing maintenance downtime and inventory costs. Common uses include protection of computers, printers, satellite video receivers, modems, USB hubs, game machines, phones, fax machines, instrumentation, and control devices.

Low hold current of 0.1 A for sensitive circuit protection. 60 V voltage rating for widespread electronic application compatibility. Fast trip time of approximately 4 seconds ensures quick fault clearing. Small size enables use in compact electronic designs.

Radial lead design simplifies PCB assembly and soldering. RoHS-compliant and halogen free for environmental safety. Multiple international safety approvals including UL and CSA. Maintenance free operation reduces lifecycle cost.

Wide operating temperature range from -40°C to 60°C ensures versatility. Suitable for industrial, telecommunications, automotive, and consumer electronics. Explore our catalogue for more Littelfuse Resettable Fuses and other electronic protection devices to ensure reliable performance in your critical electrical systems.
