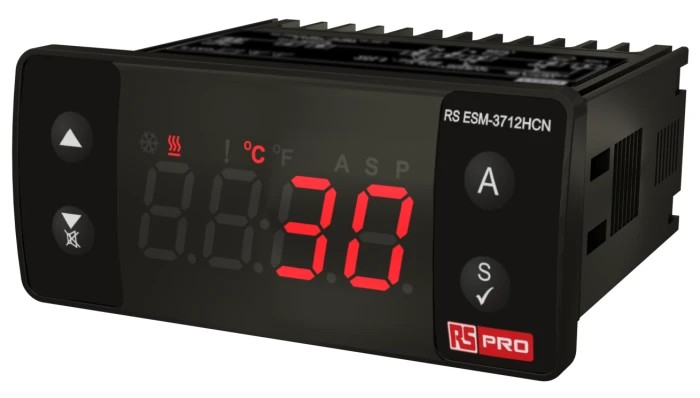

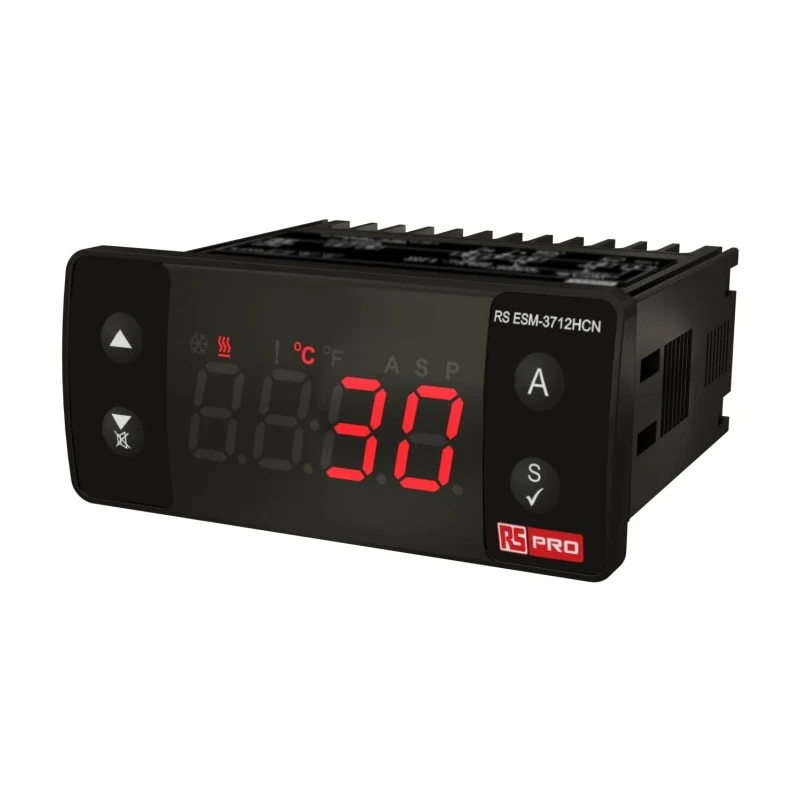

RS PRO Panel Mount On-Off Temperature Controller 1 Input, 1 Output Relay, 230V, LED Display 222-8133
Specifications
| Country of Origin | Turkey |
|---|---|
| Display Type | LED |
| Brand | RS PRO |
| Length | 77mm |
| Model | 222-8133 |
| IP Rating | IP20, IP65 |
| Width | 35mm |
| Mount Type | Panel Mount |
| Number of inputs | 1 |
| Output type | Relay |
| Series | RS PRO |
| Input Type | PT100 |
| Maximum Operating Temperature | 80°C |
| Control Type | On-Off |
| Minimum Operating Temperature | -30°C |
| Maximum Current | 16A |
| Number of outputs | 1 |
| Standards/Approvals | CE |
| Maximum Supply Voltage | 230V |
Key Features
- The controller supports a maximum current of 16A with a supply voltage of 230V.
- It operates reliably within a temperature range of -30°C to 80°C.
- The LED display provides clear temperature readings and operating status.
- Panel mount design allows easy integration into control systems.
- Equipped with PT100 input for accurate temperature sensing.
- Offers security with password protection for programming settings.
- Compressor protection and selectable operation modes enhance device safety.
- Supports remote access and control via Modbus RTU protocol.
Product Description
RS PRO 222-8133 Panel Mount On-Off Temperature Controller is a versatile device designed for industrial cooling and heating process control, ensuring temperature stability where precision is crucial. The controller incorporates a robust on/off control system with defrost functionality and an easy-to-read four-digit LED display.
This temperature controller accommodates 1 input (PT100 sensor) and 1 output relay with a maximum current of 16A, operating on a supply voltage of 230V. It functions effectively across an operating temperature range from -30°C to 80°C, making it suitable for diverse industrial environments.
The user interface allows straightforward setting of temperature boundaries, alarm parameters, and defrost time adjustments from the front panel. Password protection secures the programming to prevent unauthorized changes. Additionally, the controller includes compressor protection delays and multifunctional operation modes to safeguard connected equipment.
Featuring Modbus RTU connectivity, this controller supports remote monitoring, control, and data collection, enhancing integration capabilities within complex automation systems.
Its panel mount configuration and IP20/IP65 ratings ensure reliable installation and protection against environmental factors. The device is CE approved and manufactured in Turkey, reflecting high standards of quality and safety.
The controller supports a maximum current of 16A with a supply voltage of 230V. It operates reliably within a temperature range of -30°C to 80°C. The LED display provides clear temperature readings and operating status. Panel mount design allows easy integration into control systems.
Equipped with PT100 input for accurate temperature sensing. Offers security with password protection for programming settings. Compressor protection and selectable operation modes enhance device safety. Supports remote access and control via Modbus RTU protocol.
Typical industrial applications include refrigeration systems, air conditioning and HVAC units, as well as temperature and ambient storage control. This reliable temperature controller is essential for ensuring operational efficiency and product quality in various process control environments.
Explore the RS PRO range on EnvMart for high-quality, tested industrial automation components suitable for varied industrial applications.
Explore more products in our Temperature Controllers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this temperature controller is 16A.
This model operates reliably within a temperature range of -30°C to 80°C.
It is equipped with a PT100 input for accurate temperature sensing.
It features a four-digit LED display that provides clear temperature readings and operating status.
It incorporates a robust on/off control system with defrost functionality.
Yes, it supports remote access and control via Modbus RTU protocol, enhancing integration capabilities.
It is manufactured in Turkey and is CE approved.
Typical applications include refrigeration systems, air conditioning, HVAC units, and temperature control in ambient storage.
