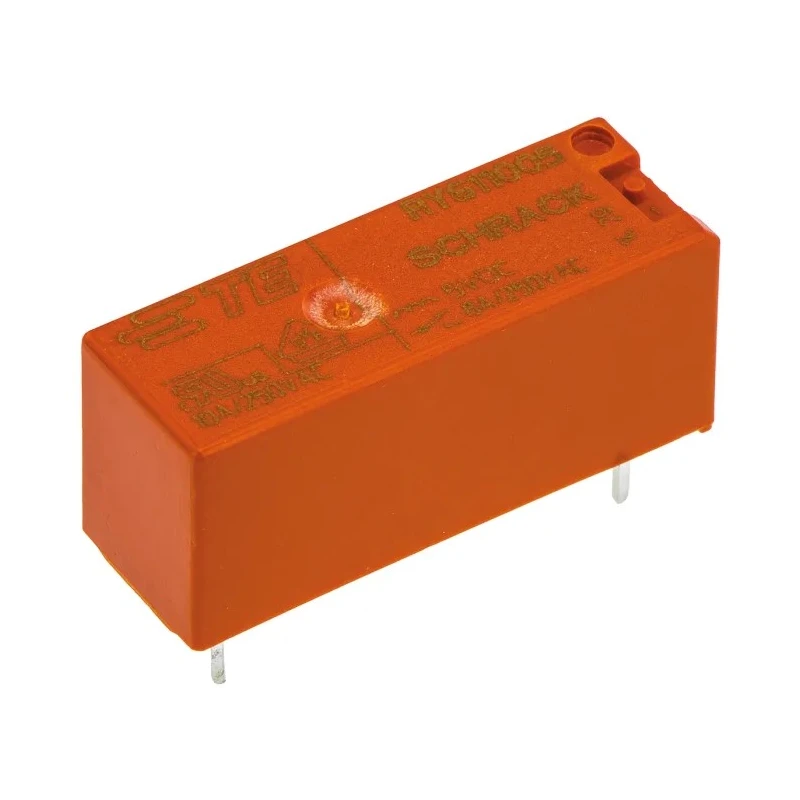

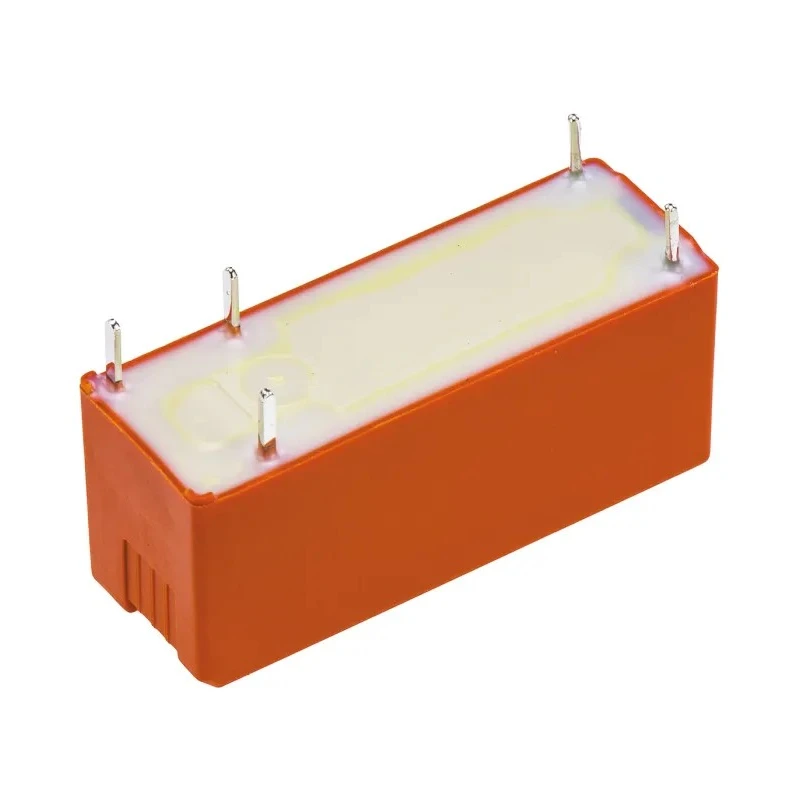

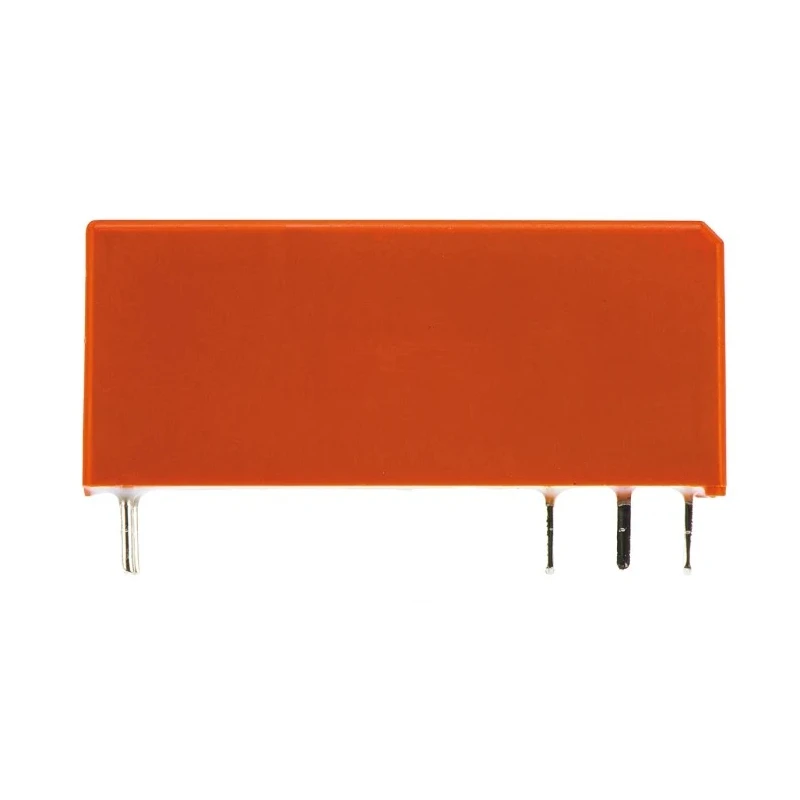

TE Connectivity PCB Power Relay 5V DC Coil 8A Switching Current SPDT RY611005
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TE Connectivity |
| Operating Temperature | -40 to + 70°C |
| Dimensions | H 12.3mm, W 28.5mm, D 10mm |
| Height | 12.3mm |
| Length | 28.5mm |
| Model | RY611005 |
| Width | 10.1mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | RY II |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Standards/Approvals | VDE, RoHS, IEC 60335-1 |
| Coil Resistance | 112Ω |
| Coil Voltage | 5V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 250mW |
| Creepage and clearance | 8mm |
Key Features
- The relay is designed for PCB mounting with solder terminals.
- It belongs to the RY II series offering reliable switching performance.
- Operates within a temperature range of -40°C to +70°C ensuring durability.
- Coil resistance is 112Ω with power consumption of 250mW.
- The contact material is silver alloy providing efficient conductivity.
- Suitable for switching voltages up to 250VAC and switching power of 2kVA.
- Complies with VDE, RoHS, and IEC 60335-1 standards for safety and environment.
- Manufactured in Czech Republic with quality assurance.
Product Description
TE Connectivity RY611005 PCB Power Relay is engineered for precision switching applications requiring a coil voltage of 5V DC and a switching current of 8A with SPDT contact configuration. This relay is optimized for PCB mounting, making it an excellent component for electronic devices and industrial automation systems.

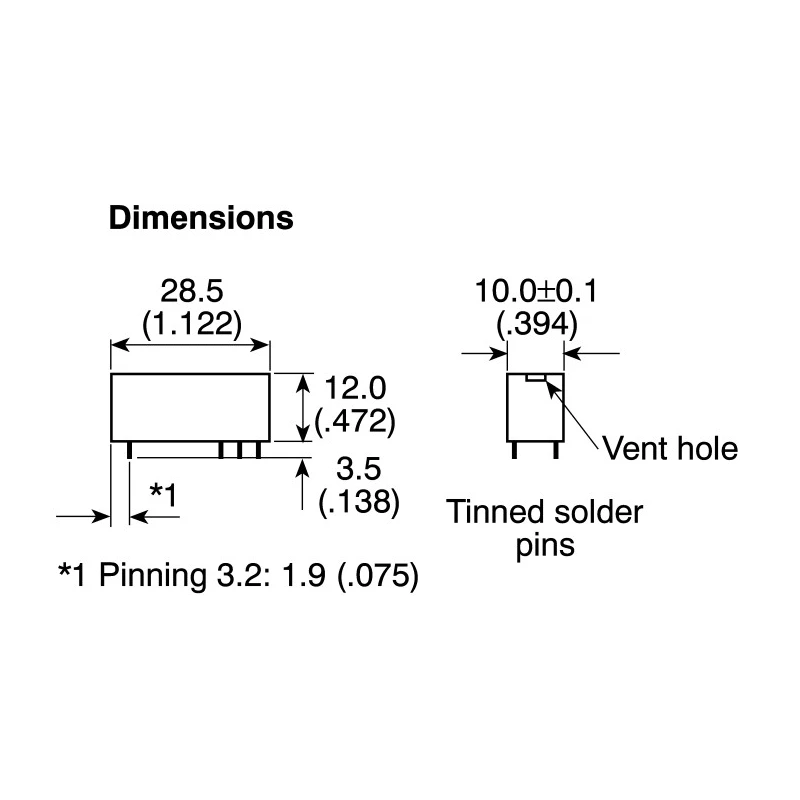

The RY II series relay offers an ideal balance of size and performance with compact dimensions: length of 28.5mm, width of 10.1mm, and height of 12.3mm. It operates reliably within a temperature range of -40°C to +70°C, making it suitable for harsh environments and extended temperature conditions.
Its coil resistance is rated at 112Ω with a coil power consumption of 250mW. The relay features silver alloy contacts that ensure low resistance and excellent conductivity, supporting switching voltages of up to 250VAC and switching power up to 2kVA. This makes it suitable for a wide range of industrial, electrical, and automation applications.
The product complies with major industry standards including VDE, RoHS, and IEC 60335-1, affirming its quality and environmental sustainability. The relay incorporates 3.2mm pinning and 8 mm creepage and clearance to ensure reliable operation and safety in PCB layouts.
Manufactured in Czech Republic, the RY611005 relay is ideal for use in industrial control panels, power supplies, HVAC systems, manufacturing automation, and other electrical control applications requiring dependable switching components.
The relay is designed for PCB installation with solder terminal type. 5V DC coil voltage ensures compatibility with common control circuits. SPDT contact configuration allows flexible switching capabilities. Compact size is suited for efficient PCB space utilization.
High standards compliance guarantees secure and safe operation. Durable silver alloy contacts maximize conductivity and longevity. Range of operating temperatures supports diverse environmental conditions. Creepage and clearance distances meet safety requirements.
Manufactured under stringent quality controls in Czech Republic. Explore more components in the Power Relays category for your electronics and electrical system needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current capacity of 8A.
This model operates with a coil voltage of 5V DC.
The relay has dimensions of 28.5mm in length, 10.1mm in width, and 12.3mm in height.
It operates within a temperature range of -40°C to +70°C.
The relay features a Single Pole Double Throw (SPDT) contact configuration.
The coil resistance is rated at 112Ω.
It supports switching voltages of up to 400V AC.
The contacts are made of silver alloy, ensuring efficient conductivity.
This relay complies with VDE, RoHS, and IEC 60335-1 standards.
It is designed for PCB mounting with solder terminals.
The coil has a power consumption of 250mW.
The relay is manufactured in the Czech Republic.
