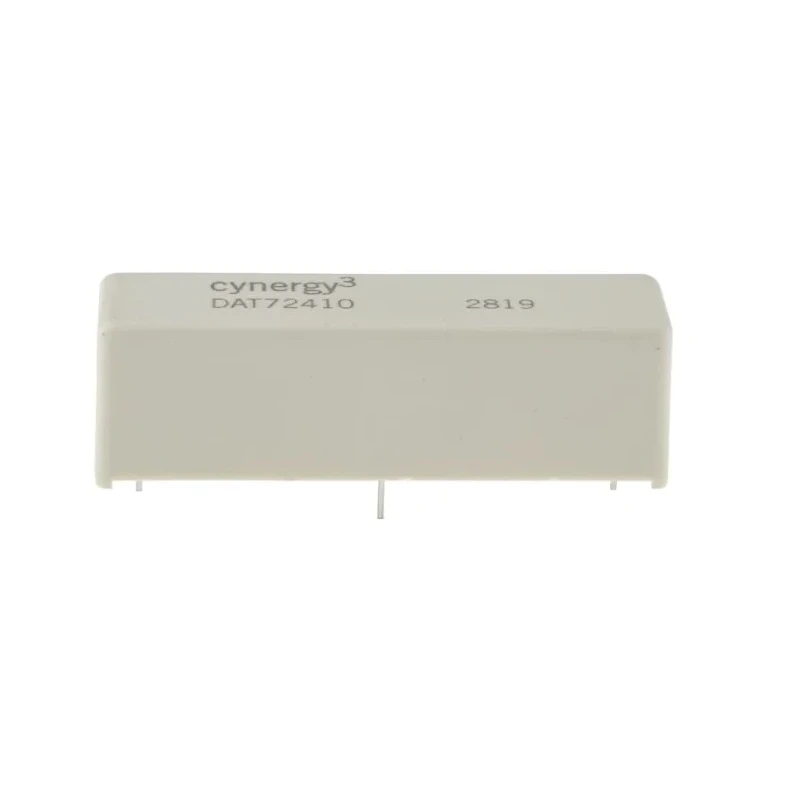

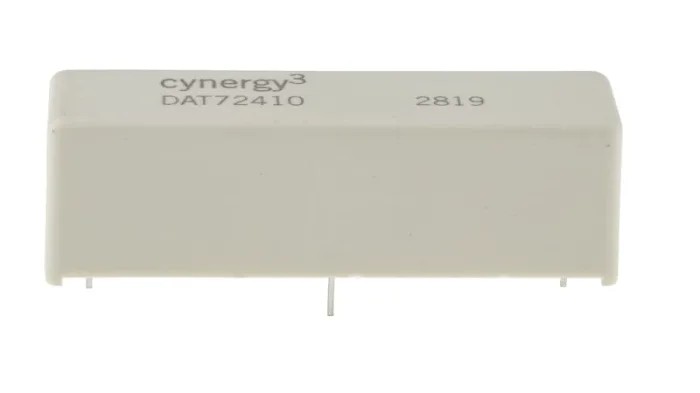

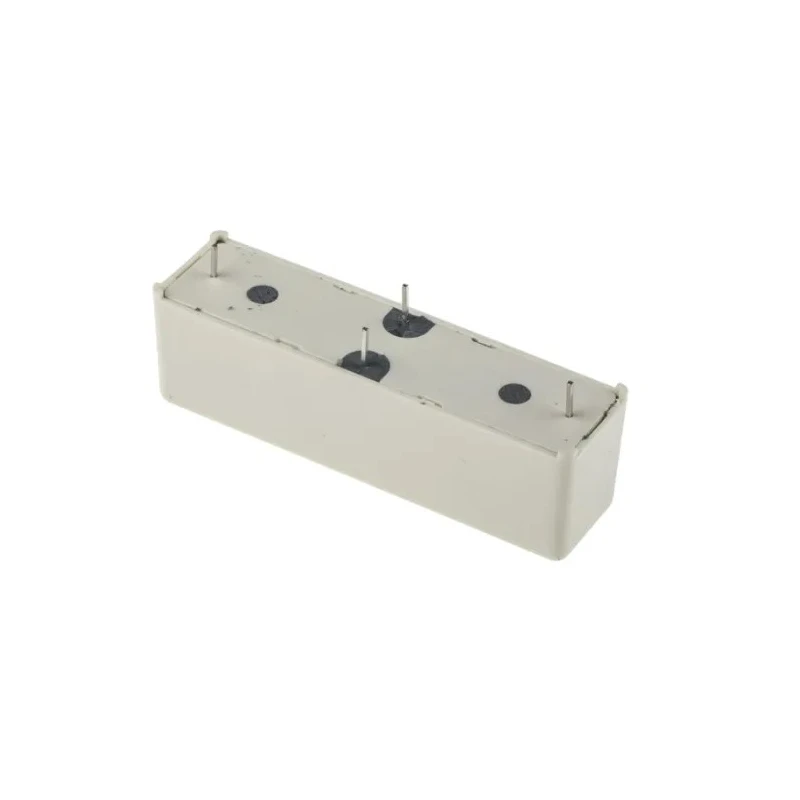

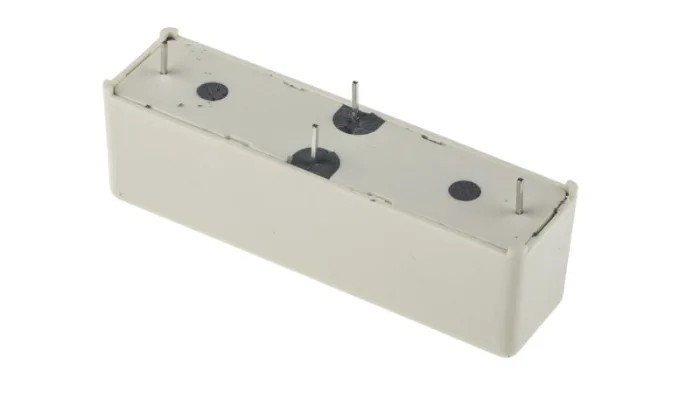

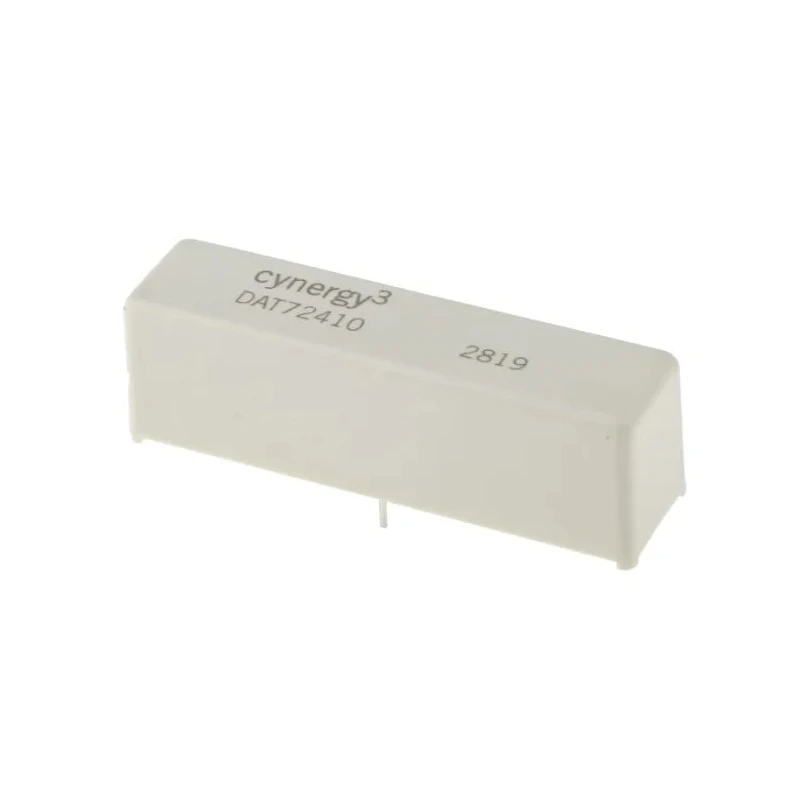

Cynergy3 PCB Reed Relay with 24V DC Coil, SPST Contact Configuration, 7000V DC Max Voltage, 2A Max Current, 780 Ω Coil

Cynergy3 DAT72410 PCB Reed Relay is a high-performance single pole, single throw (SPST) normally open relay equipped with a 24V DC coil and coil resistance of 780 Ω. This relay is designed for PCB mounting using the through-hole solder terminal method, ensuring a secure mechanical and electrical connection. It boasts a switching capacity of up to 2A current and 50W power, making it suitable for a variety of industrial, laboratory, and automation applications.

Featuring robust tungsten contacts that provide excellent hardness and wear resistance, the relay reliably switches voltages up to 7000V DC. Its hermetically sealed construction protects the sensitive reed switch from contaminants and corrosion, contributing to a long operational life of up to one million switching cycles. Additionally, the relay offers a rapid operation time of approximately 3 milliseconds including contact bounce, critical for fast switching requirements in sensitive electronic and medical equipment.

The Cynergy3 reed relay operates efficiently in temperature ranges from -20°C to +70°C, making it versatile for harsh environmental conditions. Electrical isolation between coil and contacts up to 17kV AC/DC ensures safety in high-voltage applications. This relay meets UL approval standards, affirming its high quality and reliable industrial performance.

Typical applications include electronic test equipment, high voltage power supplies, sensitive laboratory instruments, and cardiac defibrillator circuits where precise and reliable switching is essential. The DAT series from Cynergy3 is well known for robustness, reliability, and high-voltage handling capabilities.

This reed relay features a 24V DC coil and a coil resistance of 780 Ω for efficient operation. It supports a maximum switching current of 2A and switching power of 50W. The contact configuration is Single Pole Single Throw (SPST), normally open (NO).

The relay is PCB mountable with solder terminals for secure and reliable connections. Operating temperature ranges from -20°C to 70°C, suitable for harsh industrial environments. Robust tungsten contacts provide exceptional hardness and resistance to wear.

Features a hermetically sealed design to protect against contamination and corrosion. High isolation voltage of 17kV AC/DC between coil and contacts ensures electrical safety. Fast operating time of 3 milliseconds including bounce time.

The relay is compliant with UL standards, ensuring industrial quality and safety. Explore more Cynergy3 Reed Relays and related electrical components on EnvMart for diverse industrial, laboratory, and electrical automation needs.
