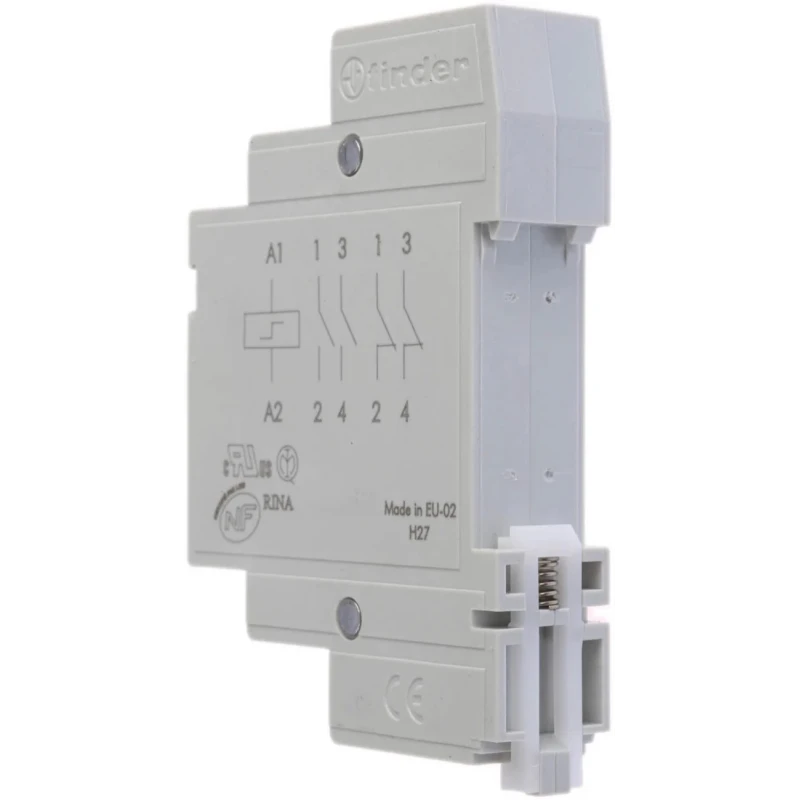

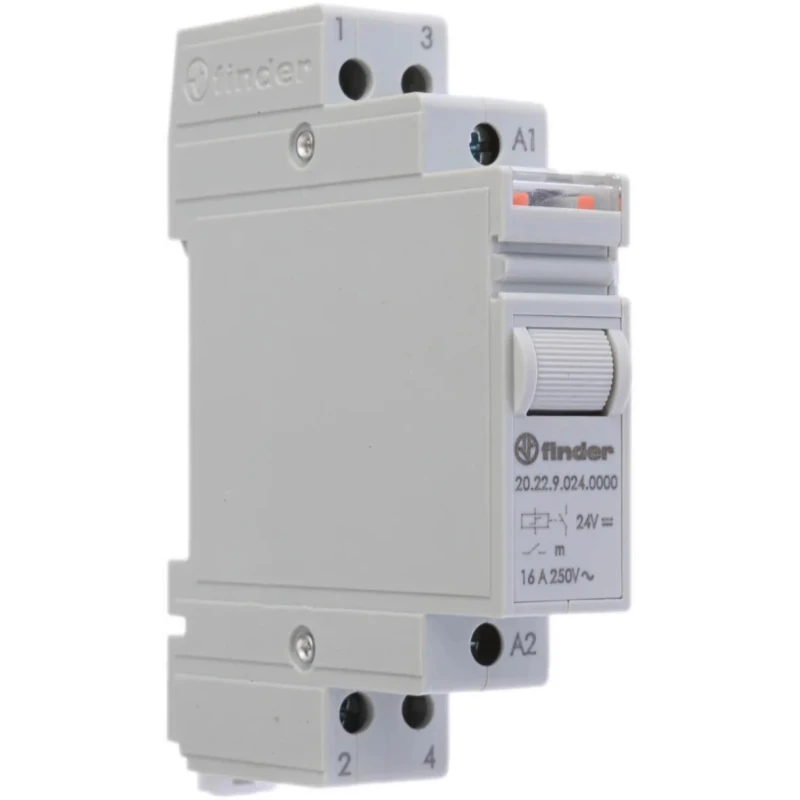

Finder DIN Rail Modular Step Relay 24V DC Coil 16A Switching Current DPST 20.22.9.024.0000

Finder 20.22.9.024.0000 DIN Rail Modular Step Relay is engineered for efficient automation and control in industrial, commercial, and residential electrical systems. Featuring a 24V DC coil and DPST contact configuration, it delivers reliable switching performance with a 16A current rating.

This relay mounts conveniently on DIN rails, allowing seamless installation within electrical panels and control enclosures. Its compact design (84mm height, 58.4mm length, and width) supports dense component arrangements without sacrificing performance.

Designed for heavy-duty use, this modular step relay offers a robust life expectancy of 300,000 switching cycles and integrates screw terminal connections for secure wiring. The silver alloy contacts ensure low resistance and excellent conductivity, while the coil resistance of 105Ω limits power consumption at 5W.

It is suitable for automation control of blinds, grilles, shutters, corridor lighting in hotels and hospitals, as well as residential bedroom and office lighting control. The operating temperature range from -40°C to 40°C guarantees reliable functionality in diverse environmental conditions.

Certified to meet international standards including EAC, cURus, CE, EN, RoHS, and RINA, this product is manufactured in France under stringent quality controls. Supports up to 16A switching current for robust performance.

24V DC coil voltage suitable for low voltage control systems. DPST (Double Pole Single Throw) contact configuration for diverse control scenarios. Screw terminal connections provide secure and easy wiring. Compact DIN rail mounting design ensures easy integration.

High durability with a life expectancy of 300,000 cycles. Operates reliably between -40°C and 40°C ambient temperature ranges. Compact dimensions: 84mm height, 58.4mm length, 58.4mm width. Constructed with silver alloy contact material for excellent conductivity.

Coil resistance of 105Ω and coil power consumption of 5W.

This relay is ideal for industrial automation, electrical panel installations, HVAC control, manufacturing processes, and commercial lighting solutions. Explore more reliable relay components in the EnvMart signal Relays category for your project needs.
