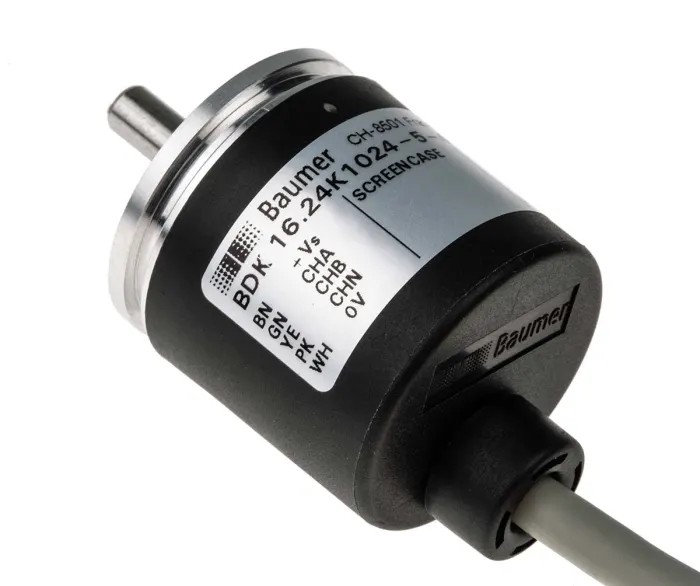

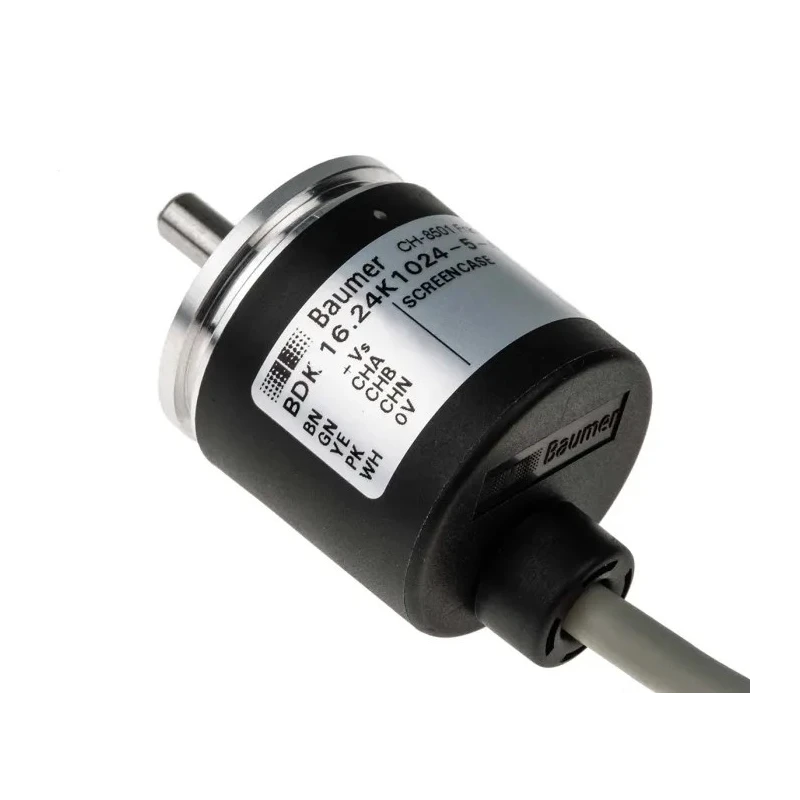

Baumer BDK Series Optical Incremental Encoder 30V dc, 1024 PPR, HTL/Push Pull Signal, Solid Shaft 5 mm BDK 16.24K1024-5-4

Baumer BDK 16.24K1024-5-4 Optical Incremental Encoder is a precision motion control sensor designed for industrial automation and control applications. Operating at a maximum supply voltage of 30 V dc, it employs advanced optical encoder technology to deliver 1024 pulses per revolution (PPR), enabling accurate position and speed measurement in rotary systems.

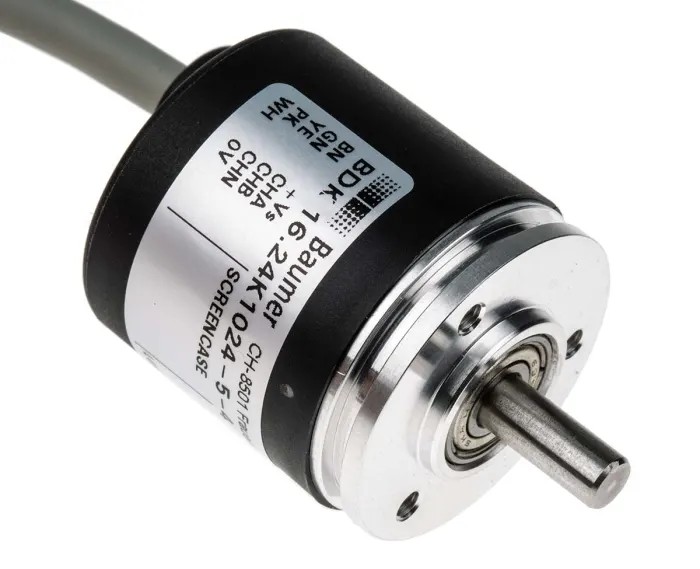

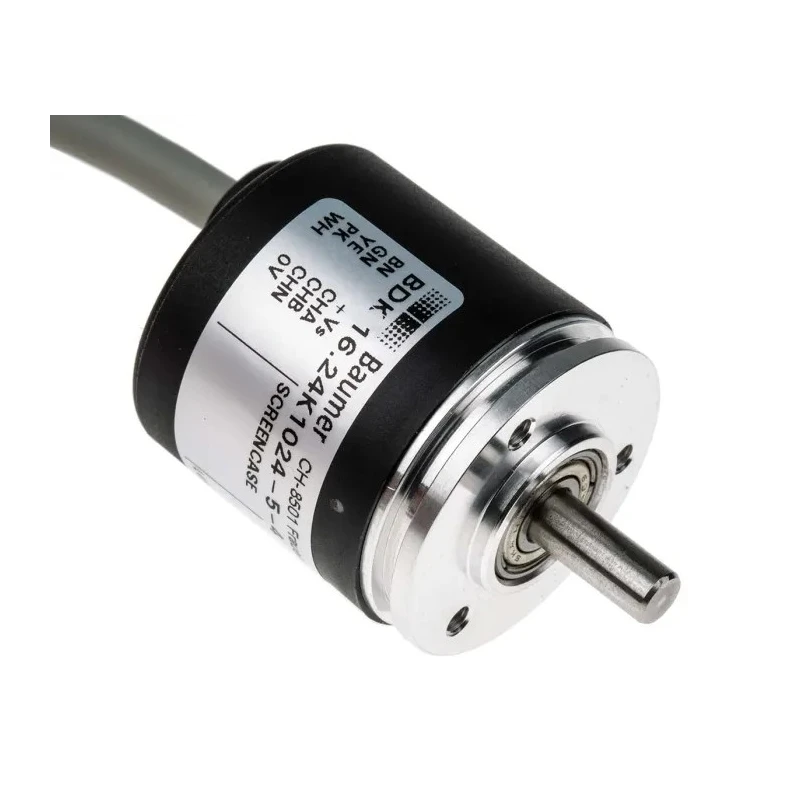

This model features a solid shaft of 5 mm diameter, ensuring robust mechanical connection and reliable signal transmission. The encoder incorporates HTL/Push Pull output signal type with a TTL interface, facilitating seamless integration with various automation controllers and electronic devices.

Constructed with a synchro flange mount, it offers easy installation and stable mounting options. It is rated with an ingress protection class of IP42, providing efficient protection against dust and water drops, suitable for moderate industrial environments.

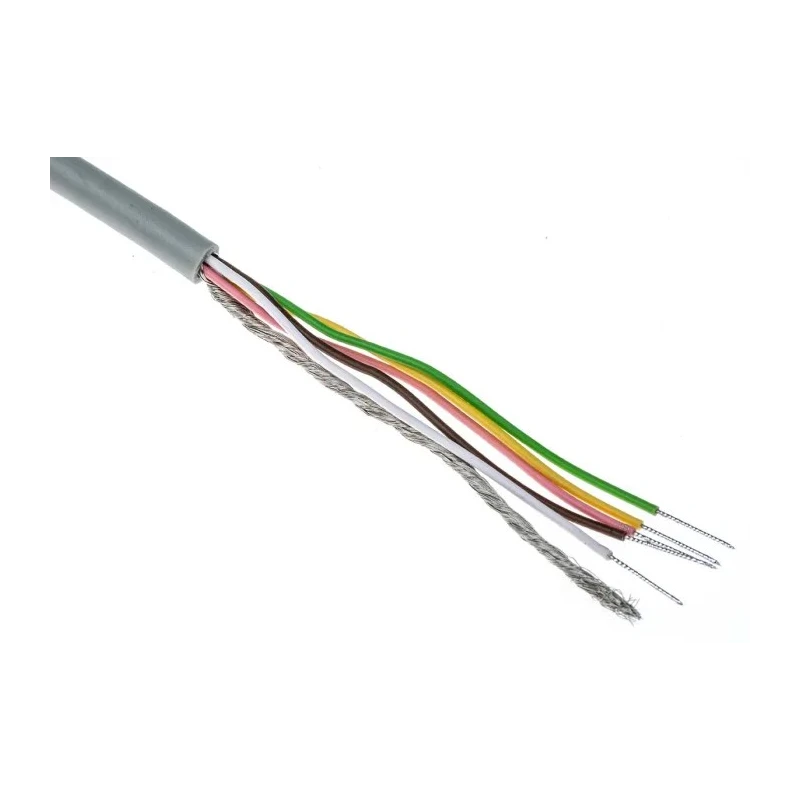

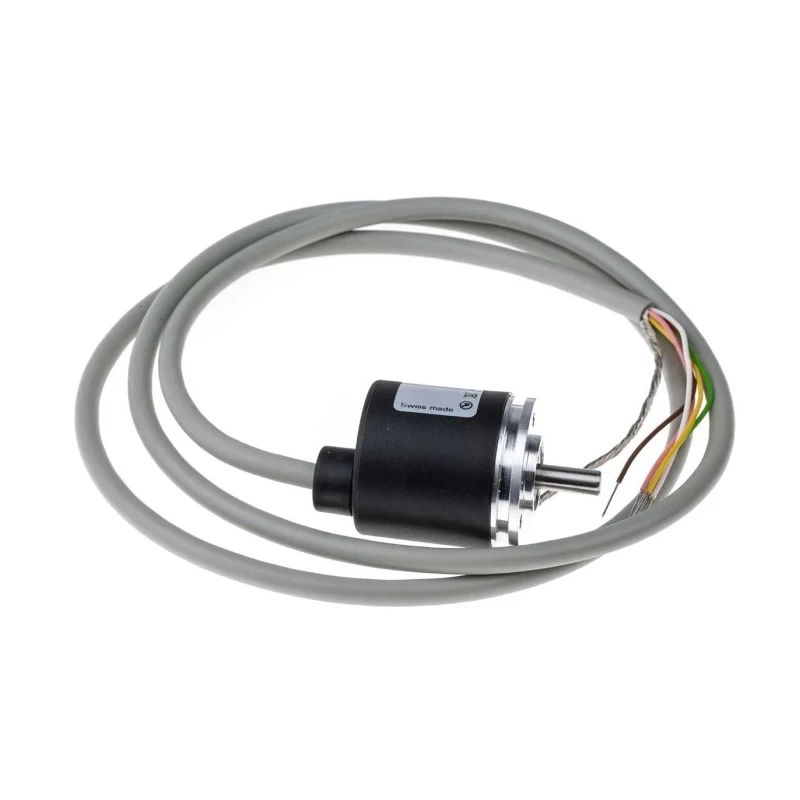

The encoder supports a switching frequency of up to 100 kHz enabling high-speed operation and rapid signal processing. It is equipped with a 1-meter cable termination to ease wiring and setup in control panels or machinery.

Designed to withstand harsh conditions, the device operates within a temperature range from -20°C to 85°C and complies with UL standards for safety and quality assurance. Originating from Switzerland, it reflects Baumer’s high engineering standards.

Operates up to 30 V dc supply voltage for electrical reliability. Offers 1024 pulses per revolution for high resolution performance. HTL/Push Pull output signals with TTL interface for flexible connectivity. Solid 5 mm diameter shaft with synchro flange mounting for secure installation.

Wide operating temperature range of -20°C to 85°C for versatile industrial deployment. IP42 rated enclosure providing effective protection in typical industrial environments. 1-meter cable terminal for convenient wiring.

Up to 100 kHz switching frequency supporting rapid signal response. UL certified product made in Switzerland ensuring quality and reliability.

This Baumer BDK Series Optical Incremental Encoder is ideal for applications in industrial automation, manufacturing machinery, robotics, and motion control systems that demand precise rotary feedback. Explore more options in Incremental Encoders at EnvMart for your sensor and control gear needs.
