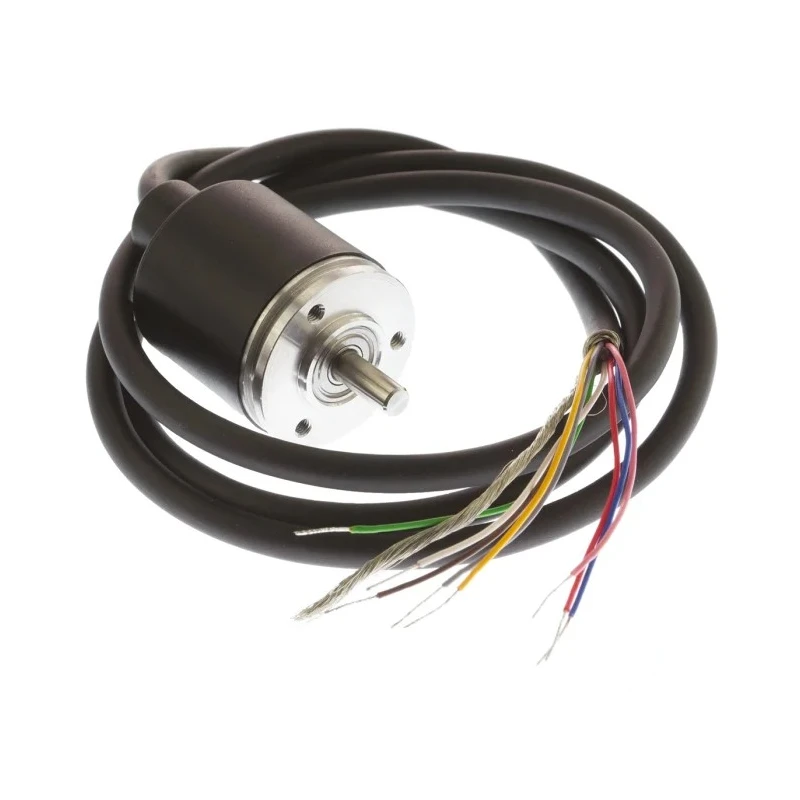

Baumer Optical Incremental Encoder 5V dc, 500 ppr, TTL RS422 Signal, Solid 5 mm Shaft BDK 16.05A500-5-4
Specifications
| Country of Origin | Switzerland |
|---|---|
| Brand | Baumer |
| Model | BDK 16.05A500-5-4 |
| IP Rating | IP42 |
| Mount Type | Synchro Flange Mount |
| Series | BDK |
| Overall Width | 30mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -20°C |
| Shaft Diameter | 5mm |
| Switching Frequency | 100kHz |
| Shaft Type | Solid |
| Terminal type | 1 m Cable |
| Interface Type | RS422 |
| Pulses per Revolution | 500ppr |
| Standards/Approvals | UL |
| Maximum Supply Voltage | 5V dc |
| Overall Depth | 34mm |
| Encoder Technology | Optical |
| Maximum Revolutions | 12000rpm |
| Output Signal Type | TTL, RS422 |
| Kubler 2400 Series Incremental Encoder 24V dcBrand | Kubler |
Key Features
- The encoder operates at a maximum speed of 12000 rpm and supports a switching frequency up to 100 kHz.
- It features a synchro flange mount with a 1 meter cable terminal type for easy integration.
- The device is rated IP42 for protection and operates within a temperature range of -20°C to 85°C.

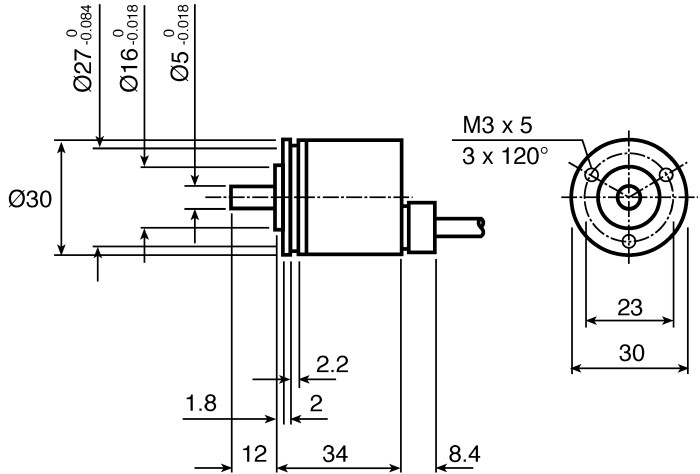

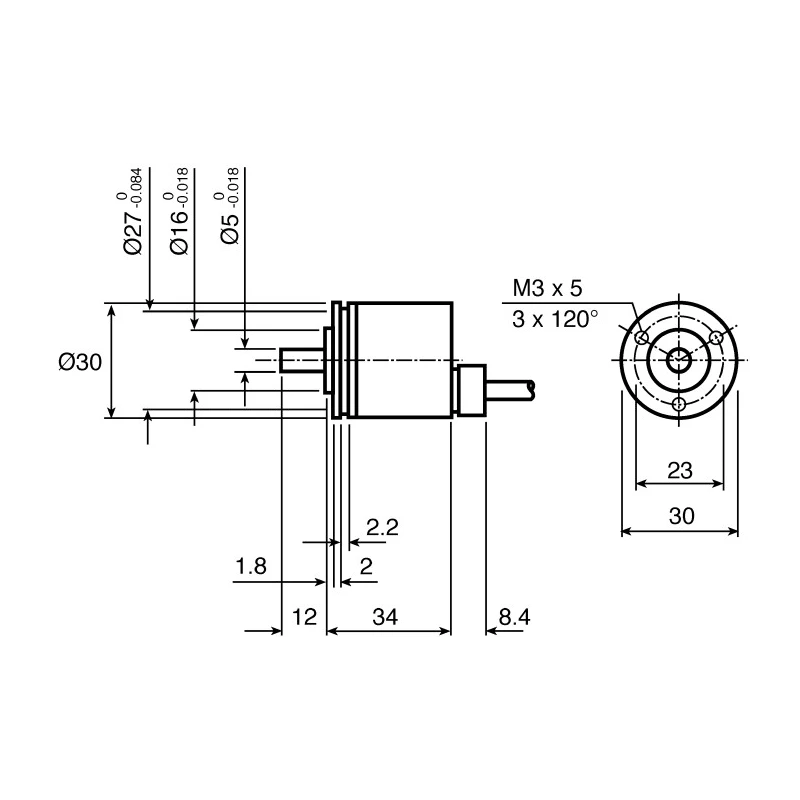

- Compact dimensions include an overall width of 30 mm and a depth of 34 mm.
- The encoder is UL approved and made in Switzerland, suitable for industrial automation and motion control applications.
- It supports push-pull or complementary versions, ensuring compatibility with various control systems.
- Ideal for precise position sensing in manufacturing, robotics, and other automation sectors.
Product Description
Baumer BDK 16.05A500-5-4 is a high-quality optical Incremental Encoder designed for precise motion control and automation tasks. It operates on a 5V dc supply and provides 500 pulses per revolution, delivering accurate position feedback.
The encoder features TTL and RS422 output signal types, enabling reliable data transmission in industrial environments. Its solid shaft with a diameter of 5 mm and synchro flange mount facilitate secure installation in diverse mechanical setups.
With a maximum speed rating of 12000 rpm and a switching frequency allowance of 100 kHz, this encoder is suitable for high-speed applications. The IP42 rating protects against dust and dripping water, making it reliable for many industrial settings.
Operating within -20°C to 85°C, the device maintains stability and consistent performance across a broad temperature range. Compact overall dimensions of 30 mm width and 34 mm depth make this encoder easy to incorporate into tight spaces in machinery or robotic systems.
The encoder is UL approved, ensuring compliance with safety and quality standards. Push-pull or complementary output versions provide versatility in electrical interfacing. Designed and manufactured in Switzerland, it reflects high-quality engineering standards for industrial use.
This Baumer encoder is ideal for applications requiring precise rotational position detection such as in manufacturing control systems, robotics, conveyor machinery, and industrial automation equipment. Its robust build and accurate signal output facilitate improved process control and system efficiency.
Explore the Electronics & Electricals category on EnvMart for more industrial sensors and automation components to complement your engineering solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum speed of this encoder is rated at 12000 rpm.
This model provides TTL and RS422 output signal types, ensuring reliable data transmission.
The encoder has an IP42 rating, which protects against dust and dripping water.
It operates within a temperature range of -20°C to 85°C.
The overall dimensions of this encoder are 30 mm in width and 34 mm in depth.
It features a solid shaft with a diameter of 5 mm.
The maximum switching frequency is up to 100 kHz.
It utilizes a synchro flange mount for secure installation.
This encoder provides 500 pulses per revolution (ppr).
It operates on a 5V dc power supply.
Yes, this model is UL approved, ensuring compliance with safety and quality standards.
The encoder is manufactured in Switzerland.
