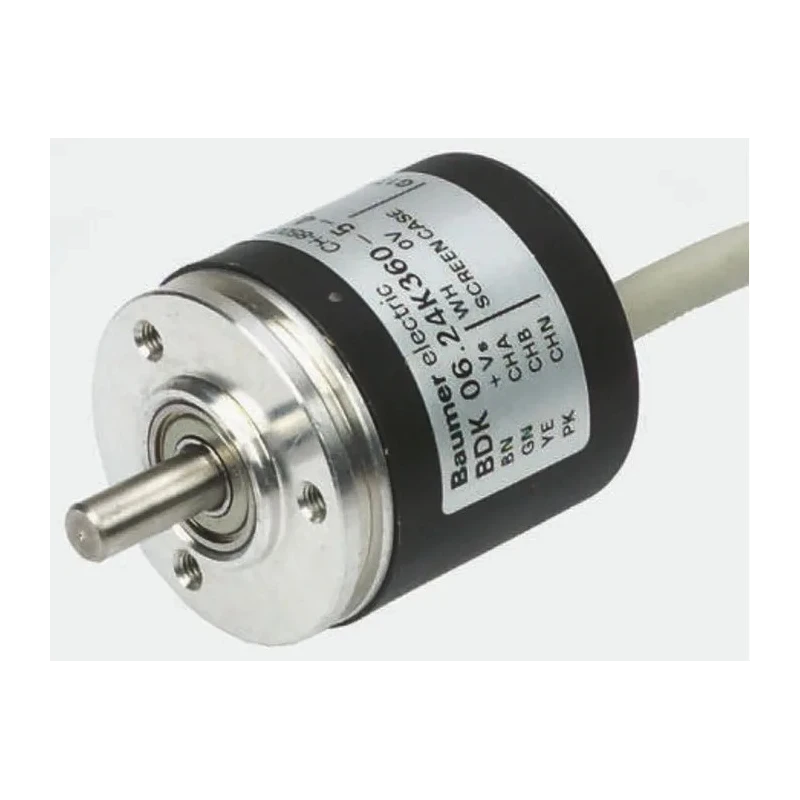

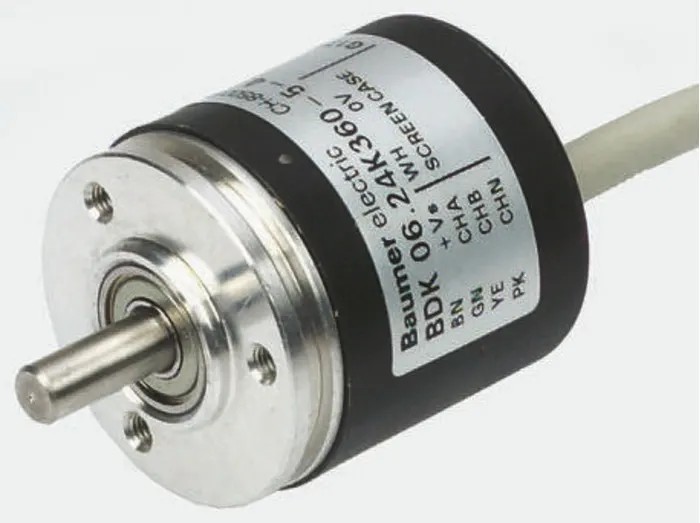

Baumer Optical Incremental Encoder 30V dc, 100 PPR, HTL/Push Pull Signal, Solid Shaft 5 mm, Synchro Flange BDK 16.24K100-5-4

Baumer BDK 16.24K100-5-4 optical incremental encoder operates with a 30V dc supply and delivers 100 pulses per revolution (ppr), making it suitable for precise motion control sensor assemblies.

This encoder uses optical encoder technology with a solid 5 mm diameter shaft allowing robust mechanical coupling. It is designed with a synchro flange mount that facilitates easy, stable mounting on machines and equipment.

The output signal type is HTL/Push Pull, providing reliable and noise-immune signals compatible with TTL interfaces. The unit supports a maximum rotational speed of 12,000 rpm and a switching frequency of 100 kHz, suitable for high-speed feedback control systems.

Constructed to meet UL standards, the encoder features an IP42 rating, protecting against solid particles and limited splashing water, and functions reliably within temperatures ranging from -20°C to 85°C.

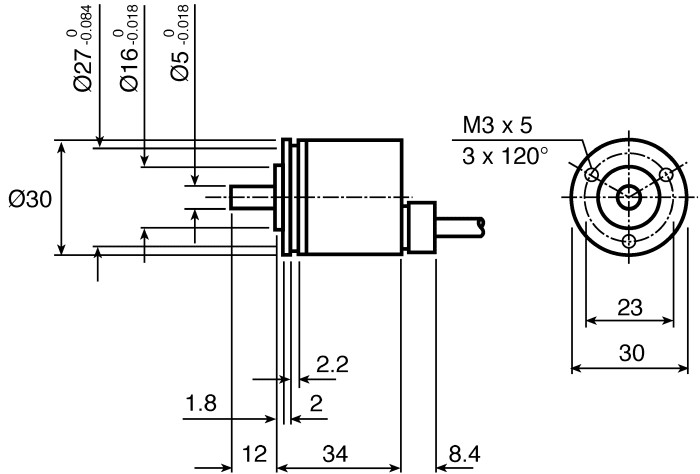

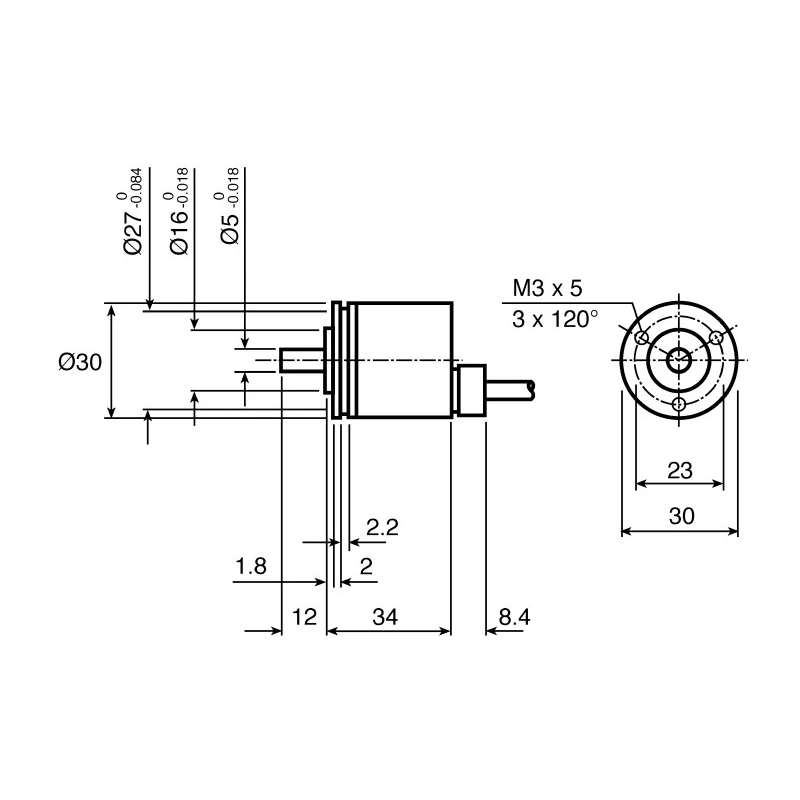

Electrical connection is provided through a 1 meter cable terminal, enhancing installation flexibility. The compact dimensions of 30 mm width and 34 mm depth make it ideal for space-constrained applications in industrial, automation, and manufacturing settings.

This model is made in Switzerland and represents Baumer's quality engineering in incremental rotary encoders, widely employed in industrial automation and motion control sensor applications.

Provides HTL/Push Pull output signal for reliable digital interfacing. Equipped with a solid shaft of 5 mm diameter suitable for mechanical coupling. Supports a maximum rotational speed of 12,000 rpm for high-speed operations.

Features a synchro flange mount for secure and precise installation. Rated IP42 for protection against solid objects and limited water ingress. Operates within a temperature range from -20°C to 85°C ensuring versatility in varied environments.

Includes a 1 meter cable terminal for easy electrical connection. Designed with UL standards compliance to assure quality and safety. Switching frequency of 100 kHz enables high-frequency signal processing. Explore the Baumer range of optical Incremental Encoders available at EnvMart for applications in electronics, automation, and control gear systems.
