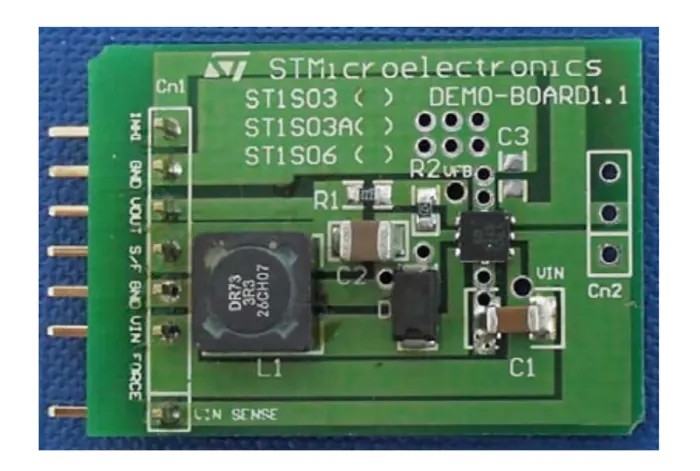

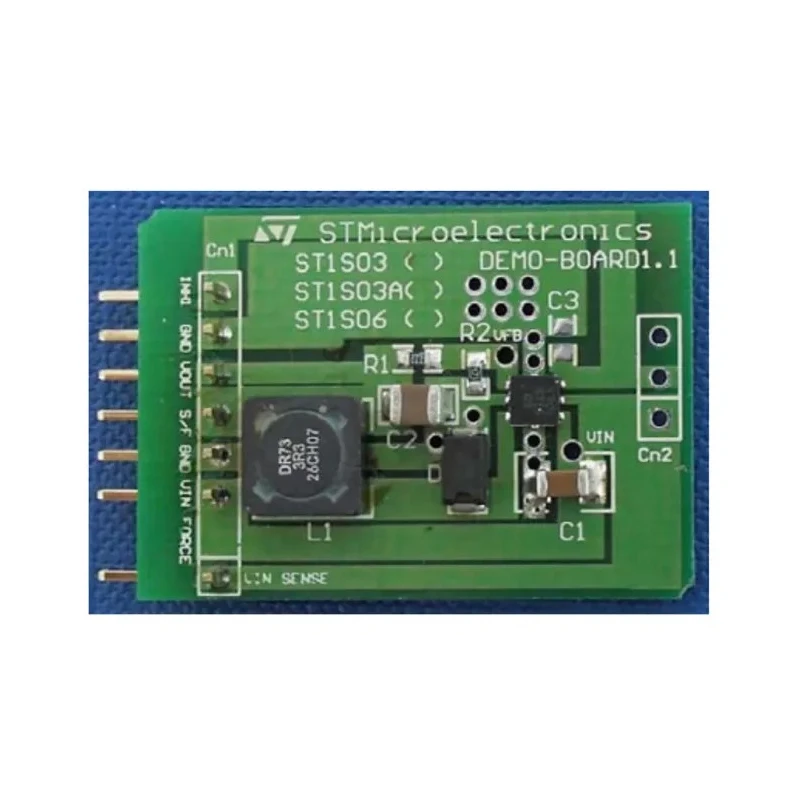

STMicroelectronics Power Management Demonstration Board for ST1S03 Featuring 1.5A Step-Down DC-DC Converter STEVAL-ISA042V2

STMicroelectronics STEVAL-ISA042V2 demonstration board is a power management development kit designed to supply the low-voltage digital core in hard disk drive applications efficiently. This evaluation board features the ST1S03 step-down DC-DC converter, capable of delivering up to 1.5 A output current within an input voltage range of 3 V to 16 V.

Utilizing a high switching frequency of 1.5 MHz, the design allows very compact footprint usage with tiny surface-mount components, minimizing space on printed circuit boards. The output voltage is adjustable via a resistor divider, providing flexibility to meet various voltage requirements.

The board guarantees low output ripple through its current-mode pulse-width modulation (PWM) control and by employing low equivalent series resistance (ESR) ceramic capacitors. These design features reduce electromagnetic interference and maintain signal integrity.

Thermal protection mechanisms safeguard the device from overheating, while current limiting prevents damage caused by accidental short circuits, enhancing operational reliability in industrial and laboratory testing environments.

The STEVAL-ISA042V2 is ideal for industrial applications involving HDD controller boards and any systems requiring efficient power delivery to low-voltage digital cores. It replaces bulky linear regulators previously used to manage high current loads, reducing power dissipation and improving energy efficiency.

Features an evaluation board kit using the ST1S03 device for efficient DC-DC step-down conversion. Operates over a wide input voltage range from 3 V to 16 V. High switching frequency of 1.5 MHz allows compact component design.

Low output ripple ensured by current-mode PWM topology and low ESR SMD ceramic capacitors. Thermal protection and current limiting for device safety. Suitable for powering low-voltage digital cores in HDD and similar applications.

Minimal external components required: inductor, Schottky diode, and capacitors.

This product is manufactured in Italy and complies with RoHS standards. It is intended for use in electronics industrial development, educational development tools, and power management applications.
