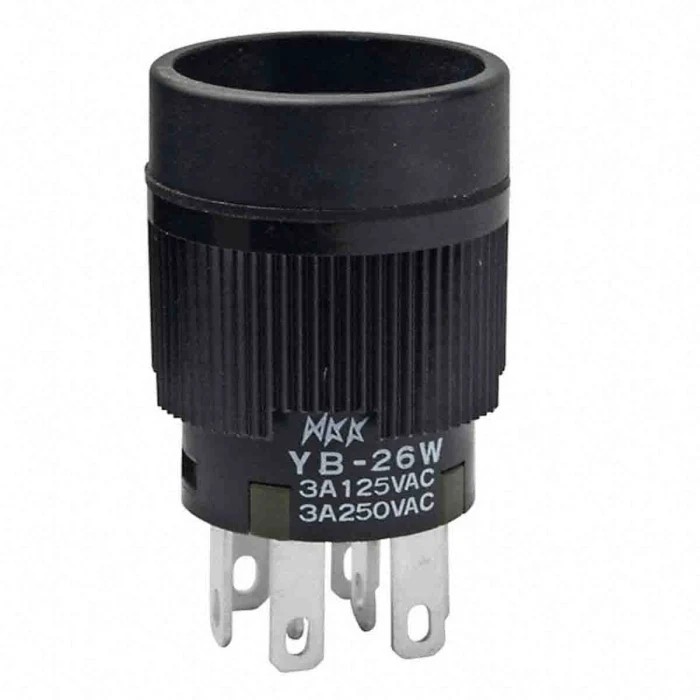

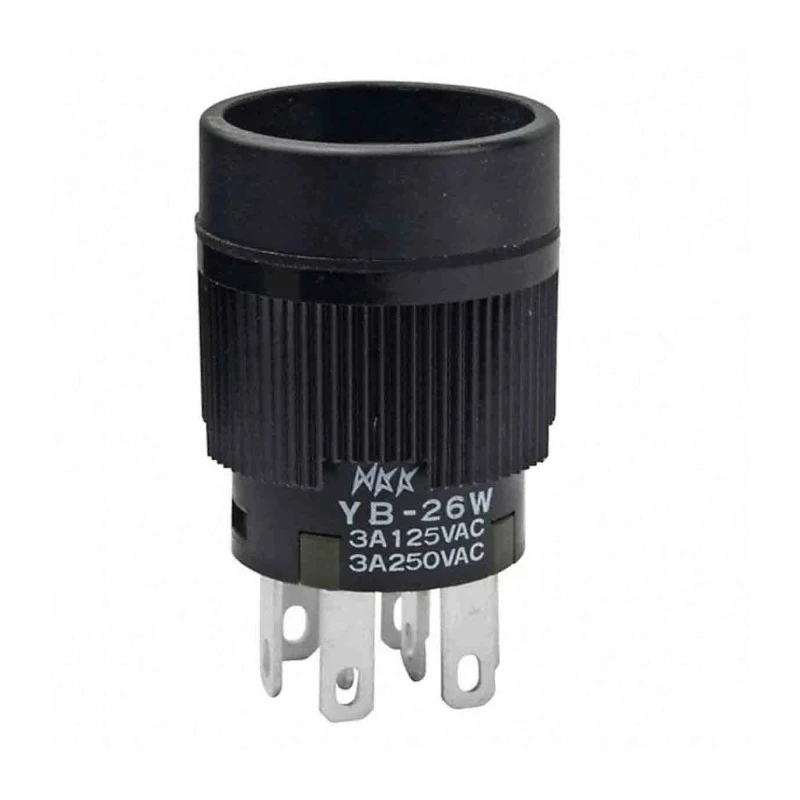

NKK Switches Illuminated Push Button Switch, On-On Operation, Panel Mount, 16 mm Cutout, DPDT, IP65, 30 V DC 250 YB26WCKW01

The NKK Switches YB26WCKW01 is an illuminated push button switch featuring a double pole double throw (DPDT) On-On operation, designed for panel mounting with a 16 mm cutout. This switch is part of the YB series, featuring a black actuator color and rated for demanding industrial environments.

This switch supports contact voltages of 30 V DC and 250 V AC and is rated IP65, offering robust protection against dust and water ingress. Operating at temperatures from -25°C to 50°C, it is suitable for a wide range of industrial, electrical, and automation applications.

The switch is constructed with phosphor bronze terminals that are tin plated to ensure excellent conductivity and corrosion resistance. Illumination is provided through spot illumination technology using incandescent lamps or multi-element LEDs with or without resistors, enhancing panel visibility and operator awareness.

Its distinctive snap-action contacts deliver shock resistance, sensitive actuation, and long life. The design minimizes behind-panel depth to less than one inch, allowing efficient panel integration without excessive space requirements.

NKK Switches YB26WCKW01 complies with UL, CSA, and RoHS standards, affirming its quality, safety, and environmental compliance. This switch is well suited for diverse industrial sectors including electrical panels, automation control systems, manufacturing, and HVAC controls.

Features On-On switch operation with black actuator color. Designed for panel cutout size of 16 mm with IP65 rating for dust and water protection. Operates at contact voltages of 30 V DC and 250 V AC. Suitable for operating temperatures ranging from -25°C to 50°C.

Equipped with spot illumination using incandescent lamps or multi-element LEDs. Constructed with phosphor bronze terminals plated with tin for durability. Snap-action contacts provide shock resistance and long operational life.

Compact design ensures less than one inch behind panel depth. Compliance with UL, CSA, and RoHS standards ensures safety and environmental considerations. Ideal for industrial and automation applications requiring high reliability.
