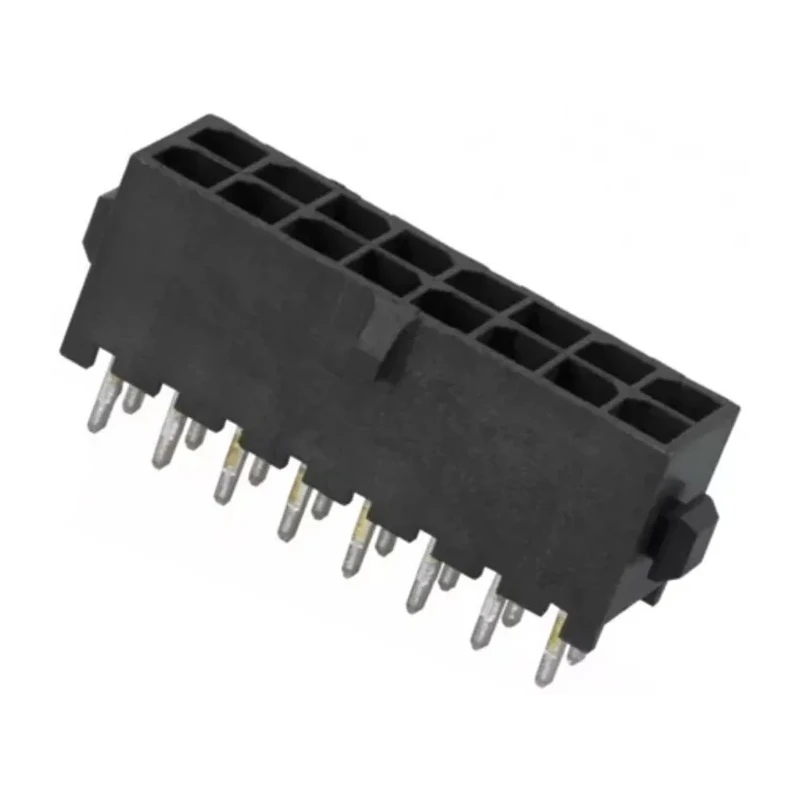

TE Connectivity Micro MATE-N-LOK Series Straight Through Hole PCB Header 16 Contacts 3 mm Pitch 2 Row Shrouded 4-794630-6
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 5A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Micro MATE-N-LOK |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 3mm |
| Contact Plating | Tin |
| Number of Contacts | 16 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.43mm |
Key Features
- Designed for wire-to-board connector applications ensuring reliability.
- Constructed with nylon housing for durability and insulation.
- Supports a current rating of 5A and voltage rating of 250V.
- Features straight orientation and through-hole mount type for PCB mounting.
- Contacts are made of brass with tin plating for corrosion resistance.
- Includes polarization and positive locking tabs to prevent mismating and ensure secure mating.
- Operates reliably between -40°C and 105°C to suit various industrial environments.
- Tail pin length is 3.43 mm facilitating effective soldering connection.
Product Description
TE Connectivity 4-794630-6 Micro MATE-N-LOK Series Straight Through Hole PCB Header is a high reliability connector system designed for wire-to-board applications. This PCB header features 16 contacts arranged in 2 rows with a 3 mm pitch and a shrouded nylon housing that provides insulation and mechanical protection.
It supports a current rating of 5A and voltage up to 250V, making it suitable for various electronic and electrical equipment. The one-piece brass contacts are tin-plated to ensure corrosion resistance and longer operational life. The connector is designed with polarization to prevent mismating and positive lock tabs to secure cable connections reliably.
Operable over a temperature range of -40°C to 105°C, this Micro MATE-N-LOK header is compatible with through-hole PCB mounting techniques and features a tail pin length of 3.43 mm aimed at solder termination methods.
Its housing is rated 94V-0 for flammability standards, available in black or natural colours, and includes board locks or solder tail retention features for a secure PCB connection. The connectors are IR reflow process compatible and available in various configurations including low profile versions designed for LED lighting applications.
This connector type is widely used in industrial, household appliance, lighting, factory automation, and data storage applications where high performance and secure connections are needed.
High reliability and performance for industrial and consumer electronics. Polarization features prevent incorrect mating of connectors. Positive lock tabs ensure a secure mechanical connection. Shrouded nylon housing rated 94V-0 for safety.
Suitable for through-hole PCB mounting. Supports 16 contacts in a 2-row configuration with 3 mm pitch. Operates reliably across a broad temperature range from -40°C to 105°C. Brass contacts with tin plating for durability and corrosion resistance.
Ideal for lighting, appliances, automation, and security systems. Designed to meet industry standards for voltage and current. Explore TE Connectivity and related PCB connectors in the Electronics & Electricals category on EnvMart for detailed specifications and compatible accessories.
Explore more products in our PCB Connectors & Wire Housings category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 5A and a voltage rating of 250V, making it suitable for various electronic applications.
This model features a 3 mm pitch and has 16 contacts arranged in 2 rows.
The housing is made of nylon, while the contacts are made of brass with tin plating for corrosion resistance.
It operates reliably between -40°C and 105°C, suitable for various industrial environments.
It is designed for through-hole mounting, which is a common method for securing connectors to PCBs.
Yes, it includes polarization features and positive lock tabs to prevent mismating and ensure secure connections.
The tail pin length is 3.43 mm, facilitating effective soldering connections.
It uses solder termination, which is a common method for connecting components to a PCB.
It is widely used in industrial, household appliance, lighting, factory automation, and data storage applications.
The housing is rated 94V-0 for flammability standards, indicating its safety in electrical applications.
The contacts are male, which is typical for PCB headers in wire-to-board applications.
