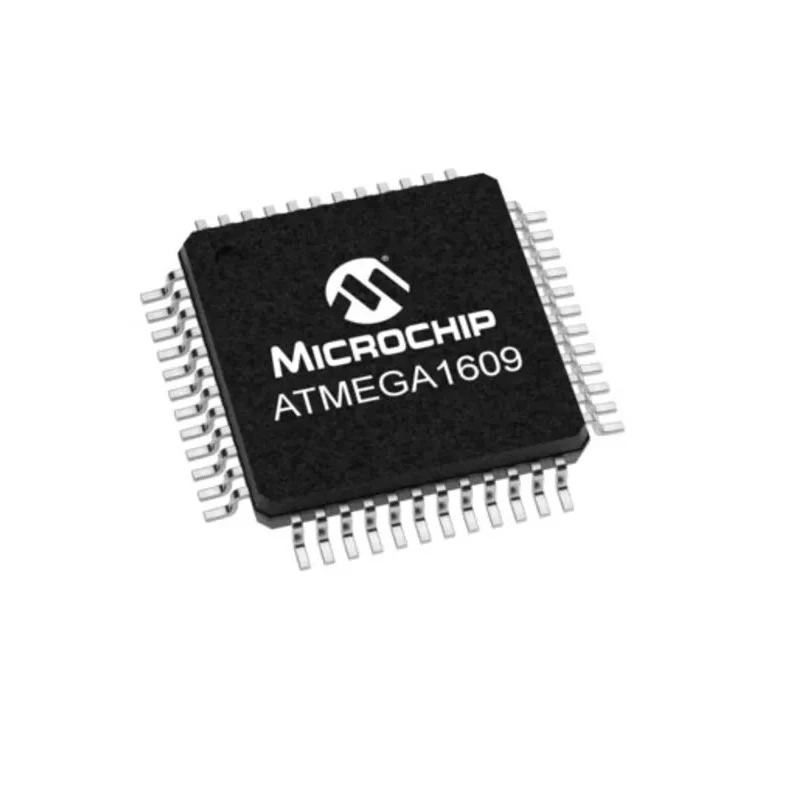

Microchip 8-bit AVR ATmega Microcontroller 20 MHz 16kB Flash 48-Pin TQFP ATMEGA1609-AF
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1mm |
| Length | 7mm |
| Model | ATMEGA1609-AF |
| Width | 7mm |
| Mount Type | Surface |
| Series | Atmega |
| Maximum Operating Temperature | 125°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 2kB |
| Standards/Approvals | RoHS |
| Pin Count | 48 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 6V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 1.8V |
| Device Core | AVR |
| Program Memory Size | 16kB |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 41 |
| Analogue Comparators | 1 |
| Number of Timers | 5 |
| Instruction Set Architecture | RISC |
| ADCs | 16 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Operates at a voltage range from 1.8V to 6V.
- Offers 2kB SRAM and 256 bytes EEPROM for data storage.
- Equipped with 41 programmable I/Os suitable for extensive interfacing.
- Supports 16 channels of 10-bit ADC for analog input conversion.
- Includes five timers for diverse timer/counter applications.
- Built with RoHS compliance and AEC-Q100 automotive standard certification.
- Utilizes a 48-pin TQFP surface mount package measuring 7mm by 7mm by 1mm.
- Designed with Core Independent Peripherals and advanced event system for efficient embedded applications.
Product Description
Microchip ATMEGA1609-AF is an advanced 8-bit AVR microcontroller from the Atmega series operating up to 20 MHz. It integrates 16kB of flash program memory, 2kB SRAM, and 256 bytes EEPROM, suitable for embedded system development requiring moderate memory footprint.
This microcontroller supports a supply voltage from 1.8V to 6V and dissipates a maximum power of 1W, making it suitable for low to medium power applications. It comes in a 48-pin TQFP surface mount package measuring 7mm by 7mm by 1mm facilitating compact PCB designs.
The device core is AVR architecture with 8-bit data bus width and includes a hardware multiplier enhancing arithmetic operation speed. It has 41 programmable input/output pins, 16 channels of 10-bit ADCs for analog interfacing, and five timers offering flexible timing and counting options.
Designed to comply with the RoHS directive and automotive AEC-Q100 standard, it is highly reliable for industrial, automotive, and consumer electronics applications. The microcontroller includes an event system and three low power sleep modes (Idle, Standby, Power Down) to optimize power consumption in various operating states.
Operates at a max clock frequency of 20 MHz for responsive performance. Flash memory of 16kB with accompanying 2kB SRAM and 256 bytes EEPROM. Supports a voltage range of 1.8V minimum to 6V maximum supply voltage. Provides 41 programmable I/O ports for versatile connectivity.
Equipped with five timers and 16 ADC channels with 10-bit resolution. Compliant with RoHS and automotive-grade AEC-Q100 standards. Package type is 48-pin TQFP, compact with 7mm x 7mm x 1mm dimensions. Includes hardware multiplier and advanced event system to improve processing and power efficiency.
Recommended for embedded system designers, industrial control, automotive electronics, and other applications demanding reliable microcontroller solutions. Explore more Microcontrollers and electronic components on EnvMart to support your design needs.
