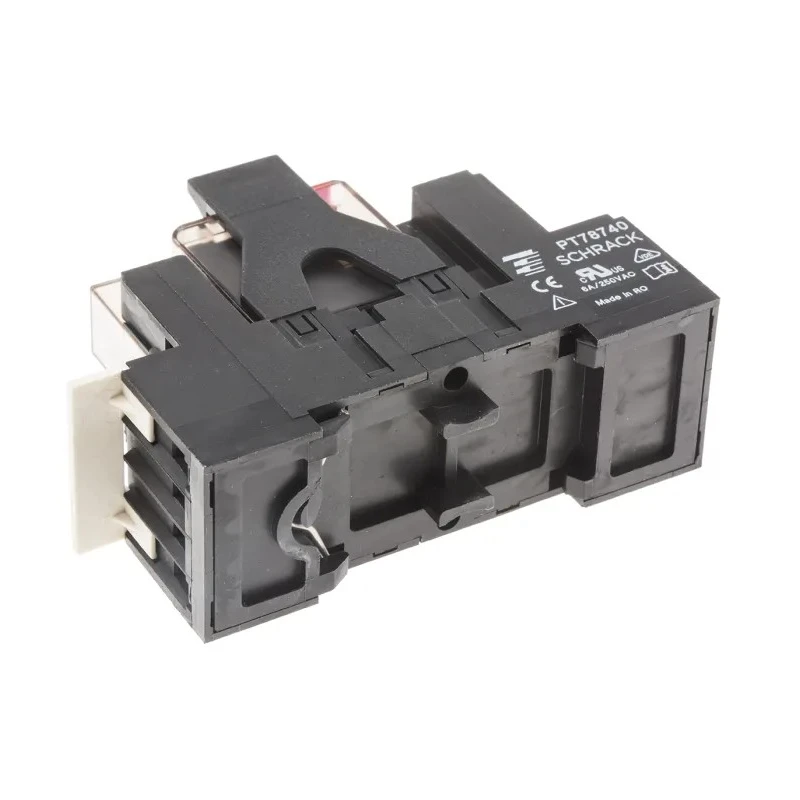

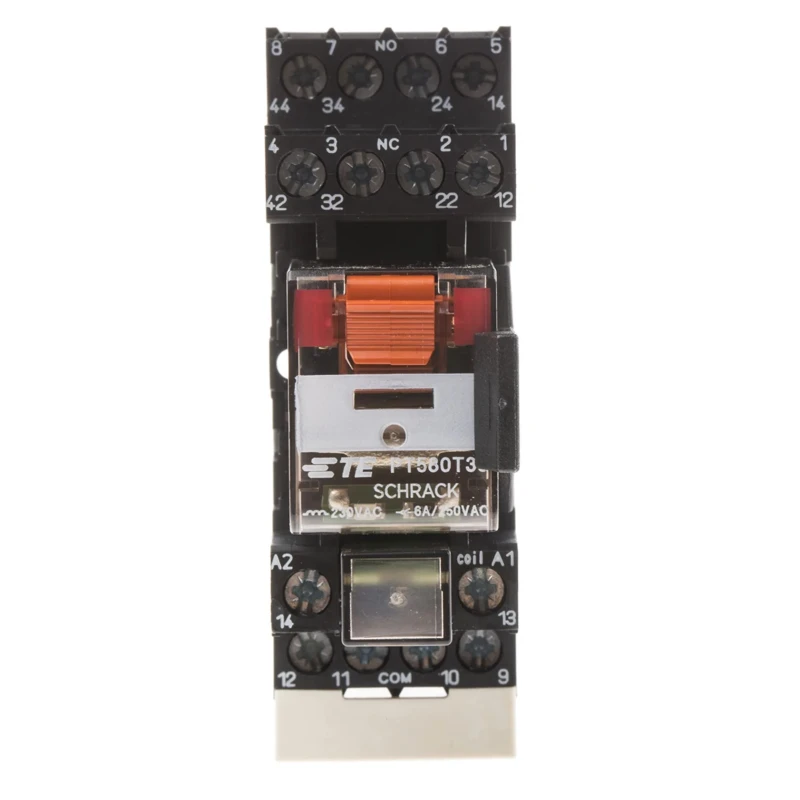

TE Connectivity DIN Rail Power Relay 230V AC Coil 6A Switching Current 4PDT PT5S8TD0 4-1415075-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 58mm |
| Length | 73.5mm |
| Model | PT5S8TD0 4-1415075-1 |
| Width | 27mm |
| Mount Type | DIN Rail |
| Contact Material | Gold Plated |
| Series | PT |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | 4PDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | Screw |
| Standards/Approvals | VDE, UL, RoHS, IEC |
| Coil Resistance | 19.5kΩ |
| Coil Voltage | 230V ac |
| Switching AC Voltage | 240V ac |
| Coil Power | 1W |
Key Features
- The relay mounts on a DIN rail for easy installation.
- It has a coil resistance of 19.5 kilo-ohms and consumes 1 watt coil power.
- Gold plated contacts ensure reliable electrical connection.
- Operates reliably between -40°C to 70°C ambient temperature.
- The relay supports switching AC voltages up to 240 volts.
- Includes screw-type terminals for secure connections.
- The relay body dimensions are 73.5 mm in length, 58 mm in height, and 27 mm in width.
- Complies with VDE, UL, RoHS, and IEC standards for quality and safety.
Product Description
TE Connectivity PT5S8TD0 4-1415075-1 DIN Rail Power Relay is designed for industrial and electrical automation applications requiring reliable switching performance. It features a 230V AC coil voltage and a switching current capacity of 6 amperes with a 4PDT (Four Pole Double Throw) contact configuration. This relay is ideal for control circuits needing precise and stable operation.
The relay is mounted on a standard DIN rail, facilitating easy installation and replacement in electrical panels. Its coil resistance is specified at 19.5 kilo-ohms, consuming low coil power of 1 watt to maintain efficient operation. The gold plated contacts provide excellent corrosion resistance and ensure consistent electrical conductivity over long service life.
Operating temperature range spans from -40°C up to a maximum of 70°C, allowing use in diverse industrial environments. It supports switching of AC voltages up to 240 volts, suitable for various electrical load configurations. Screw terminals simplify wiring and guarantee durable contact under vibration or movement.
Built to comply with international standards including VDE, UL, RoHS, and IEC 61810-1, this power relay assures compliance with quality, safety, and environmental regulations. The relay package typically includes the relay itself, a compatible DIN rail socket, retainer, and a marking tab for easy identification.
The relay mounts on a DIN rail for easy installation. Coil voltage is 230V AC with low coil power consumption of 1W. Gold plated contacts ensure high reliability and conductivity. Switching current capacity is 6A with contact configuration of 4PDT.
Operates reliably between -40°C to 70°C temperature range. Dimensions optimized for panel mounting: 73.5mm x 27mm x 58mm. Equipped with screw terminals for secure wiring. Certified to international standards VDE, UL, RoHS, and IEC 61810-1.
This relay is suited for use in industrial automation, manufacturing control systems, HVAC installations, and electrical distribution panels requiring robust power switching. Its reliable switching capacity combined with compact DIN rail mounting facilitates efficient integration into control cabinets and systems.
Explore more Power Relays and related electrical components at EnvMart for comprehensive automation and control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 230V AC.
This model has a maximum switching current capacity of 6 amperes.
It features a 4PDT (Four Pole Double Throw) contact configuration.
The relay operates reliably between -40°C and 70°C.
The dimensions of this relay are 73.5 mm in length, 58 mm in height, and 27 mm in width.
It is equipped with screw-type terminals for secure connections.
The coil resistance is specified at 19.5 kilo-ohms.
The coil power consumption is 1 watt.
This relay complies with VDE, UL, RoHS, and IEC standards.
It mounts on a standard DIN rail, facilitating easy installation and replacement.
It supports switching AC voltages up to 240 volts.
This relay is suited for industrial automation, manufacturing control systems, HVAC installations, and electrical distribution panels.
