TE Connectivity DIN Rail Power Relay 24V AC Coil 6A Switching Current 4PDT PT5S7RC4 7-1415075-1

TE Connectivity PT5S7RC4 7-1415075-1 DIN Rail Power Relay offers reliable switching performance for industrial and automation applications. This power relay features a 24V AC coil voltage and a 4PDT (four-pole double-throw) contact configuration, providing flexibility in control circuit design. It supports a switching current of 6 amperes and a maximum switching AC voltage of 240V AC.

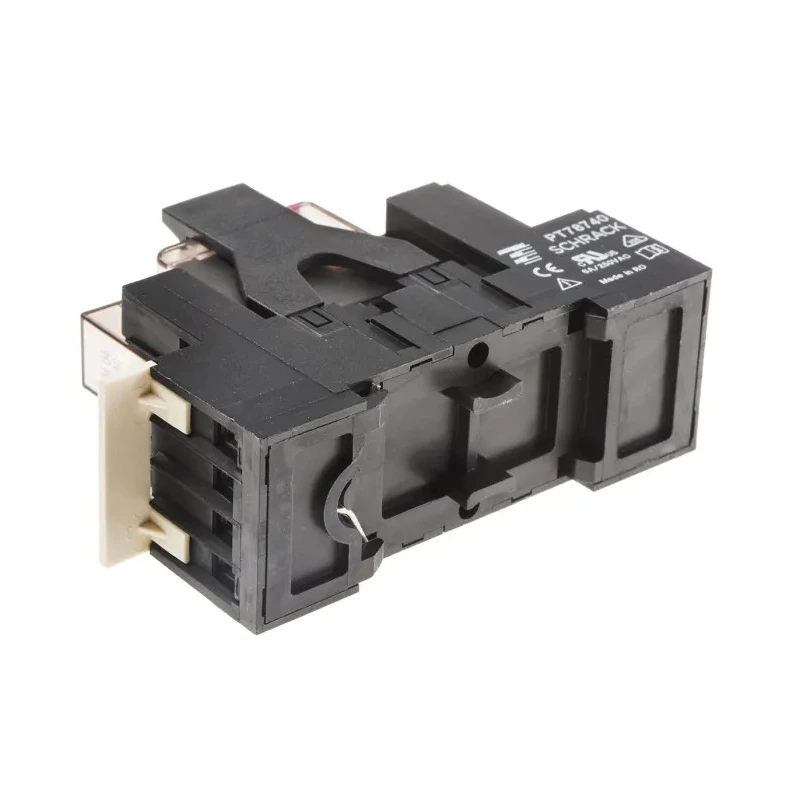

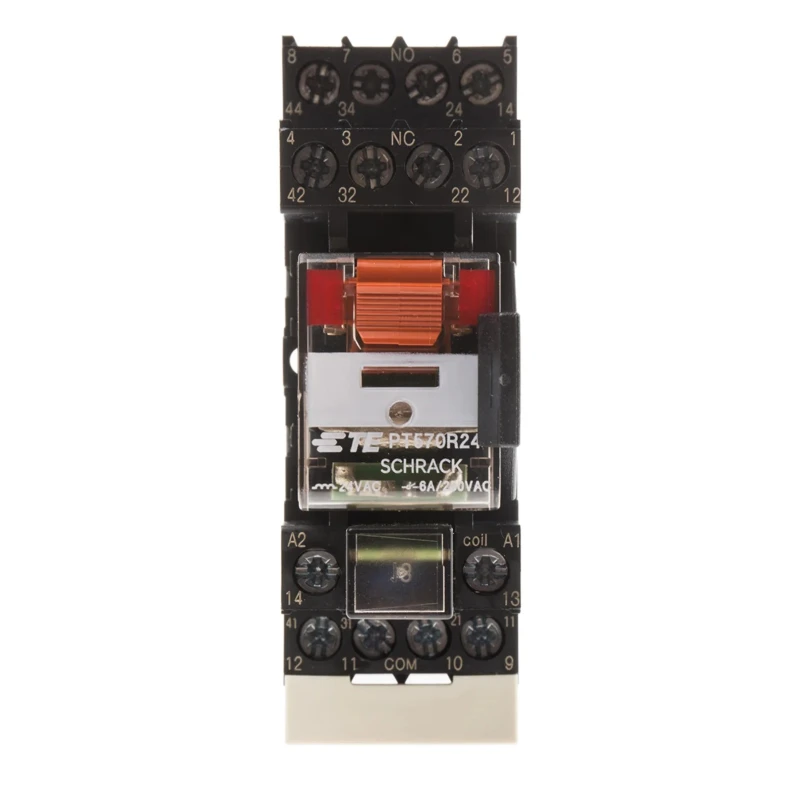

Designed for DIN rail mounting, the relay utilizes screw terminals for secure and easy wiring. It incorporates mechanical and electrical indicators, enabling straightforward relay status monitoring. The contact material is silver nickel alloy, ensuring high conductivity and durability in demanding electrical environments.

Operating within a temperature range from -40°C to 70°C, this relay is suitable for a variety of industrial, manufacturing, and automation scenarios. The package includes the relay itself, a DIN rail socket, module, retainer, and marking tab for seamless installation and identification.

The AC versions come equipped with LED and varistor modules to provide coil protection and visual indication of relay operation. The device complies with the international IEC 61810-1 standard and carries IEC, RoHS, UL, and VDE approvals, reflecting its high quality and safety standards.

The compact dimensions - 73.5mm length, 58mm height, and 58mm width - make it suitable for integration in control panels with space constraints. This relay is ideal for use in electrical automation, HVAC control systems, manufacturing equipment, and other industrial applications requiring reliable Power Relay switching.

Designed for DIN rail mounting with screw terminals for secure connections. Switching AC voltage up to 240V AC with silver nickel alloy contact material. Mechanical and electrical indicators included for easy status monitoring.

Complies with IEC 61810-1 and holds IEC, RoHS, UL, and VDE approvals. Operating temperature range from -40°C to 70°C supports industrial environments. Includes relay, DIN rail socket, module, retainer, and marking tab in the package.

AC versions come with LED and varistor modules for coil protection. Compact dimensions of 73.5mm length, 58mm height, and 58mm width optimize panel space. Explore our range of industrial relays and power components to find compatible parts for your automation and control systems at EnvMart.
