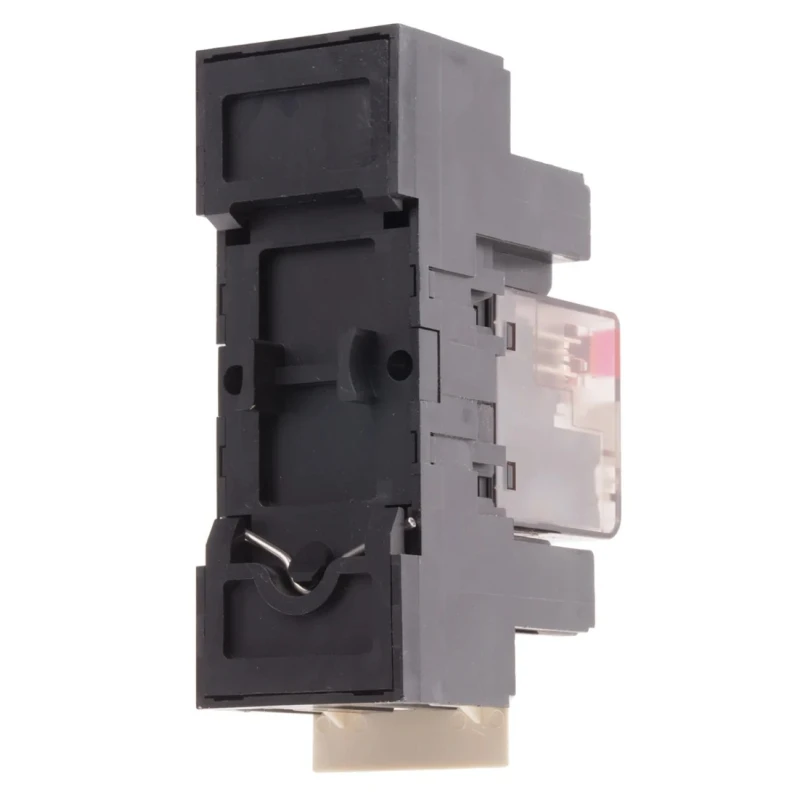

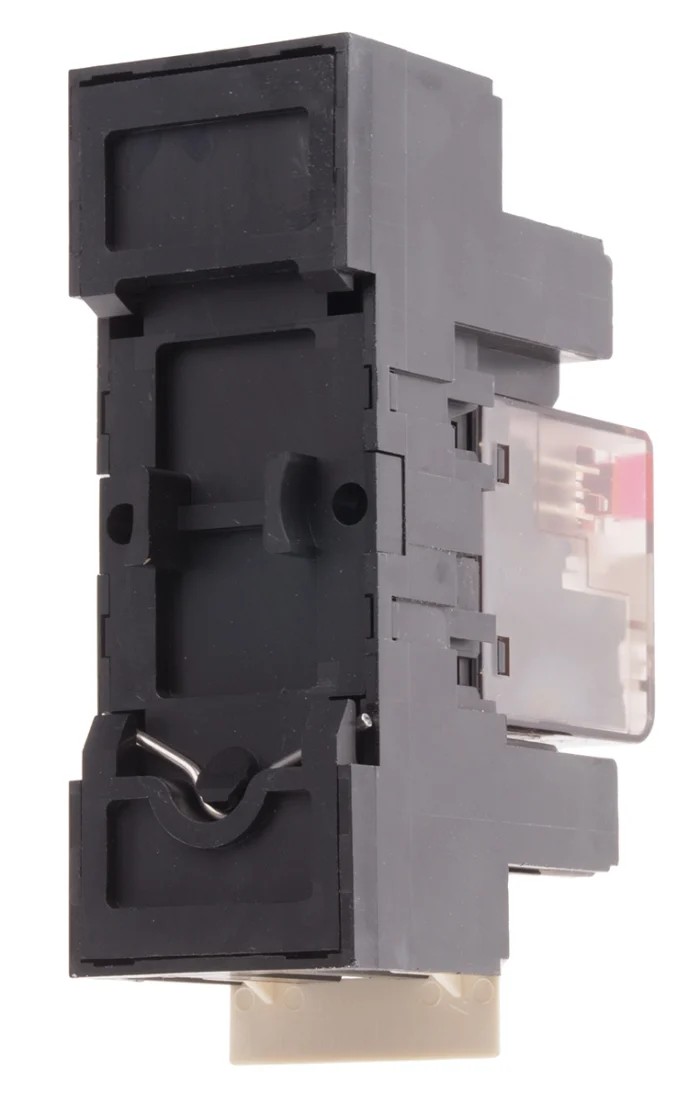

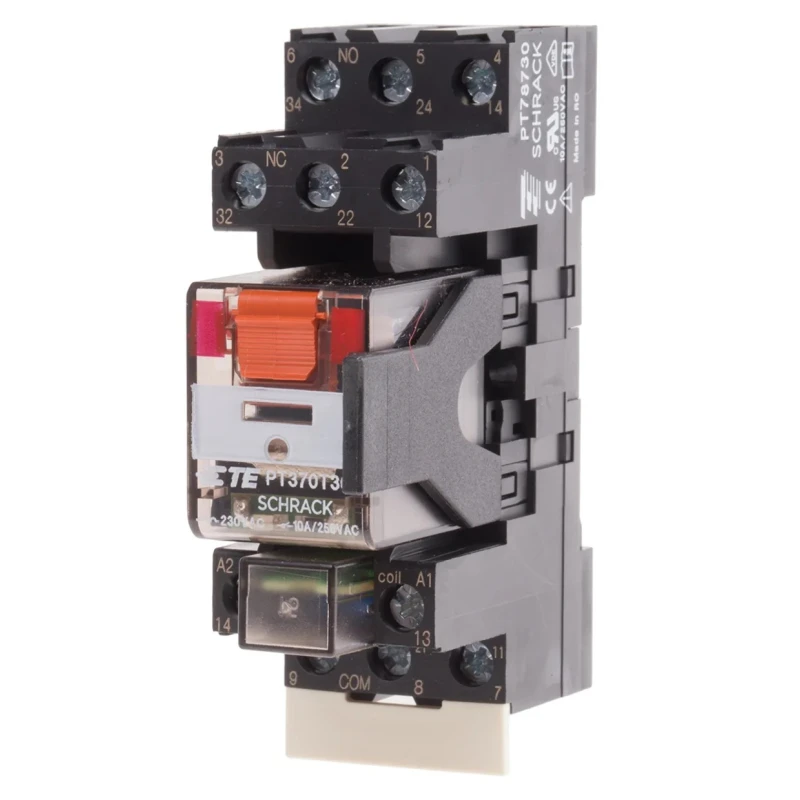

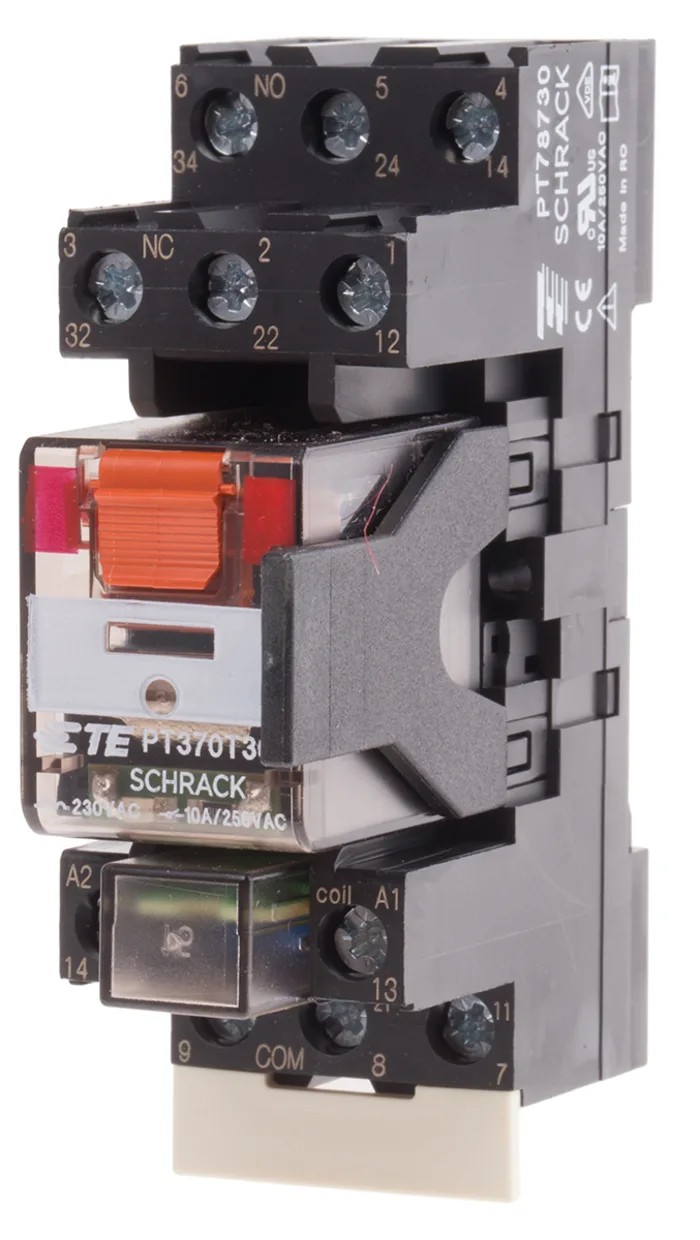

TE Connectivity DIN Rail Power Relay 230V AC Coil 10A Switching Current 3PDT PT3S7TD0 1415075-1

TE Connectivity PT3S7TD0 1415075-1 DIN Rail Power Relay features a 230V AC coil and is designed for industrial and commercial electrical applications requiring reliable switching with a current rating of 10A and a 3PDT contact configuration. This relay is intended for DIN rail mounting, offering ease of installation and maintenance in control panels and automation systems.

The relay operates with a coil resistance of 19.5kΩ and a coil power consumption of just 1W, ensuring energy-efficient operation. It supports switching of AC voltage up to 400V and a switching power capacity of 2.5kVA, making it suitable for a broad range of power relay tasks in electrical, HVAC, manufacturing, and industrial automation contexts.

The compact form factor, measuring 73.5mm long, 27mm wide, and 58mm high, allows it to fit into tight panel spaces without compromising performance. Contacts are crafted from silver nickel alloy, providing excellent electrical conductivity and long service life. The product package includes the relay itself, a DIN rail socket, module, retainer, and marking tab, facilitating straightforward assembly and wiring.

This relay complies with stringent international standards such as RoHS, UL, VDE, and IEC 61810-1, ensuring safety, reliability, and environmental compliance. The device includes mechanical and electrical indicators, manual test tabs, and an LED with a varistor module for AC versions to enhance operational feedback and protection.

Ideal for use in industrial automation, electrical distribution, machinery control, and HVAC systems, this DIN rail power relay delivers dependable switching performance in demanding environments.

Designed for DIN rail mounting with screw terminal type for secure connections. Coil voltage rating is 230V AC with a coil resistance of 19.5kΩ ensuring reliable actuation. Suitable for switching AC voltages up to 400V and switching power of 2.5kVA for versatile applications.

Operates efficiently within a temperature range from -40°C to 70°C. Compact dimensions with length 73.5mm, width 27mm, and height 58mm for easy installation. Contact material constructed from silver nickel alloy for durability and excellent conductivity.

Includes relay, DIN rail socket, module, retainer and marking tab for complete interface module package. Meets industry standards including RoHS, UL, VDE, and IEC certifications.
