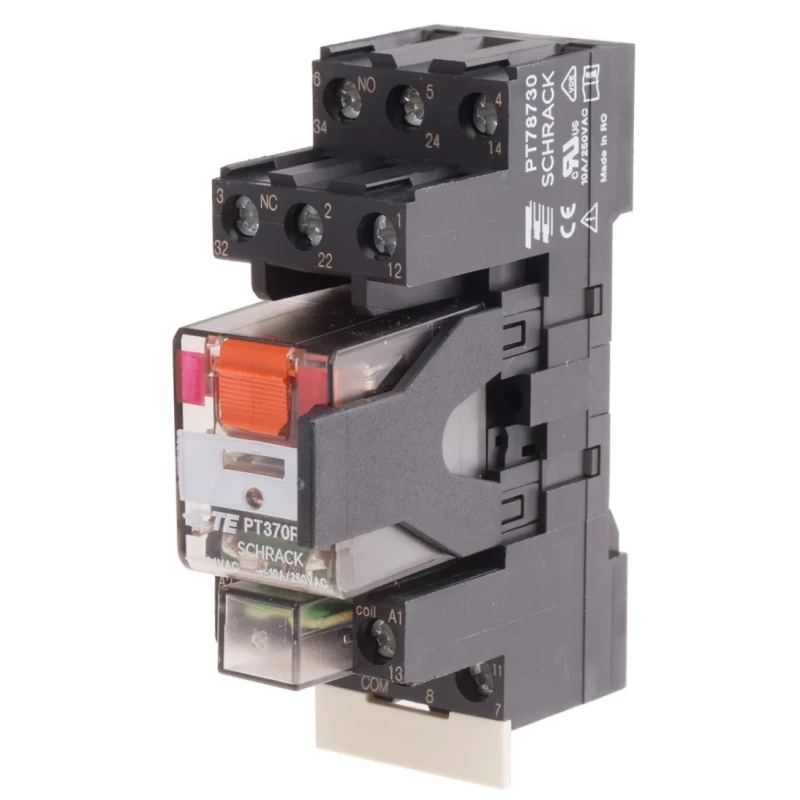

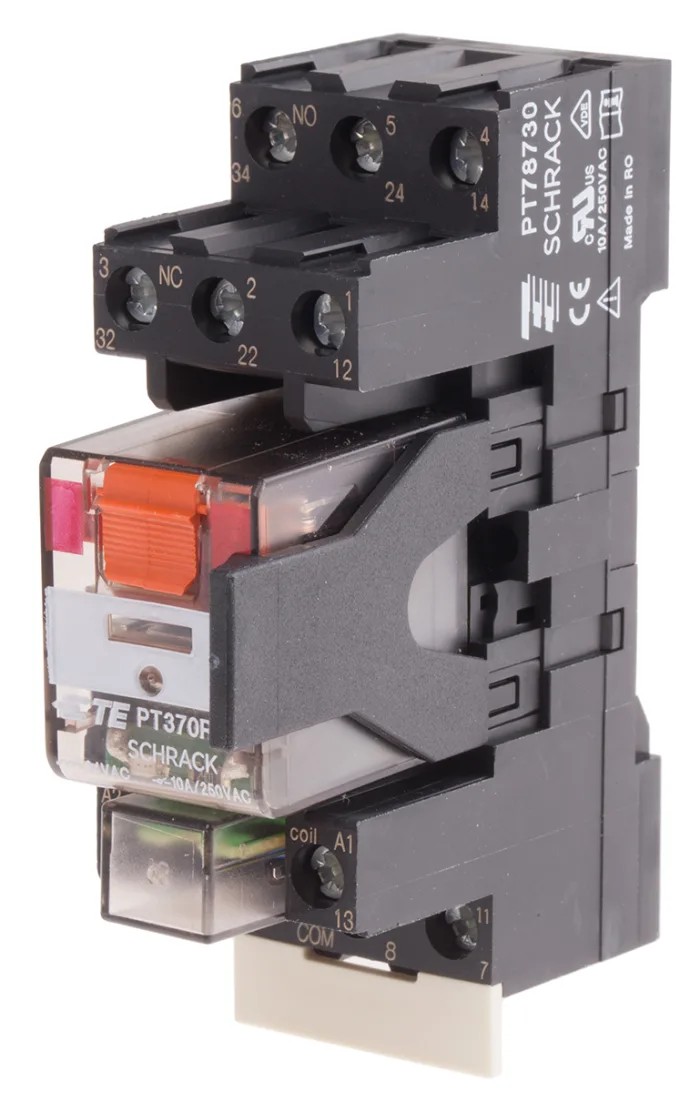

TE Connectivity DIN Rail Power Relay 24V AC Coil 10A Switching Current 3PDT PT3S7RC4 9-1415074-1

TE Connectivity PT3S7RC4 9-1415074-1 is a high-performance DIN Rail Power Relay designed for industrial and commercial electrical applications. Its 24V AC coil provides reliable actuation, making it suitable for controlling electrical loads up to 10A with a 3PDT contact configuration. This allows for multiple simultaneous switching operations within control systems.

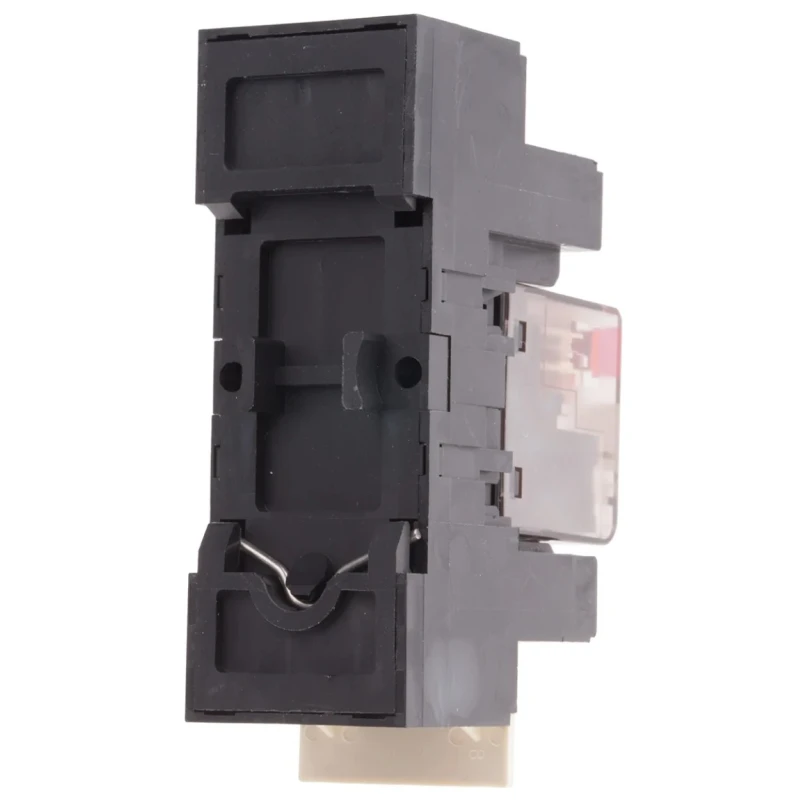

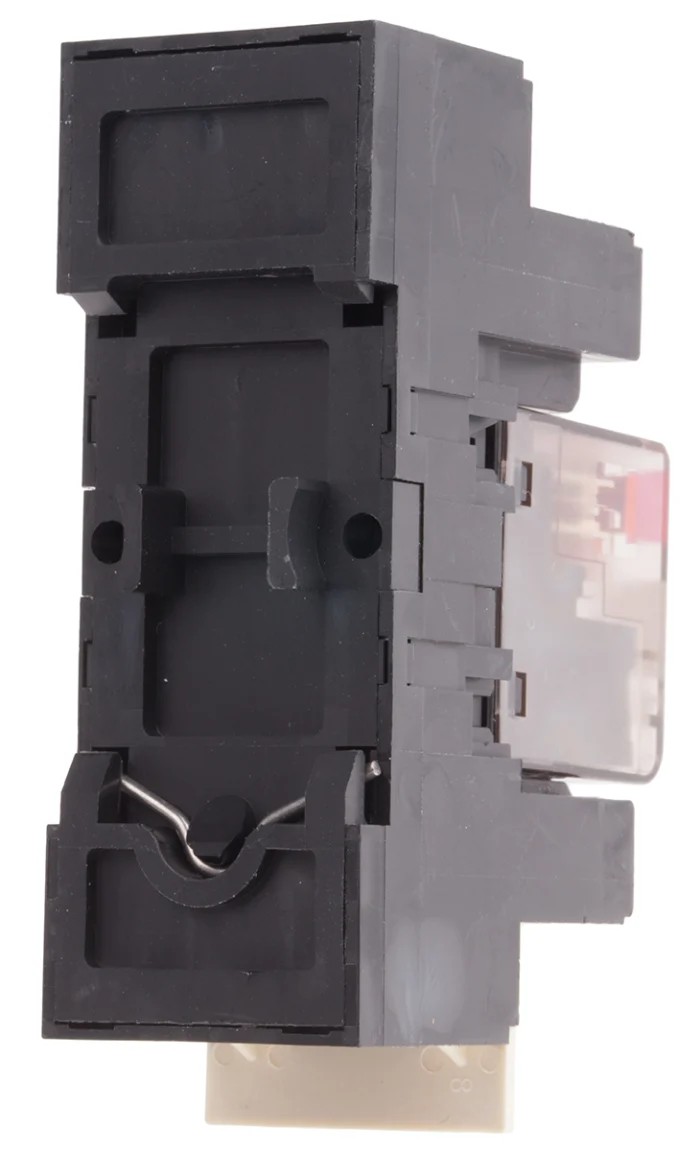

The relay is intended for mounting on DIN rails, facilitating easy integration into electrical panels and automation setups. It features durable silver nickel alloy contacts that ensure long service life and excellent conduction. The device supports a wide ambient temperature range from -40°C to 70°C, making it adaptable for various environmental conditions.

With compact dimensions of 73.5mm (length), 58mm (height), and 27mm (width), this relay conserves space while maintaining robust switching capabilities. The coil power is rated at a low 1 watt, corresponding to a coil resistance of 192 ohms, which contributes to energy-efficient operation.

The product complies fully with IEC 61810-1 standards and holds certifications including IEC, RoHS, UL, and VDE, ensuring quality and safety in use. Typical industrial applications include automation control systems, electrical panels, and signal conditioning equipment requiring reliable power relay switching.

Equipped with a 24V AC coil for efficient power control. 3PDT (Triple Pole Double Throw) contact configuration ensures versatile switching. Designed for DIN rail mounting for easy installation in control panels. Capable of switching currents up to 10 amps at 400V AC.

High-quality silver nickel alloy contact material for durability. Suitable for operating temperatures from -40°C to 70°C. Compact dimensions: 73.5mm length, 58mm height, and 27mm width. Low coil power consumption of 1 watt with coil resistance of 192 ohms.

Complies with IEC 61810-1 standards and carries approvals from IEC, RoHS, UL, and VDE.

This relay is ideal for use in industrial automation, electrical control systems, power distribution, HVAC equipment, manufacturing machinery, and other commercial applications requiring robust power relay functionality. The included DIN rail mounting facilitates streamlined installation and maintenance.
