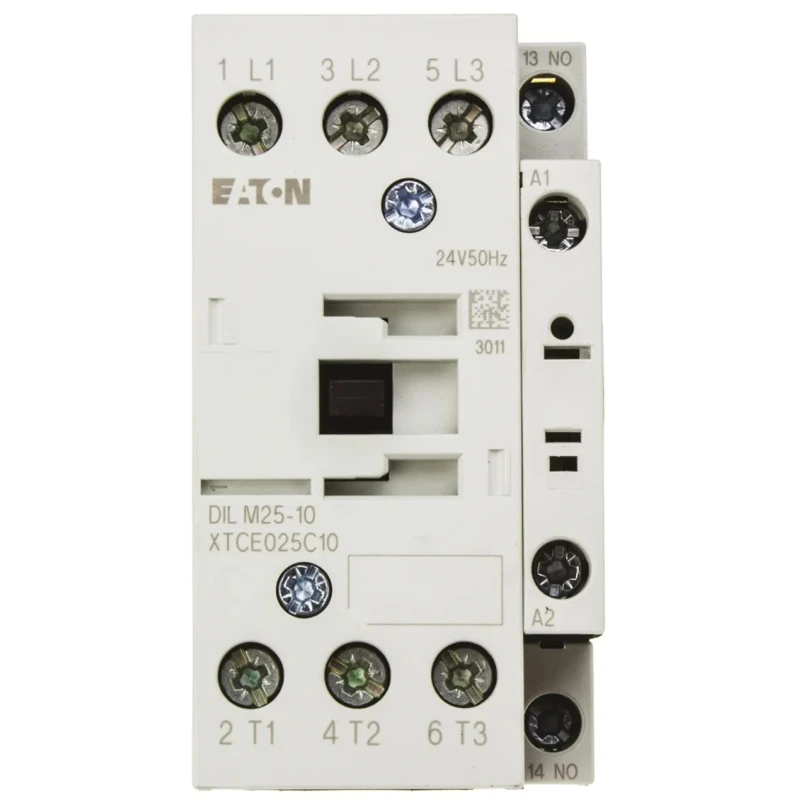

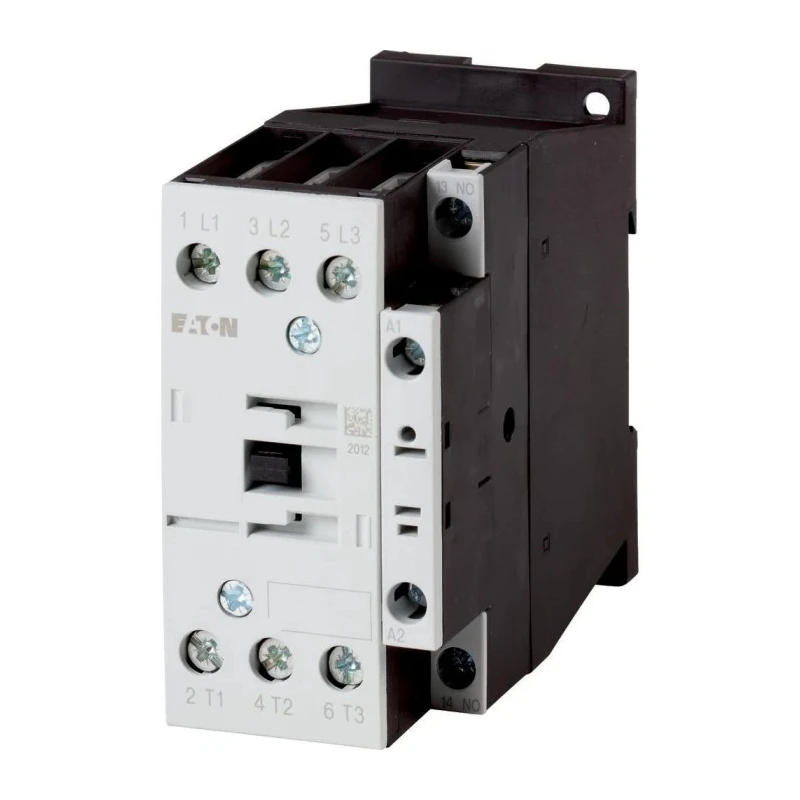

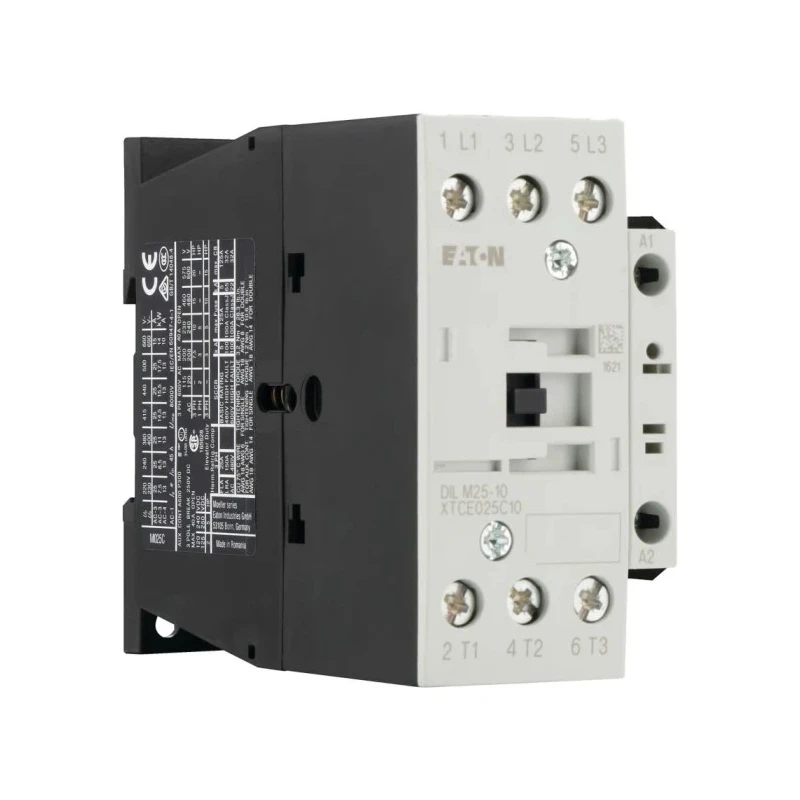

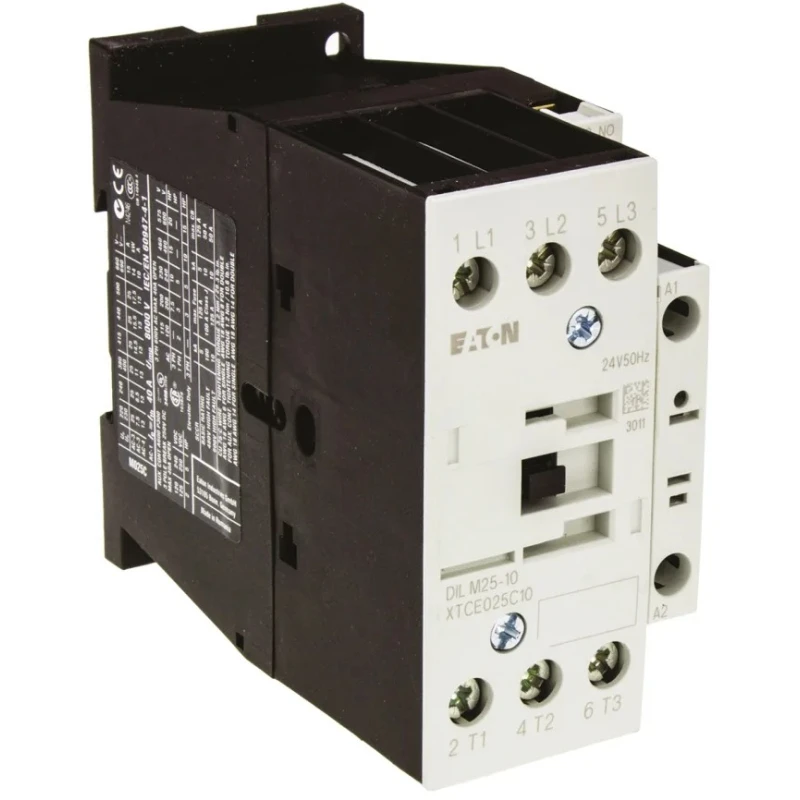

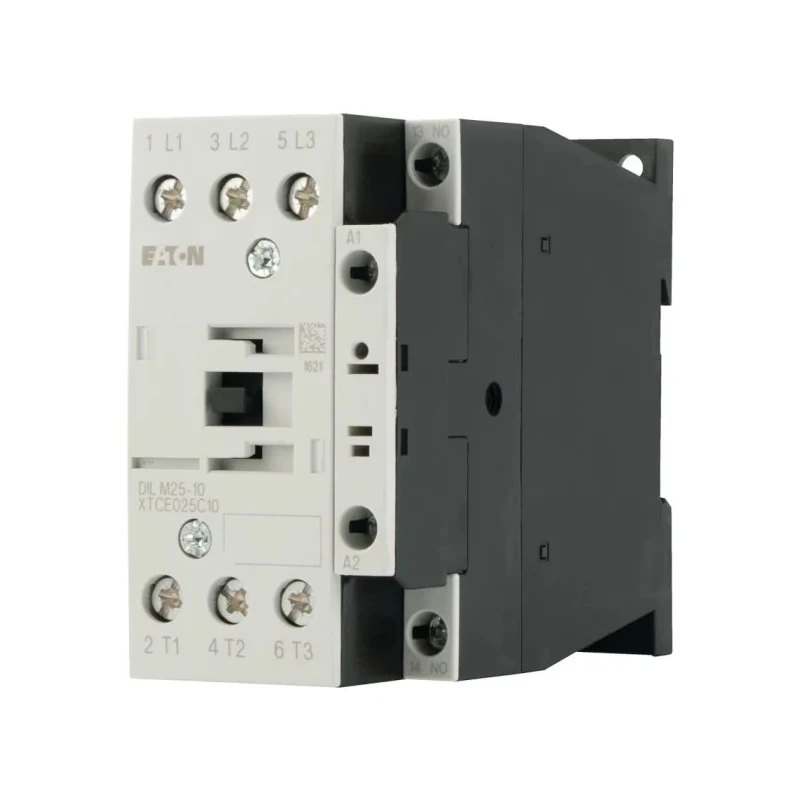

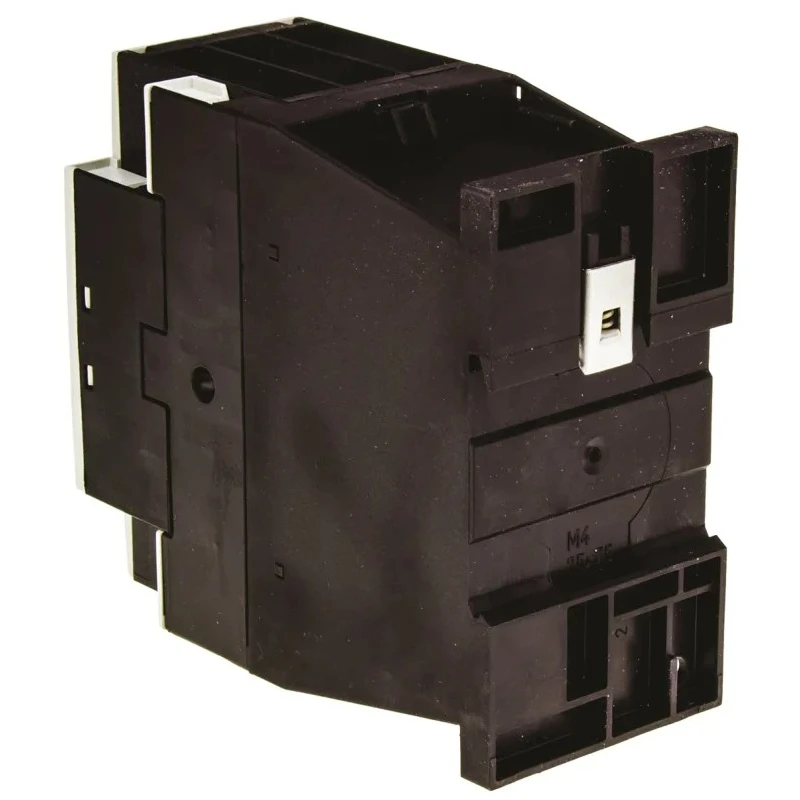

Eaton Contactor 24V AC Coil 3-Pole 25 A 11 kW Motor Control 277119 DILM25-10(24V50HZ)
Specifications
| Country of Origin | Romania |
|---|---|
| Brand | Eaton |
| Function | Motor Control, Resistive Load |
| Length | 85mm |
| Model | 277119 DILM25-10(24V50HZ) |
| Depth | 138mm |
| Width | 56mm |
| Mount Type | Screw |
| Series | DILM |
| Power Rating | 11kW |
| Maximum Operating Temperature | 40°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw Clamp |
| Number of Poles | 3 |
| Standards/Approvals | CSA, IEC/EN 60947, UL, VDE 0660 |
| Contact Voltage | 400V ac |
| Coil Voltage | 24V ac |
| Normal State Configuration | 3 NO |
| Contact Current | 25A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NO |
| Operational Current Ie | 25A |
| Control Circuit Voltage Uc | 24V ac |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
| Miniature contactor,22.5A 24Vac coilBrand | Moeller |
Key Features
- Equipped with a 24V AC coil voltage for efficient coil operation.
- Features 3 poles with 3 normally open (NO) contacts for controlling circuits.
- Rated for 25 amperes of contact current and 11 kW power capacity.
- Compact dimensions and screw terminal mount type for easy and secure installation.
- Operates reliably within a temperature range of -25°C to 40°C for diverse environments.
- Complies with CSA, IEC/EN 60947, UL, and VDE 0660 standards ensuring safety and quality.
- Includes 1 auxiliary contact configured as 1 normally open (NO) contact for additional circuit control.
- Designed for motor control and resistive load applications.
Product Description
Eaton 277119 DILM25-10(24V50HZ) contactor is a robust 3-pole electrical device with a 24V AC coil, designed for controlling motors and resistive loads in industrial environments. It offers a power rating of 11 kW and can handle a contact current of 25 amperes, making it ideal for medium to heavy-duty applications.
This contactor features screw clamp terminals, which provide secure and vibration-resistant connections. Its compact dimensions (Width 56mm, Length 85mm, Depth 138mm) make installation into control panels straightforward and space-efficient.
The device operates reliably within a wide temperature range from -25°C to 40°C, ensuring stable performance even under demanding conditions encountered in factory automation, railway transportation, and other industrial sectors.
Built to meet stringent international standards, including CSA, IEC/EN 60947, UL, and VDE 0660 certifications, this contactor assures safety and compliance.
It includes one auxiliary contact configured as normally open (NO) to enable auxiliary circuit control. The mechanical lifespan is rated at 10 million cycles with a capability of 5000 operations per hour, emphasizing durability and longevity.
The contactor is manufactured in Romania and belongs to Eaton's DILM series, known for high performance and reliability in controlling electrical motors and resistive loads. Equipped with 24V AC coil voltage for precise control.
Compact screw-mounted design for easy installation. Certified to multiple international standards for industrial use. Long mechanical life suitable for continuous operation. Auxiliary contact provision for additional circuit integration.
Designed for motor control applications up to 11 kW power. Operates consistently in ambient temperatures from -25°C to 40°C. Robust contact current capacity of 25A ensuring reliable switching. Compact size fits into various automation configurations.
Manufactured with quality assurance in Romania.
This Eaton contactor is suitable for industrial, manufacturing, water treatment, and HVAC systems where reliable motor control is essential. Its rugged design and performance make it a dependable choice for operational continuity in diverse electrical automation scenarios.
Explore the full range of Eaton Contactors and automation control gear at EnvMart for your industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton contactor has a power rating of 11 kW.
This model can handle a maximum contact current of 25 amperes.
The contactor measures 85mm in length, 56mm in width, and 138mm in depth.
It operates with a 24V AC coil voltage.
This contactor features 3 poles with 3 normally open (NO) contacts.
The contactor operates reliably within a temperature range of -25°C to 40°C.
It complies with CSA, IEC/EN 60947, UL, and VDE 0660 standards.
It uses screw clamp terminals for secure and vibration-resistant connections.
Yes, it includes one auxiliary contact configured as normally open (NO).
The mechanical lifespan is rated at 10 million cycles with a capability of 5000 operations per hour.
It is designed for motor control and resistive load applications in industrial environments.
This model is manufactured in Romania.
