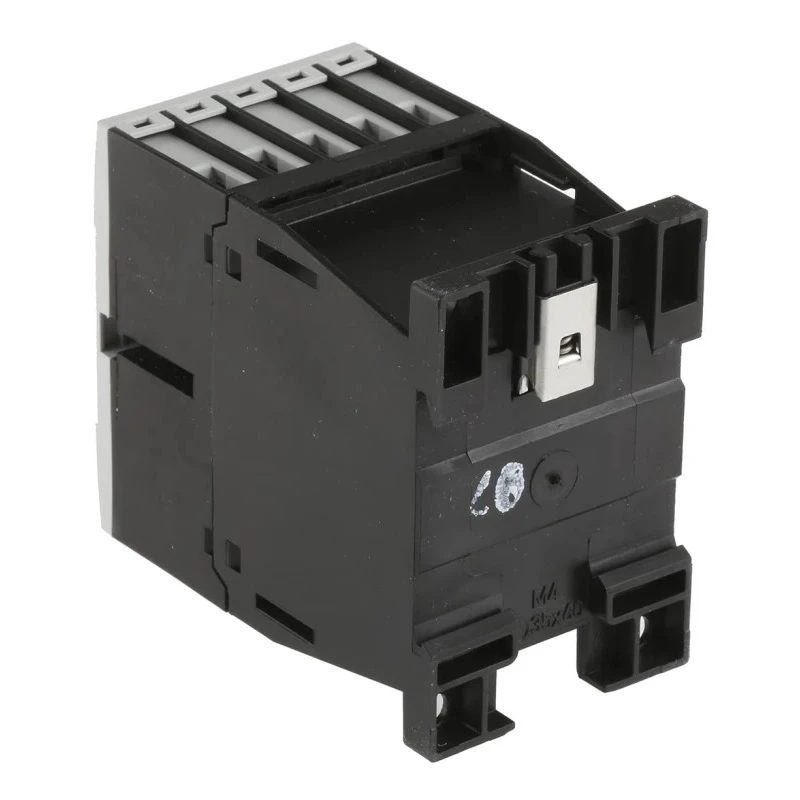

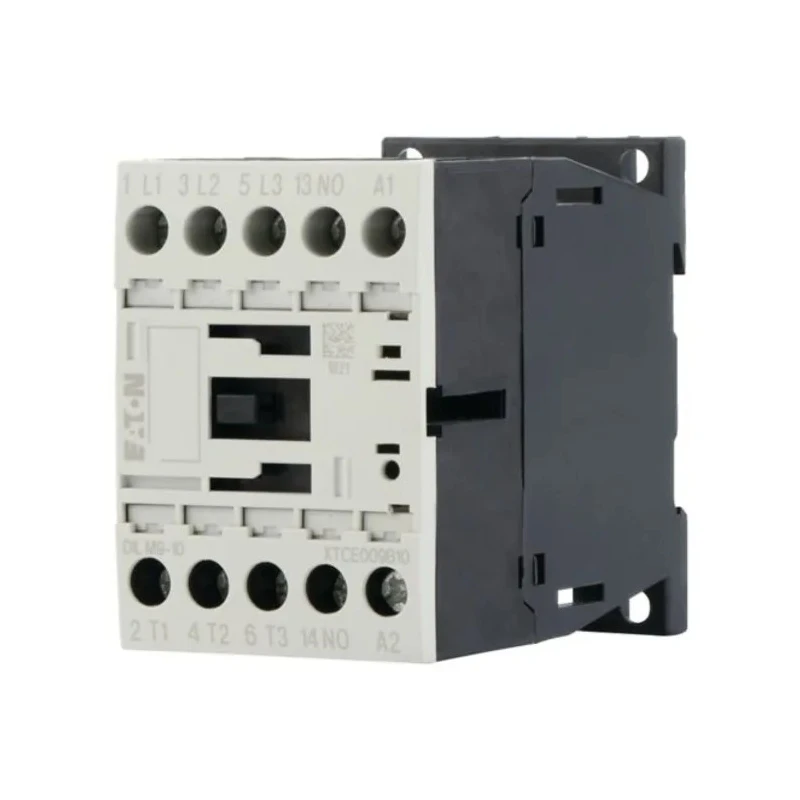

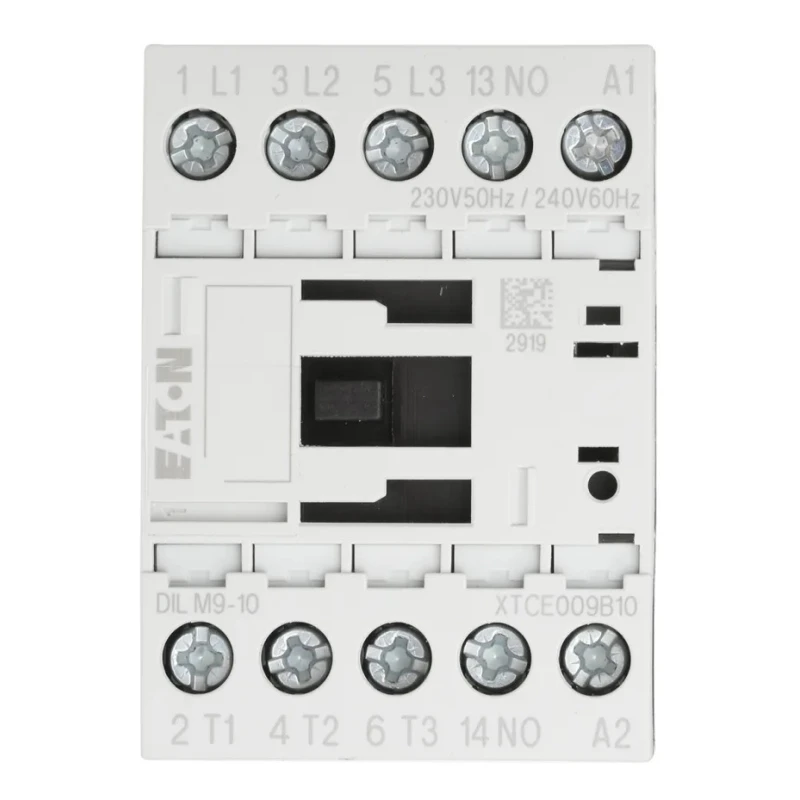

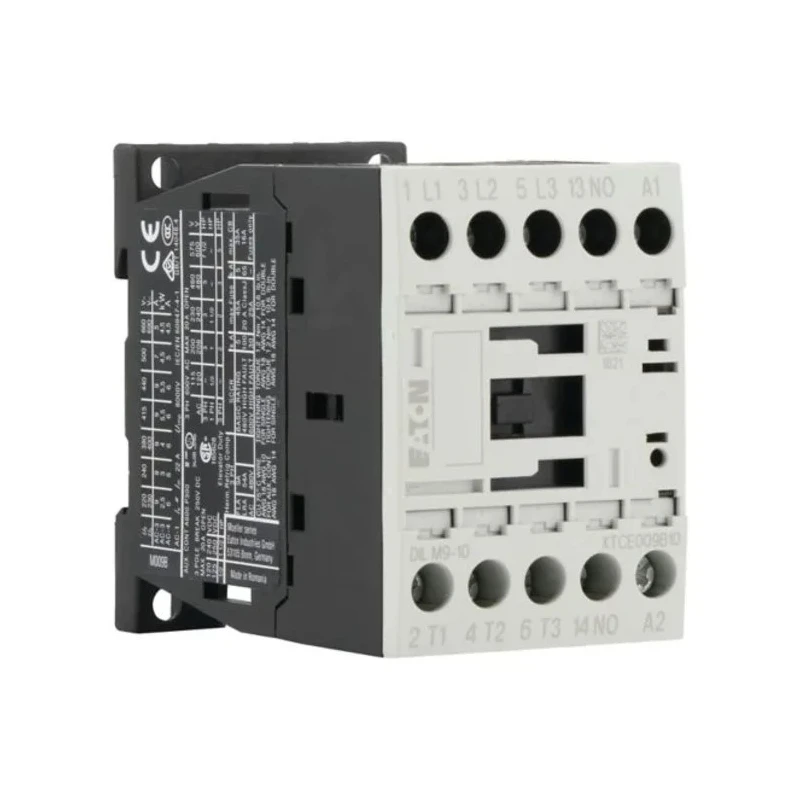

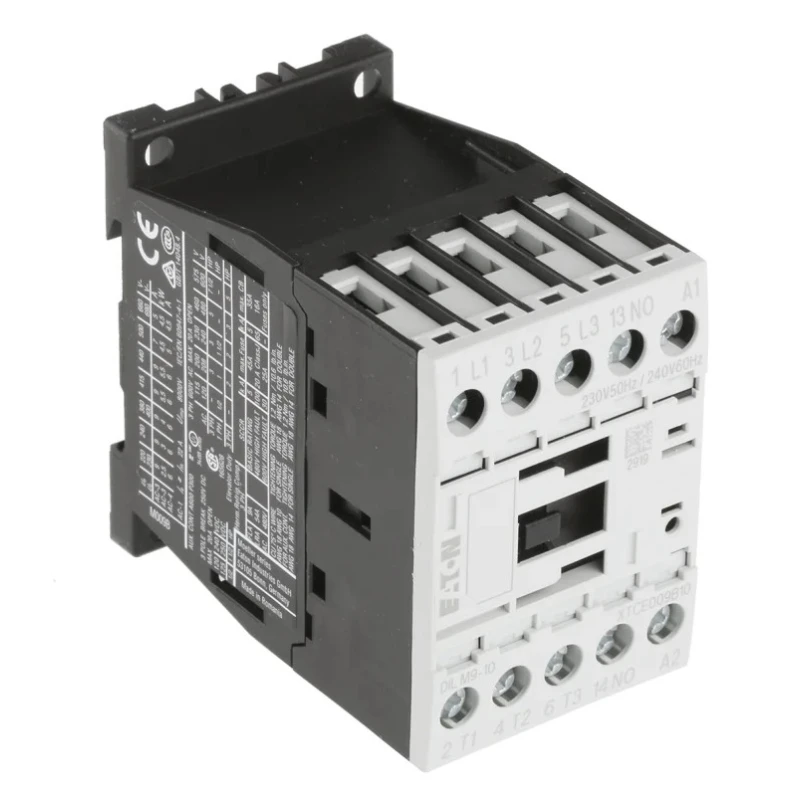

Eaton DILM Contactor 3-Pole 9 A 4 kW Screw Mount Motor Control 230V AC Coil 276690 DILM9-10(230V50HZ,240V60HZ)
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Eaton |
| Function | Motor Control, Reversing |
| Length | 68mm |
| Model | 276690 DILM9-10(230V50HZ,240V60HZ) |
| Depth | 117mm |
| Width | 45mm |
| Mount Type | Screw |
| Series | DILM |
| Power Rating | 4kW |
| Maximum Operating Temperature | 40°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw Clamp |
| Number of Poles | 3 |
| Standards/Approvals | VDE 0660, UL, IEC/EN 60947, CSA |
| Contact Voltage | 400V ac |
| Coil Voltage | 230V ac |
| Normal State Configuration | 3 NO |
| Contact Current | 9A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NO |
| Operational Current Ie | 9A |
| Control Circuit Voltage Uc | 230V ac |
| Contactor Application | Resistive Load, Motor Control |
| Pole and Throw Configuration | 3 |
| WEG CWB Contactor, 24V ac Coil, 3-Pole, 9 A, 4 kW 24V ac, 3 NO, 690V acBrand | WEG |
| 1NO min contactor,4kW 8.5A 240Vac coilBrand | Moeller |
| Epcos K3 Contactor, 230 V ac Coil, 3-Pole, 10 A, 3NO, 690 V acBrand | EPCOS |
Key Features
- Operates with a coil voltage of 230V AC for reliable activation.
- Features 3 poles with a contact current rating of 9 A and power rating of 4 kW.
- Includes 1 auxiliary contact configured as 1 NO for signaling purposes.
- Mounts easily with a screw clamp terminal and screw mount type.
- Designed to operate within a temperature range from -25°C to 40°C.
- Complies with VDE 0660, UL, IEC/EN 60947, CSA standards ensuring safety and reliability.
- Compact dimensions of 68mm length, 45mm width, and 117mm depth optimize space usage.
- Widely used for motor control and reversing functions in industrial automation.
Product Description
Eaton 276690 DILM9-10(230V50HZ,240V60HZ) Contactor is a 3-pole device with a coil voltage of 230V AC and 9 A contact current, engineered for motor control and reversing applications in industrial environments. Its screw mounting and clamp terminals provide secure and straightforward installation.
This contactor supports a power rating of 4 kW, making it suitable for low-power machinery and resistive loads. It is designed to tolerate a broad operational temperature range spanning from -25°C to 40°C, allowing use in demanding industrial settings such as manufacturing plants, HVAC systems, and automated control systems.
Certified to international standards including VDE 0660, UL, IEC/EN 60947, and CSA, this contactor guarantees compliance with rigorous safety and performance criteria. The device features one auxiliary contact (1 NO) to enhance control circuit functionality.
Its compact dimensions (68 mm length, 45 mm width, 117 mm depth) enable space-efficient deployment in control panels. With a 3 NO normal state configuration and a control circuit voltage of 230V AC, this contactor facilitates reliable switching operations for 3-phase electrical motors and machinery.
The Eaton DILM series is known for its durability and consistent performance in motor control, making this product ideal for industrial, automation, manufacturing, and construction applications requiring dependable electromagnetic switching.
Operates at 230V AC coil voltage for precise activation. 3 poles with 9 A current capacity and 4 kW power rating. Includes 1 NO auxiliary contact for expanded control options. Screw mount and screw clamp terminals for secure installation.
Rated for operation between -25°C and 40°C temperature range. Complies with multiple international standards ensuring safety and reliability. Compact dimensions suitable for tight panel spaces. Ideal for motor control, reversing, and resistive load applications.
Explore the comprehensive Eaton catalog at EnvMart for reliable Contactors and control solutions tailored to industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton DILM9-10 contactor has a power rating of 4 kW.
This model features a contact current rating of 9 A.
It operates with a coil voltage of 230V AC.
The operational temperature range for this contactor is from -25°C to 40°C.
It mounts easily using a screw clamp terminal and is designed for screw mounting.
This contactor complies with VDE 0660, UL, IEC/EN 60947, and CSA standards.
The contactor includes one auxiliary contact configured as 1 NO for signaling purposes.
The contactor has compact dimensions of 68 mm in length, 45 mm in width, and 117 mm in depth.
This model is suitable for motor control and resistive loads.
It features a 3-pole configuration.
The normal state configuration for the DILM9-10 is 3 NO.
The country of origin for this contactor is Germany.
