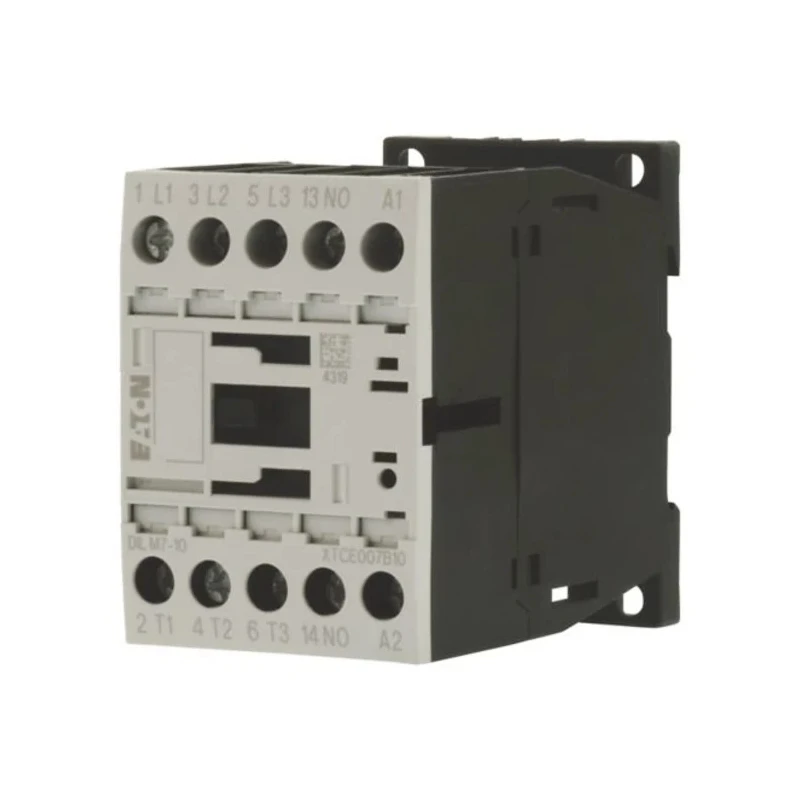

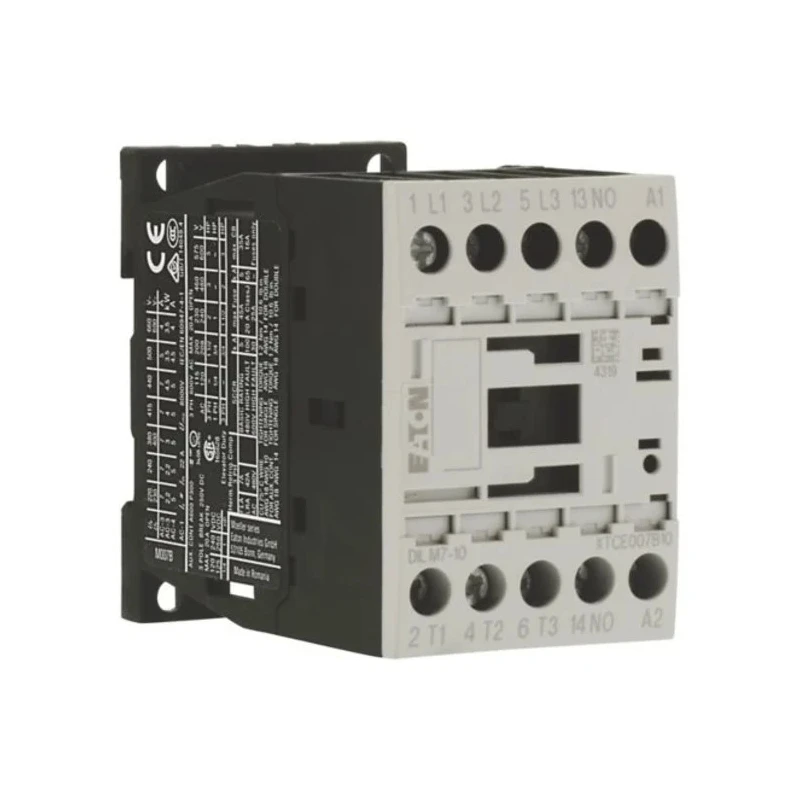

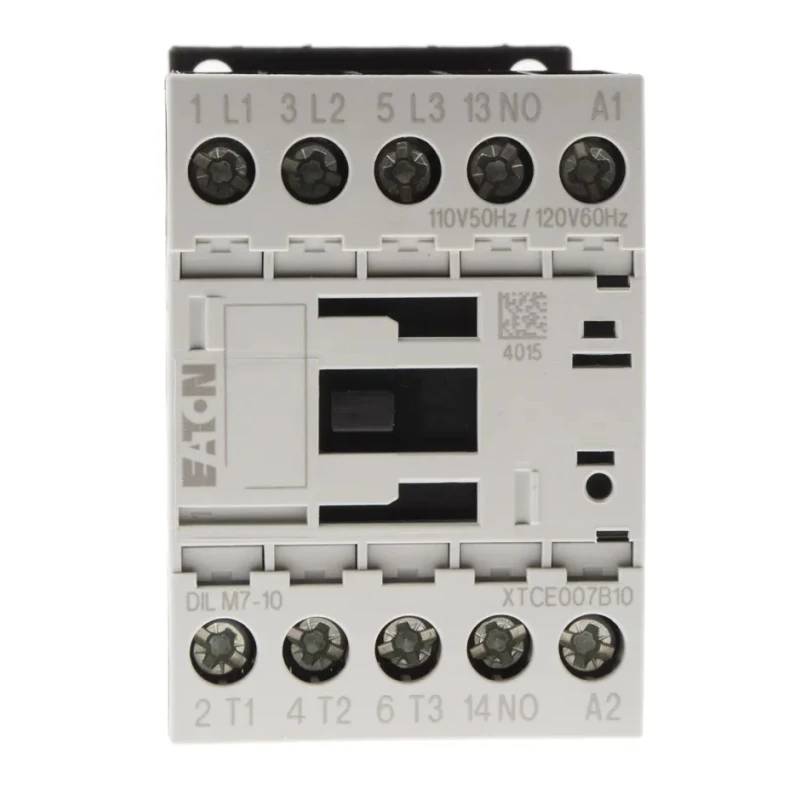

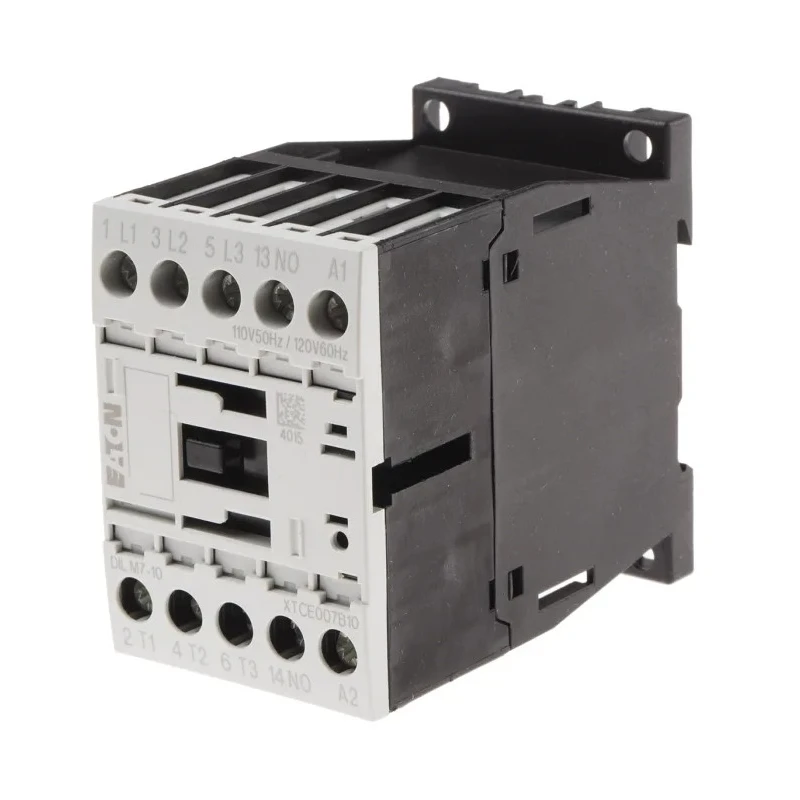

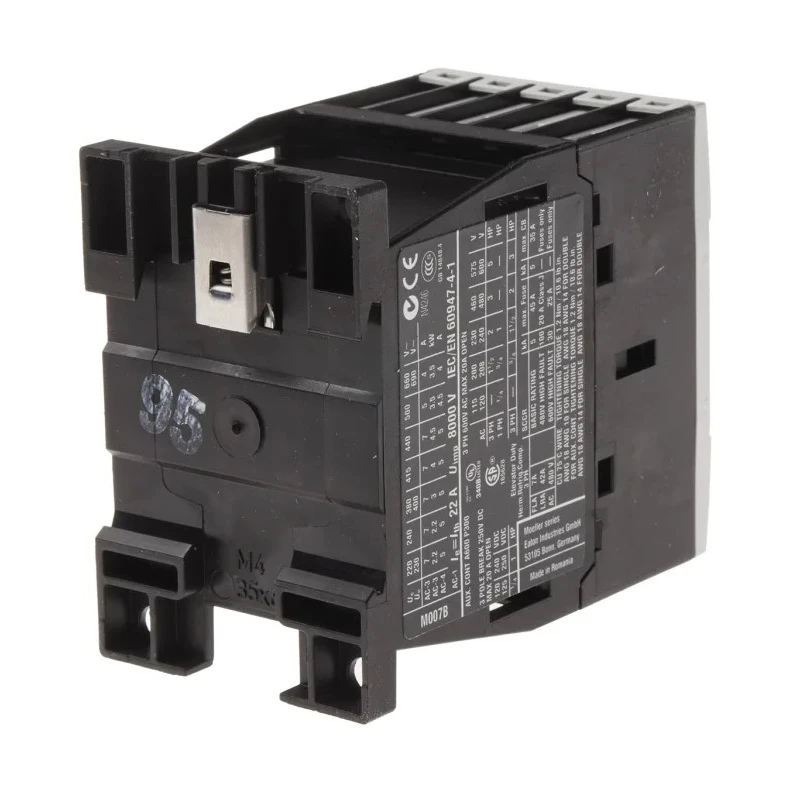

Eaton DILM Contactor 3-Pole 7 A 3 kW Motor Control DIN Rail Mount 110V AC Coil 276547 DILM7-10(110V50HZ,120V60HZ)

Eaton 276547 DILM7-10(110V50HZ,120V60HZ) Contactor is engineered for efficient motor control and resistive load switching, making it ideal for industrial and commercial electrical systems. It features a robust 110V AC coil and supports up to 7A contact current with a power rating of 3 kW. The device is designed to mount easily on DIN rails, facilitating installation and maintenance.

This 3-pole contactor is suitable for controlling three-phase motors and other equipment operating at 400V AC contact voltage. It includes one normally closed (NC) auxiliary contact, enhancing control circuit flexibility. The screw clamp terminal type ensures secure connections that resist vibration and mechanical shock.

Operating reliably between -25°C and 60°C, this contactor can withstand harsh industrial environments while maintaining performance. Its mechanical service life of 10 million operations underscores its durability and suitability for demanding applications.

Additional features include a fast closing delay of 15 to 21 ms, low heat dissipation per pole (0.1 W), and an IP20 rating for user protection against electrical shock. The Eaton DILM series contactors conform to EN 60947 standards, ensuring compliance and safety in automation and control gear systems.

This Eaton contactor supports motor control and resistive load switching. The device operates with a coil voltage of 110V AC and contact voltage of 400V AC. Its DIN rail mount type allows for straightforward electrical panel integration.

Built with screw clamp terminals to provide stable and secure electrical connections. Designed to function reliably from -25°C up to 60°C in various industrial conditions. Features a long mechanical service life of 10 million cycles for extended use.

Includes one normally closed auxiliary contact suitable for auxiliary control circuits. Complies with EN 60947 standards for performance and safety assurance.

This Contactor is commonly applied in HVAC systems, industrial motor controls, lighting networks, and other electrical automation applications. Its robust construction and versatile configuration support efficient and safe operation in demanding environments.
