Cynergy3 Reed Relay PCB Mount SPST Contact, 24V DC Coil, 50W Coil Power, 7000V DC Max Isolation, 2A Max Current, 780 Ω Coil

Cynergy3 DAT72475FU Reed Relay is a high-performance PCB mount relay with a Single Pole Single Throw (SPST) contact configuration and a 24V DC coil voltage. It provides a coil power rating of 50W and coil resistance of 780 Ω, ensuring efficient energy consumption and operation. This relay is designed for applications requiring high isolation voltage capabilities, rated for a maximum of 7000V DC, making it ideal for use in safety-critical workflows such as cardiac defibrillators, test instruments, and high voltage power supply circuits.

The relay’s fast operating time of 3ms enables prompt switching and response in industrial and automation settings. It is constructed with high vacuum reed switches that offer low contact resistance (250mΩ) and high isolation (up to 17kV between coil and contact), delivering reliable electrical performance over extended use.

It supports a maximum switching current of 2A and switching power of 50W, suitable for signal conditioning and relay control circuits. The terminal connection via flying leads, combined with PCB mounting, allows flexible integration into various electronic assemblies. The operating temperature range from -20°C to 70°C assures durability in challenging environmental conditions.

With compact dimensions of 60mm in length and 18.5mm in height, this relay fits well into dense PCB layouts while maintaining superior electrical characteristics. The non-latching design ensures stable switching without mechanical memory, optimizing performance in test and measurement devices, HVAC systems, and industrial manufacturing equipment.

Coil voltage: 24V DC. Contact type: SPST. Maximum isolation voltage: 7000V DC. Maximum current capacity: 2A. Coil resistance: 780 Ω. Operating temperature range: -20°C to 70°C.

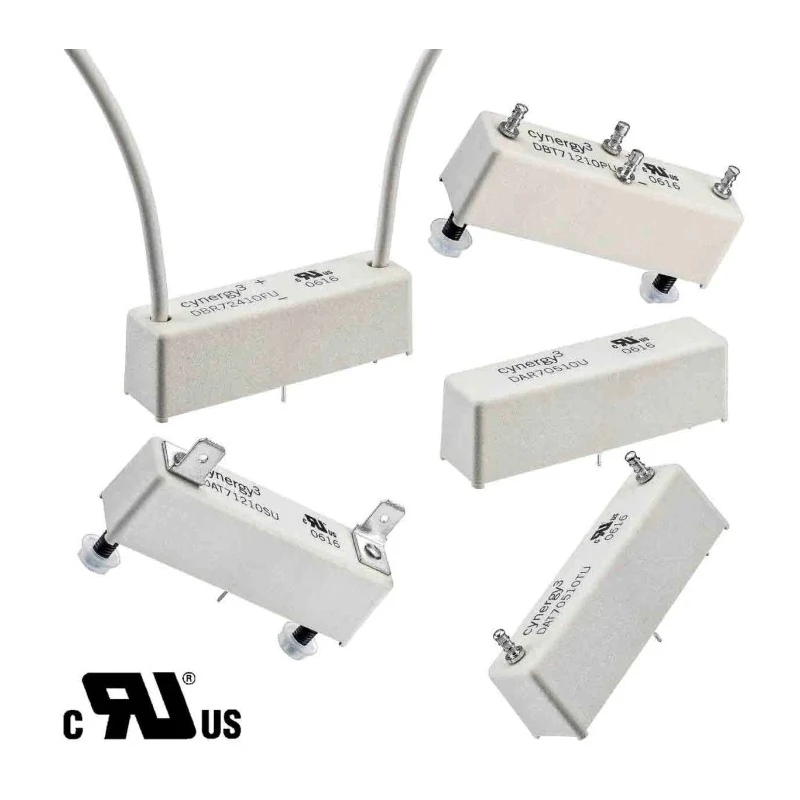

This relay belongs to the Cynergy3 DAT series, renowned for reliability and high isolation. It is UL standard approved and is designed to support demanding electrical and industrial applications, particularly in automation, medical devices, and power electronics. Environmental ruggedness combined with precision switching characteristics makes it indispensable for high-voltage DC circuits requiring compact, dependable reed relays.

Explore more industrial Reed Relays and signal conditioning components for electronic control and automation systems at EnvMart.
