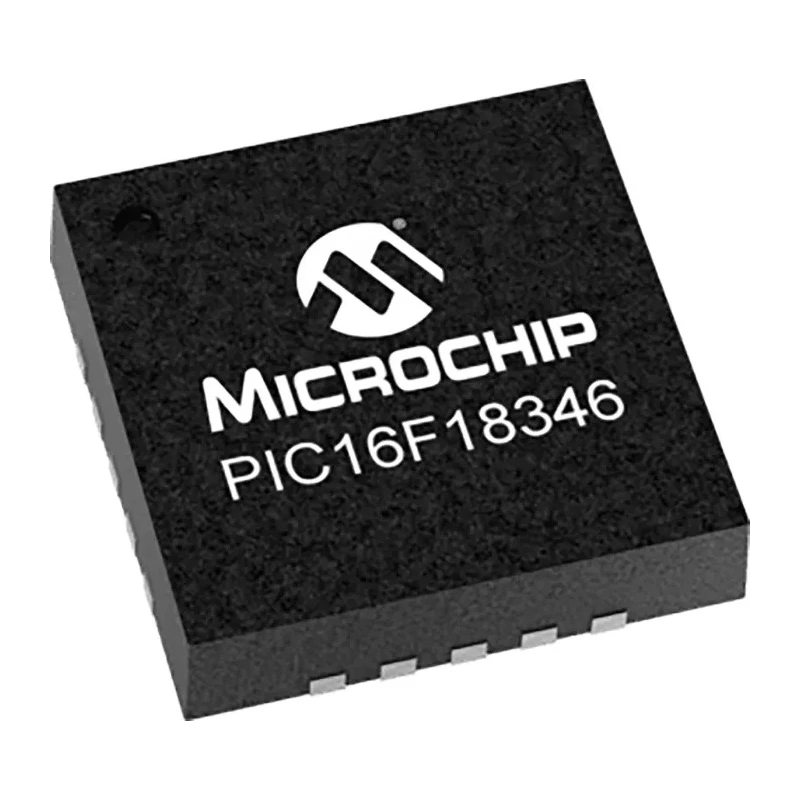

Microchip 8 bit PIC16F Microcontroller 28kB FLASH 32 MHz 20-Pin UQFN PIC16F18346-I/GZ

Microchip PIC16F18346-I/GZ is an 8 bit PIC microcontroller delivering 32 MHz maximum clock frequency and 28kB FLASH memory, housed in a compact 20-pin UQFN surface mount package. This microcontroller integrates advanced peripheral features optimized for general purpose and low-power applications.

It features an enhanced mid-range core with 49 instruction set and 16 stack levels, alongside 2kB RAM and 18 programmable I/O pins. The architecture is based on RISC instruction set delivering optimized performance with low power consumption.

Analog features include 17 channel 10-bit ADC, 5-bit DAC, and two analog comparators, expanding its usefulness in embedded systems that require analog interfacing. It also incorporates core independent peripherals and communication interfaces such as SPI and I2C.

This device supports automotive standard AEC-Q100, with operating temperature ranging from -40°C to 85°C, and voltage from 2.3V up to 5.5V. Power dissipation is limited at 800 mW. The compact 4mm by 4mm package with 500μm height suits compact PCB layouts.

Additional features include programmable brown-out reset, low-power brown-out reset, enhanced watchdog timer, peripheral pin select, PWM modules, timers, and numerically controlled oscillator. These make it a versatile choice for embedded control in industrial, automotive, consumer electronics, and IoT applications.

The microcontroller supports low power modes IDLE and DOZE, facilitating energy efficient designs. It is RoHS compliant, ensuring environmental standards are met. Features 20-pin UQFN surface mount package. Program memory size of 28kB FLASH.

Maximum clock frequency at 32 MHz for fast processing. Includes 2kB RAM and 18 programmable I/Os. Analog peripherals: 17-channel 10-bit ADC, 5-bit DAC, 2 analog comparators. Meets automotive AEC-Q100 standard for reliability.

Operating temperature range from -40°C to 85°C. Voltage supply range between 2.3V and 5.5V. Low power modes for enhanced energy efficiency.

Microchip microcontrollers are trusted in embedded system design for industrial automation, automotive control units, consumer electronics, and IoT devices. Explore the full Microchip range at EnvMart for reliable and efficient Microcontroller solutions.
