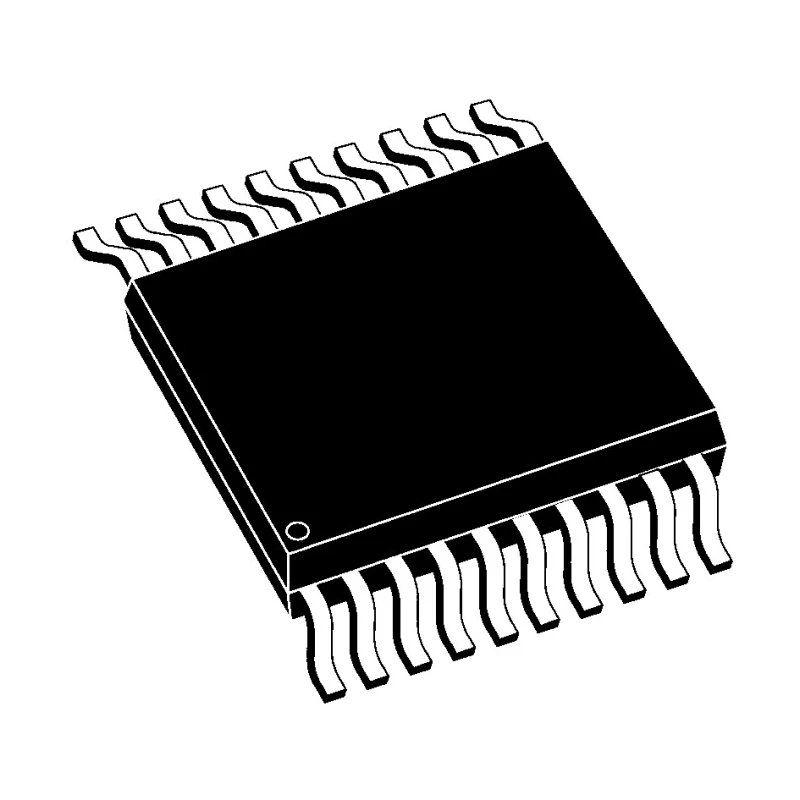

Microchip 8-bit PIC Microcontroller PIC16F628-20/SS, 20 MHz CPU, 3.5 KB Flash Memory, 20-Pin SSOP PIC16F628-20/SS

Microchip PIC16F628-20/SS is a highly versatile 8-bit microcontroller built on Microchip's renowned PIC architecture. Featuring a maximum CPU speed of 20 MHz, this microcontroller is suitable for a wide range of embedded system applications requiring efficient control and processing capabilities.

The device offers 3.5 KB of FLASH program memory paired with 224 bits of RAM, allowing designers to develop compact and powerful firmware with reliable non-volatile storage. With 16 programmable I/O pins, the PIC16F628-20/SS can interface with multiple peripherals and external devices, making it adaptable for custom input/output control schemes.

Its integrated USART interface facilitates serial communication, enabling easy data transfer and connectivity with other processors or serial devices. The microcontroller also incorporates two analog comparators for analog signal monitoring and three timers (two 8-bit and one 16-bit) for precise timing, pulse width modulation, and capture-compare functionalities.

The power operating range is between 3 V to 5.5 V, with a maximum power dissipation of 800 mW, ensuring compatibility with various power supply setups and low power consumption. The 20-pin SSOP surface-mount package offers a compact footprint with dimensions of 7.34 mm length by 5.38 mm width and 1.83 mm height, suitable for dense PCB layouts in industrial, commercial, and consumer electronics.

Additional features include hardware stack depth of 8 levels, power-on reset, brown-out reset, watchdog timer, power-up timer, and in-circuit serial programming (ICSP) support for convenient firmware updates and debugging.

This microcontroller supports Microchip’s mid-range PIC core with a RISC instruction set architecture comprising 35 instructions optimized for efficient code execution and fast response times.

Implements Microchip's mid-range 8-bit PIC architecture for versatile control applications. Operates up to 20 MHz maximum clock frequency with 16 programmable input/output pins. Integrates 3.5 KB of program memory using FLASH technology and 224 bits of RAM.

Supports USART interface for serial communication capabilities. Equipped with two analog comparators and three built-in timers for advanced timing and control. Provides operating voltage range from 3 V minimum to 5.5 V maximum and 800 mW power dissipation.

Compact SSOP package dimensions: 7.34 mm length, 5.38 mm width, and 1.83 mm height. Designed for robust industrial, embedded, and automation applications.

This Microchip PIC microcontroller series is widely used in industrial controls, home automation, consumer electronics, automotive electronics, and measurement systems, providing a reliable solution for embedded systems development. Explore the range of Microchip Microcontrollers on EnvMart to find suitable devices for your design needs.
