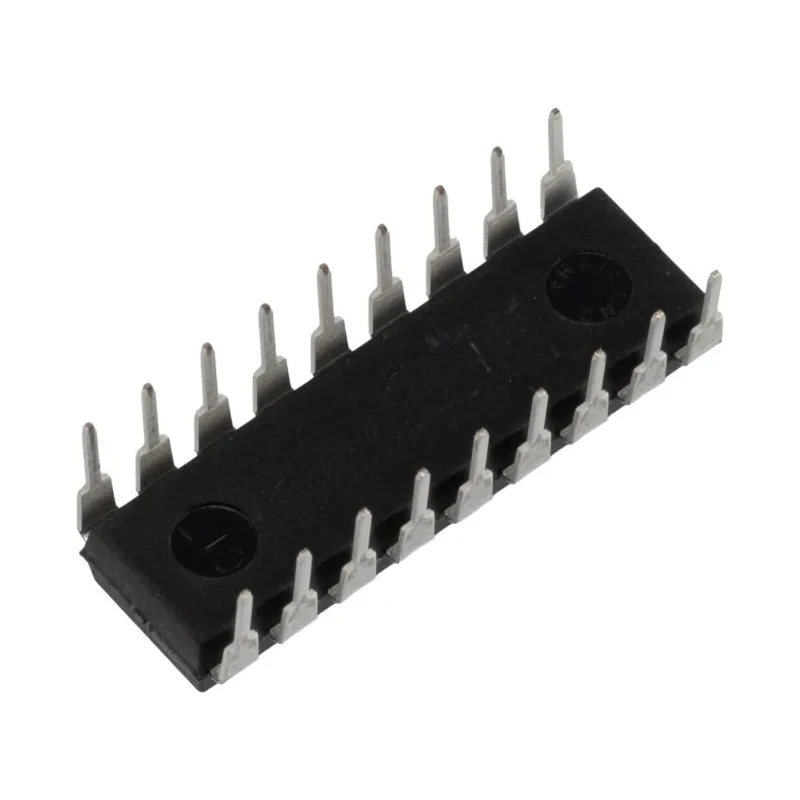

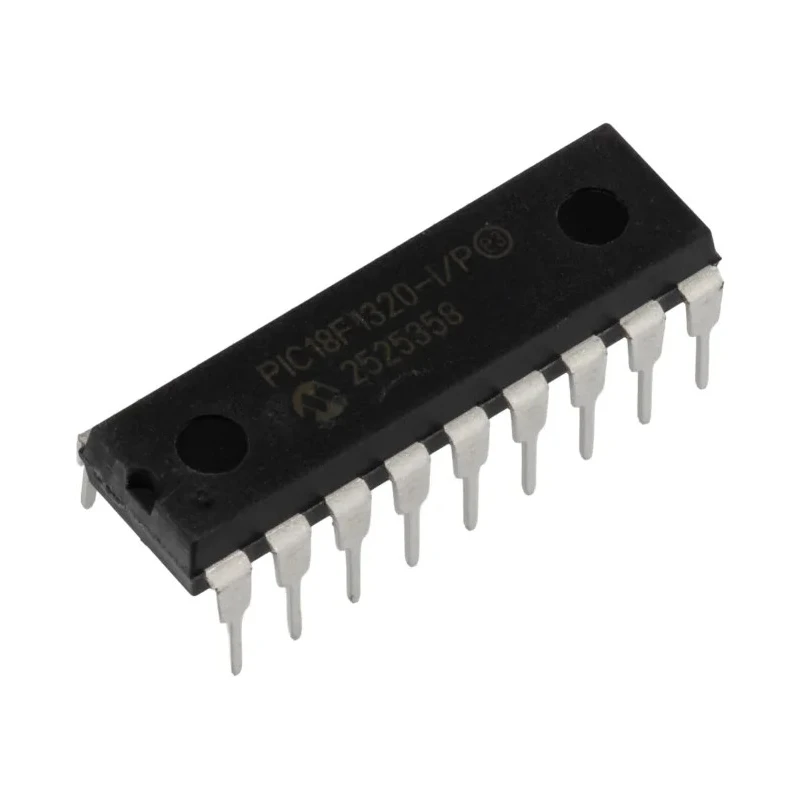

Microchip PIC18F 8 bit PIC18F Microcontroller 40 MHz 8 kB FLASH 256 B RAM 18-Pin PDIP PIC18F1320-I/P

Microchip PIC18F1320-I/P is a robust 8-bit PIC microcontroller featuring high-speed 40 MHz operation and 8 kB FLASH memory alongside 256 bytes of RAM. This microcontroller uses a Reduced Instruction Set Computing (RISC) architecture, ensuring efficient processing for embedded control applications.

This model is packaged in an 18-pin Plastic Dual In-line Package (PDIP) suited for through-hole mounting, facilitating prototyping and soldering tasks. Its 16 programmable I/Os allow diverse interfacing options with sensors, actuators, and communication modules.

With a supply voltage ranging between 2 V and 5.5 V, the PIC18F1320-I/P supports a wide array of power environments. It offers 7 analog-to-digital converter (ADC) channels with 10-bit resolution, providing accurate analog signal conversion for instrumentation and control. The Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART) interface enables reliable serial communication.

This microcontroller operates across a broad temperature span from -40°C to 85°C, making it suitable for industrial, automotive, and agricultural environments requiring robustness and reliability under varied conditions. The device has a maximum power dissipation of 1 W, ensuring thermal stability during operation.

Compliance with RoHS directives ensures environmentally responsible manufacturing and usage. These characteristics make the PIC18F1320-I/P ideal for use in embedded systems for industrial automation, consumer electronics, and prototyping in electronics labs.

8-bit PIC microcontroller with RISC architecture for efficient performance. Operates at a maximum clock frequency of 40 MHz, enabling fast processing. 8 kB of program memory (FLASH) and 256 bytes of RAM for embedded applications.

Features 16 programmable input/output pins to interface with peripherals. Includes 7 ADC channels with 10-bit resolution for analog signal processing. Supports EUSART interface for serial communication. Operating voltage range from 2 V to 5.5 V for flexible deployment.

Wide operating temperature range from -40°C to 85°C for industrial use. Comes in a through-hole 18-pin PDIP package for easy prototyping and assembly. Power dissipation limited to 1 W to maintain thermal efficiency. Complies with RoHS standards for environmental safety.
