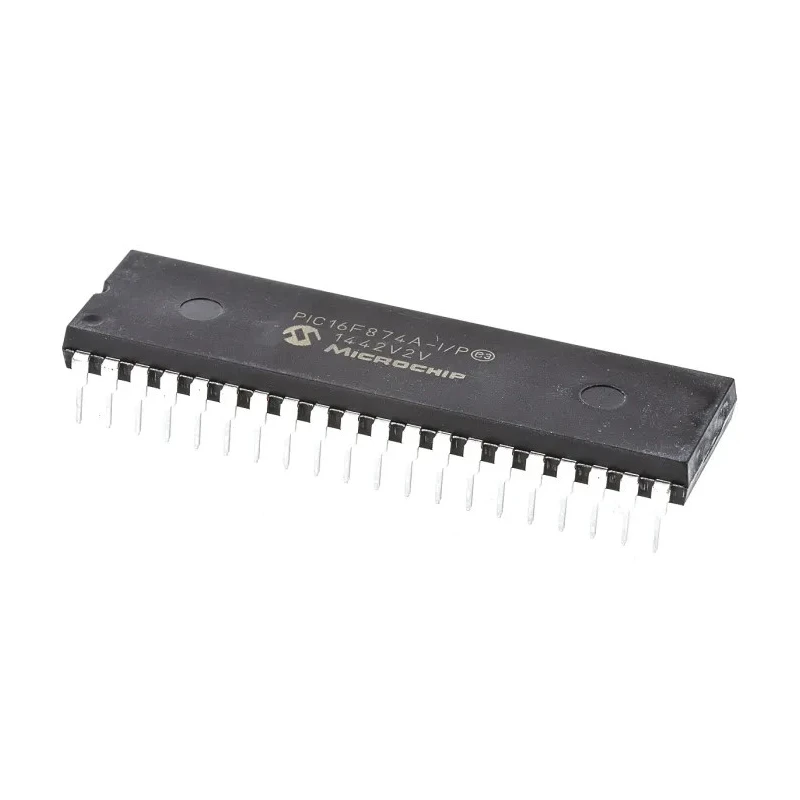

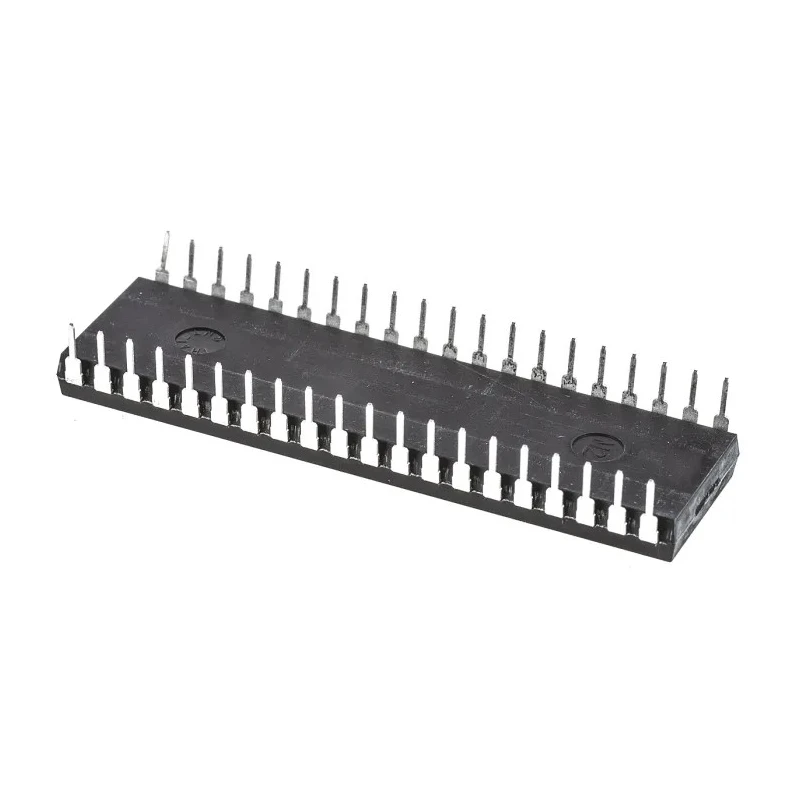

Microchip 8-bit PIC Microcontroller PIC16F874A-I/P 20 MHz 7.2 kB 128kB FLASH 40-Pin PDIP

Microchip PIC16F874A-I/P is a high-performance 8-bit microcontroller based on RISC architecture, operating at a maximum clock frequency of 20 MHz. This device features a substantial 7.2 kB FLASH program memory and 192 bits of RAM, suitable for various embedded control applications.

Equipped with 33 programmable I/O pins and multiple onboard peripherals including 8 channels of 10-bit ADCs and 2 analogue comparators, it supports complex interfacing requirements. It integrates 3 timers, enabling precise timing and scheduling in embedded systems.

The microcontroller is packaged in a 40-pin PDIP format designed for through-hole mounting, facilitating straightforward PCB assembly and prototyping. It operates reliably over a wide voltage range from 2 V to 5.5 V and a temperature range spanning industrial standards of -40°C to +85°C. Maximum power dissipation is rated at 1 Watt.

This microcontroller is often employed in commercial, industrial, and educational electronics projects requiring efficient processing, robust performance, and versatility. This 8-bit RISC microcontroller provides 7.2 kB FLASH memory and 192-bit RAM.

Maximum clock frequency is 20 MHz for responsive computation. 33 programmable I/O pins support various interfacing needs. Includes 8 channel 10-bit ADC and 2 analogue comparators. Three timers enable precise timing functions.

Operates at supply voltages between 2 V and 5.5 V with 1W power dissipation. 40-pin PDIP package suitable for through-hole mounting. Operating temperature range from -40°C to 85°C ensures industrial applicability.

This product suits embedded system design in industrial automation, instrumentation, electronics education, and prototyping. Explore more Microcontrollers and related components in electronics sections on EnvMart.
