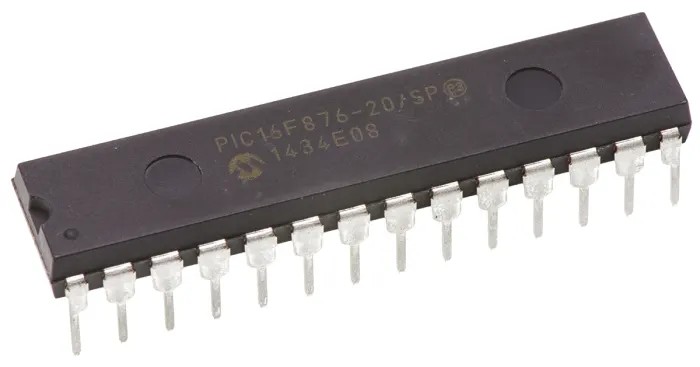

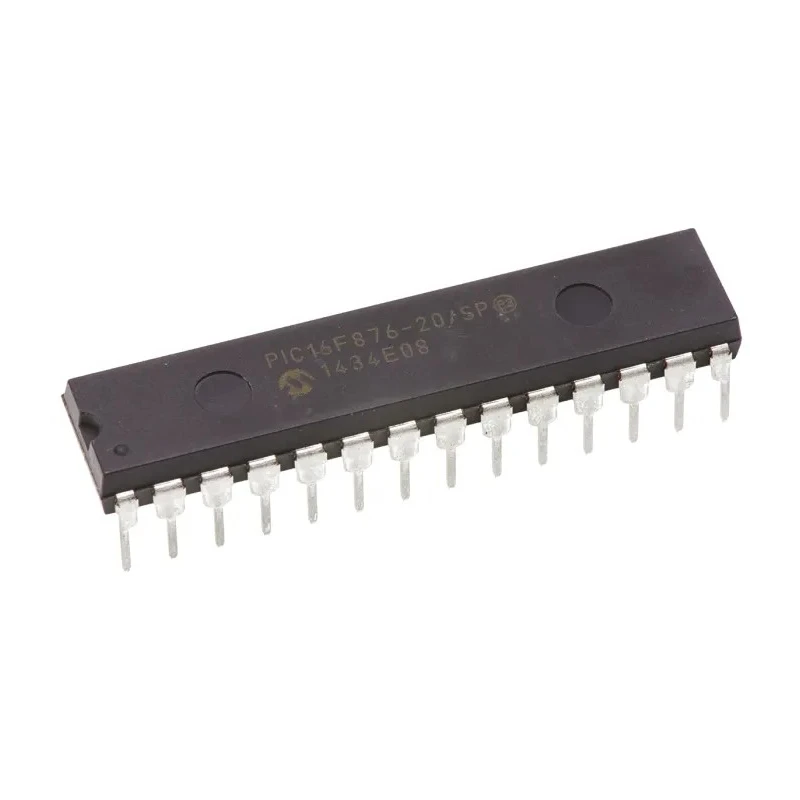

Microchip 8-Bit PIC16F Microcontroller 20 MHz 14kB FLASH 28-Pin SPDIP PIC16F876-20/SP

Microchip PIC16F876-20/SP is an 8-bit PIC microcontroller designed using Microchip's PIC architecture, delivering reliable performance at a maximum clock frequency of 20 MHz. Suitable for embedded control applications, it comes in a 28-Pin SPDIP package with through-hole mount type, making it facile for prototyping and integration into electronic circuits.

This microcontroller features a 14kB FLASH program memory, 368 bits RAM, and includes five 10-bit ADC channels for precise analog to digital conversion essential in sensor interfacing. It offers 22 programmable I/O pins allowing flexible peripheral connectivity.

Advanced peripherals include two 8-bit timers, one 16-bit timer, synchronous serial port supporting SPI and I2C protocols, Universal Synchronous Asynchronous Receiver Transmitter (USART), and Parallel Slave Port (PSP) available in select models within the PIC16F family. The part also supports In-Circuit Serial Programming (ICSP) and In-Circuit Debug (ICD) enhancing firmware development and debugging.

Operating voltage ranges from 2V to a maximum of 5.5V, with a maximum power dissipation of 1W, suitable for industrial and commercial embedded systems. The device operates reliably in temperatures ranging from 0°C to 70°C, consistent with standard commercial grade specifications.

The PIC16F876-20/SP device brings efficient RISC architecture with an 8-level deep hardware stack and supports 35 instructions, facilitating compact and efficient code execution. Its compact size (35.18mm x 7.49mm x 3.43mm) ensures easy mounting on printed circuit boards.

Based on reliable PIC16F series 8-bit microcontroller architecture. 20 MHz maximum CPU speed with 35 instructions set. 22 programmable input/output pins allow versatile interfacing. Includes 5 channels of 10-bit ADCs for accurate analog inputs.

Three timers to manage multiple timing tasks. Communication via USART, SPI, I2C, and parallel slave port protocols. Supports In-Circuit Serial Programming and Debug for streamlined development. Operating voltage between 2V and 5.5V with 1W max power dissipation.

Industrial standard temperature range from 0 to 70°C. Compact 28-Pin SPDIP package for easy through-hole mounting.

This microcontroller is ideal for industrial automation, control systems, instrumentation, and embedded electronic applications. It offers programmers a flexible, powerful, and proven device optimized for cost-effective full-featured solutions. Browse other Microchip PIC series microcontrollers and Microcontroller accessories at EnvMart.
