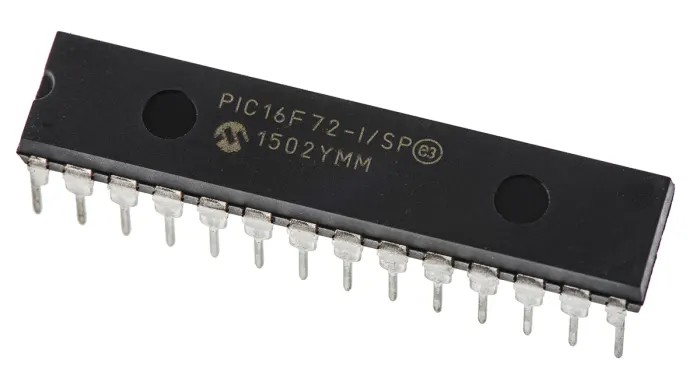

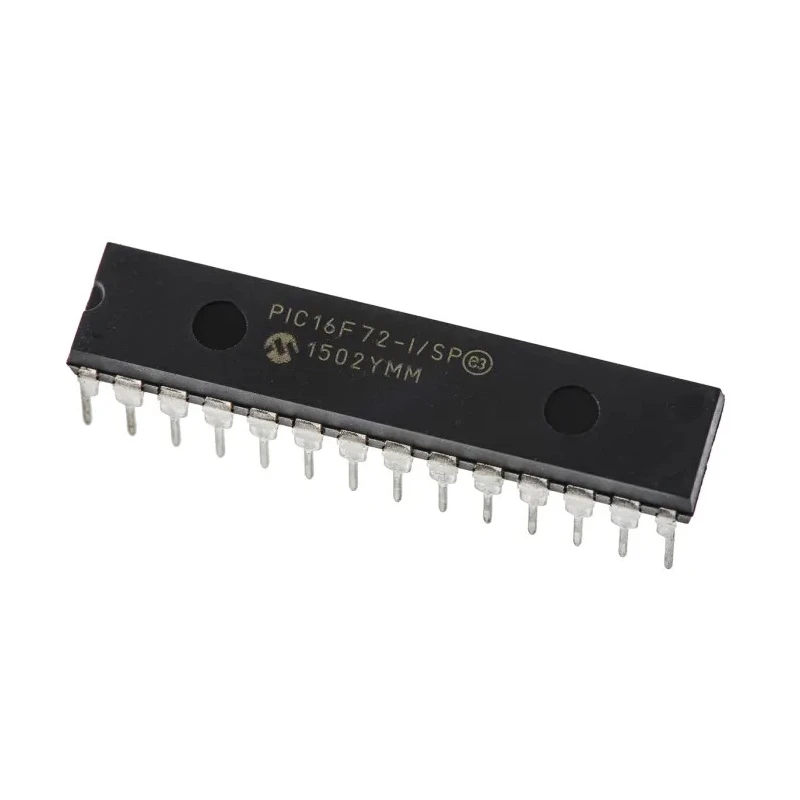

Microchip 8-bit PIC Microcontroller, 20 MHz Clock, 3.5 kB FLASH, 128 bit RAM, 28-Pin SPDIP PIC16F72-I/SP

Microchip PIC16F72-I/SP is a high-performance 8-bit PIC Microcontroller designed to meet diverse embedded system requirements. Operating at a maximum clock frequency of 20 MHz, it features a RISC architecture with an efficient instruction set of 35 commands. The device integrates 3.5 kB of FLASH program memory and 128 bit RAM facilitating compact and powerful application deployment.

This microcontroller is housed in a 28-pin SPDIP package and uses through-hole mount technology, measuring 35.56 mm in length, 7.49 mm in width, and 3.81 mm high, making it suitable for both prototyping and production environments. It supports 22 programmable input/output pins, allowing extensive interfacing possibilities for industrial control, data acquisition, and communication subsystems.

The integrated peripherals include a 5-channel 8-bit ADC for precise analog signal conversion, Capture/Compare/PWM module for motor control and signal modulation, and three timers (two 8-bit and one 16-bit) for timing and counting operations. The microcontroller also offers essential power management safeguards such as Power-On Reset, Power-Up Timer, Brown-Out Reset, and a Watchdog Timer to enhance operational stability.

Robustness is ensured through an operating temperature range from -40°C to 85°C, making it suitable for harsh industrial and outdoor applications. The device accepts voltages from 2 V minimum to 5.5 V maximum, supporting a wide variety of power supply conditions found in embedded systems.

The FLASH memory type supports In-Circuit Serial Programming, enabling easy firmware updates and customizations without removal from the hardware setup. This flexibility is ideal for iterative product development and field maintenance.

The PIC16F72 series is widely utilized in applications such as industrial automation, medical devices, consumer electronics, HVAC control, and laboratory instruments, delivering reliable performance and low power consumption.

Equipped with 22 programmable I/O pins providing versatile interfacing options. Supports 5 channel 8-bit analog to digital conversion facilitating precise signal processing. Includes three timers: two 8-bit and one 16-bit for advanced timing control applications.

Features power management functions such as Power-On Reset, Power-Up Timer, and Brown-Out Reset ensuring reliable startup. Wide operating temperature range from -40°C to 85°C for robust industrial and commercial use. Utilizes RISC architecture with 35 instruction set enabling efficient computation at up to 5 MIPS.

Mount type is through-hole with a 28-pin SPDIP package measuring 35.56 mm length, 7.49 mm width, and 3.81 mm height. Program memory type is FLASH providing flexible in-circuit serial programming (ICSP). Rated for a maximum supply voltage of 5.5 V and minimum supply voltage of 2 V ensuring compatibility with various power systems.

Ideal for embedded systems within industrial automation, consumer electronics, HVAC controllers, and laboratory instrumentation. Explore more Microchip Microcontrollers and embedded solutions on EnvMart for dependable and advanced electronic development products.
