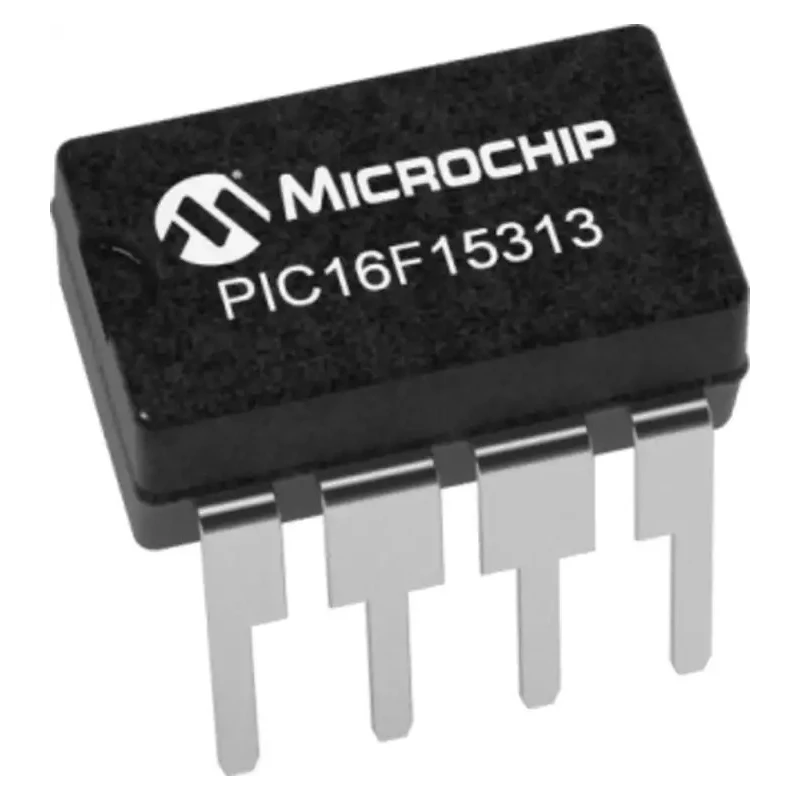

Microchip 8-Bit PIC Microcontroller, 32 MHz, 3.5kB FLASH, 8-Pin PDIP PIC16F15313-I/P

Microchip PIC16F15313-I/P is an 8-bit PIC microcontroller designed for embedded applications requiring reliable performance and low power consumption. Operating at a maximum clock frequency of 32 MHz, it integrates 3.5kB of FLASH program memory with self-read and write features and 256kB of SRAM to manage data efficiently. The device supports multiple serial communication protocols including EUSART, I2C, and SPI which enhance its compatibility and flexibility in various electronic designs.

This microcontroller comes in a through-hole mount 8-pin PDIP package, with compact dimensions of 10.16mm in length and 7.11mm in width, making it suitable for integration into space-constrained boards. It runs on a supply voltage range of 1.8V to 5.5V and dissipates a maximum power of 800mW, balancing performance with energy efficiency.

Further features include 6 programmable I/O pins, one 5-bit DAC, and five 10-bit ADCs plus one analogue comparator, enhancing its functionality for sensing and control tasks. It offers advanced features like 2 timers, Peripheral Module Disable, Peripheral Pin Select, and a window watchdog timer that improve system robustness and manageability.

Designed to operate across a wide temperature range of -40°C to 85°C, it is suitable for industrial, household appliance, and embedded system applications. The device conforms to RoHS standards, ensuring it meets environmental directives.

32 MHz maximum clock frequency supports high-speed operations. 3.5kB flash program memory with self-read/write capability. 256kB SRAM for efficient data handling. Supports EUSART, I2C, and SPI interface types for versatile communication.

Operates at supply voltage ranging from 1.8V to 5.5V. Features 6 programmable I/O pins and one 5-bit DAC. Includes five 10-bit ADCs and one analogue comparator. Compliant with RoHS standards ensuring environmental safety.

Extends operating temperature range from -40°C to 85°C for industrial applications. Compact 8-pin PDIP package dimensions with 10.16mm length and 7.11mm width.

This Microchip microcontroller is ideal for use in embedded designs, industrial electronic control systems, and household appliances requiring efficient processing and multiple analog/digital functions. Explore a wide range of Microcontrollers and semiconductor devices on EnvMart for your next project.
