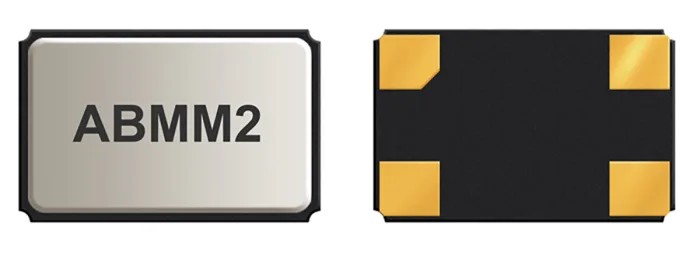

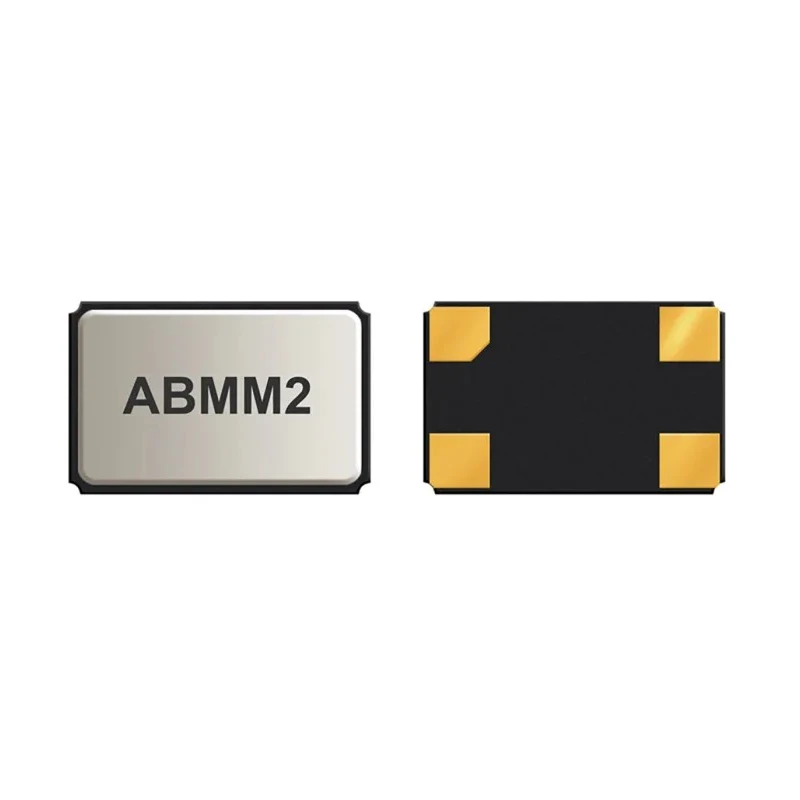

Abracon 25 MHz Crystal Unit ±20 ppm Surface Mount 4-Pin 1.2 mm Height 6 mm Length 3.5 mm Width ABMM2-25.000MHZ-E2-T

Free Delivery in India | Lowest Global Shipping Charges

Abracon 25 MHz Crystal Unit ±20 ppm Surface Mount 4-Pin 1.2 mm Height 6 mm Length 3.5 mm Width ABMM2-25.000MHZ-E2-T

Name: Abracon 25 MHz Crystal Unit ±20 ppm Surface Mount 4-Pin 1.2 mm Height 6 mm Length 3.5 mm Width ABMM2-25.000MHZ-E2-T
Brand: Abracon
SKU: 332430
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand Abracon Condition New

Specifications

Country of Origin	China
Brand	Abracon
Height	1.2mm
Length	6mm
Model	ABMM2-25.000MHZ-E2-T
Packaging	Tape & Reel
Width	3.5mm
Mount Type	Surface
Series	ABmm²
Maximum Operating Temperature	70°C
Package Type	Surface Mount
Minimum Operating Temperature	-20°C
Standards/Approvals	REACH, RoHS
Pin Count	4
Standard Frequency	25MHz
Load Capacitance	18pF
Series Resistance	50Ω

Key Features

This crystal unit features a low height of 1.2 mm and compact dimensions of 6 mm length and 3.5 mm width.
It operates reliably between -20°C and 70°C, suitable for a range of temperature conditions.
The package is sealed ceramic ensuring high reliability and stability over time.
Series resistance is rated at 50 Ω, supporting accurate frequency control in electronic circuits.
Designed for surface mount applications with tape and reel packaging for automated assembly.
Certified to meet REACH and RoHS environmental standards.
Ideal for use in computers, modems, microprocessors, communication devices, and test equipment.
Manufactured to series ABmm2 specifications, not compliant with automotive standards.

Product Description

Abracon ABMM2-25.000MHZ-E2-T 25 MHz Crystal Unit is a surface mount device designed for precise frequency control within ±20 ppm tolerance and 18 pF load capacitance. This model features a low profile height of 1.2 mm, a length of 6 mm, and a width of 3.5 mm, making it suitable for compact electronic assemblies.

Engineered with a seam-sealed ceramic package, the crystal unit ensures high reliability and long-term stability. It functions effectively in a wide temperature range from -20°C minimum to 70°C maximum operating temperature, suitable for industrial, communication, computing, and test equipment applications.

The unit’s series resistance is 50 Ω, promoting efficient signal clarity and frequency accuracy. It is packaged in tape and reel format for seamless integration into automated surface mount technology (SMT) manufacturing processes.

This crystal unit conforms to REACH and RoHS standards, demonstrating environmental compliance. Its 4-pin surface mount design facilitates easy placement on printed circuit boards.

This crystal unit features a low height of 1.2 mm and compact dimensions of 6 mm length and 3.5 mm width. It operates reliably between -20°C and 70°C, suitable for a range of temperature conditions. The package is sealed ceramic ensuring high reliability and stability over time.

Series resistance is rated at 50 Ω, supporting accurate frequency control in electronic circuits. Designed for surface mount applications with tape and reel packaging for automated assembly. Certified to meet REACH and RoHS environmental standards.

Ideal for use in computers, modems, microprocessors, communication devices, and test equipment. Manufactured to series ABmm2 specifications, not compliant with automotive standards.

Suitable for industrial, laboratory, electronics manufacturing, telecommunications, and computing environments requiring stable and reliable timing components. This crystal unit is a key component in frequency generation and timing circuits.
